Supermicro Supero X9SCM-F User Manual

2-18
X9SCM/X9SCM-F/X9SCL/X9SCL-F/X9SCL+-F User’s Manual

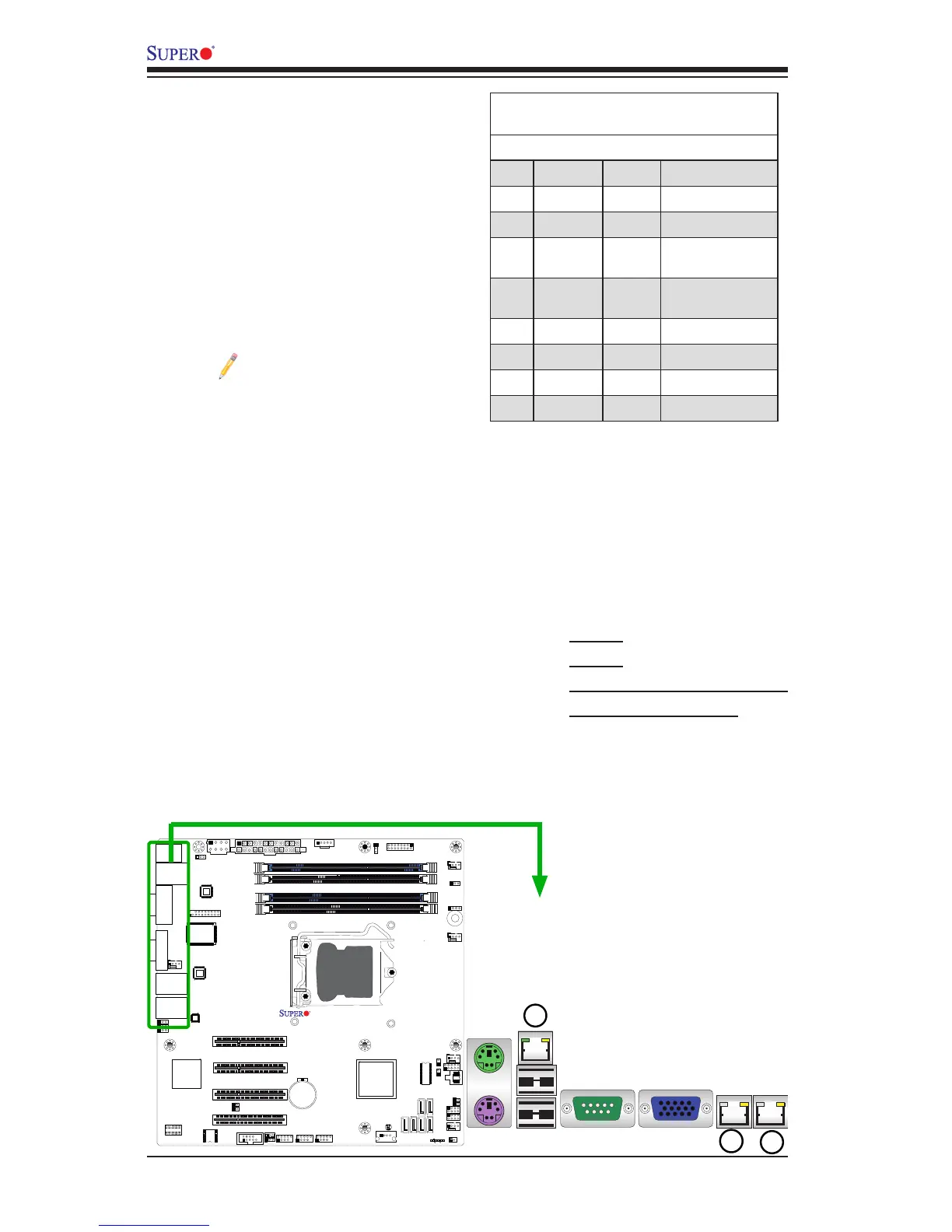

Ethernet Ports
Two Ethernet ports (LAN1/LAN2) are
located next to the VGA port on the
I/O Backpanel. In addition, an IPMI
Dedicated LAN is also located above
USB 0/1 ports on the X9SCM-F/
X9SCL-F/X9SCL+-F to provide a
dedicated network connection for
IPMI 2.0. These ports accept RJ45
type cables.
Notes
1. The IPMI Dedicated LAN
is for the X9SCM-F/X9SCL-
F/X9SCL+-F only.
2. Please refer to the LED
Indicator Section for LAN
LED information.
1. LAN1
2. LAN2
3.IPMI Dedicated LAN (X9SCM-F/
X9SCL-F/X9SCL+-F only)
1
2
X9SCM/X9SCL(-F) Rev.1.0
3
LAN Ports
Pin Denition
Pin# Denition
1 TD0- 10 SGND
2 TD0+ 11 P3V3SB
3 TD1- 12 Act LED
4 TD1+ 13 Link 100 LED
(Green, +3V3SB)
5 TD2- 14 Link 1000 LED
(Yellow, +3V3SB)
6 TD2+ 15 Ground
7 TD3- 16 Ground
8 TD3+ 17 Ground
9 P2V5SB 88 Ground
(NC: No Connection)
