Supermicro Supero X9SCM-F User Manual

Chapter 2: Installation
2-37
J31
JTPM
J29
JL1
JI2C2
JI2C1
T-SGPIO1
JWF1
JPW2
JWOL
JSPK
JPI2C
JPW1
COM1
SPKR1
JBT1
LE2
JWD
JLED1
JPL2
JPG1
JPB
JPL1
JPUSB1
FAN1
FANA
FAN3
FAN2
DDR3 1066/1333 UDIMM required
USB4/5
USB 12/13
_LAN
IPMI
COM2
VGA
USB11
DIMM2B
DIMM2A
USB2/3
Slot6 PCI-E 2.0 x8
JF1
I-SATA2
Slot4 PCI-E 2.0 x4 on x8
KB/MOUSE
DIMM1B
DIMM1A
CPU
Slot7 PCI-E 2.0 x8
BIOS
B1
Battery
PHY
BMC
CTRL
82574L
S I/O
T-SGPIO2
FP CTRL
Cougar Point
Standard PCH
Memory Chip
X9SCM/X9SCL(-F) Rev.1.0
Fan4
PHY
82579
PHY
(For X9SCM only)
(*I-SATA 0/1:
X9SCL: SATA2, X9SCM: SATA3)
Socket H2
LGA 1155
CPU
I-SATA4
I-SATA5
I-SATA3
I-SATA1
I-SATA0
Slot5 PCI-E 2.0 x4 on x8
USB/0/1
LAN1
LAN2
LE7
JPME1
JPME2
LE4
B

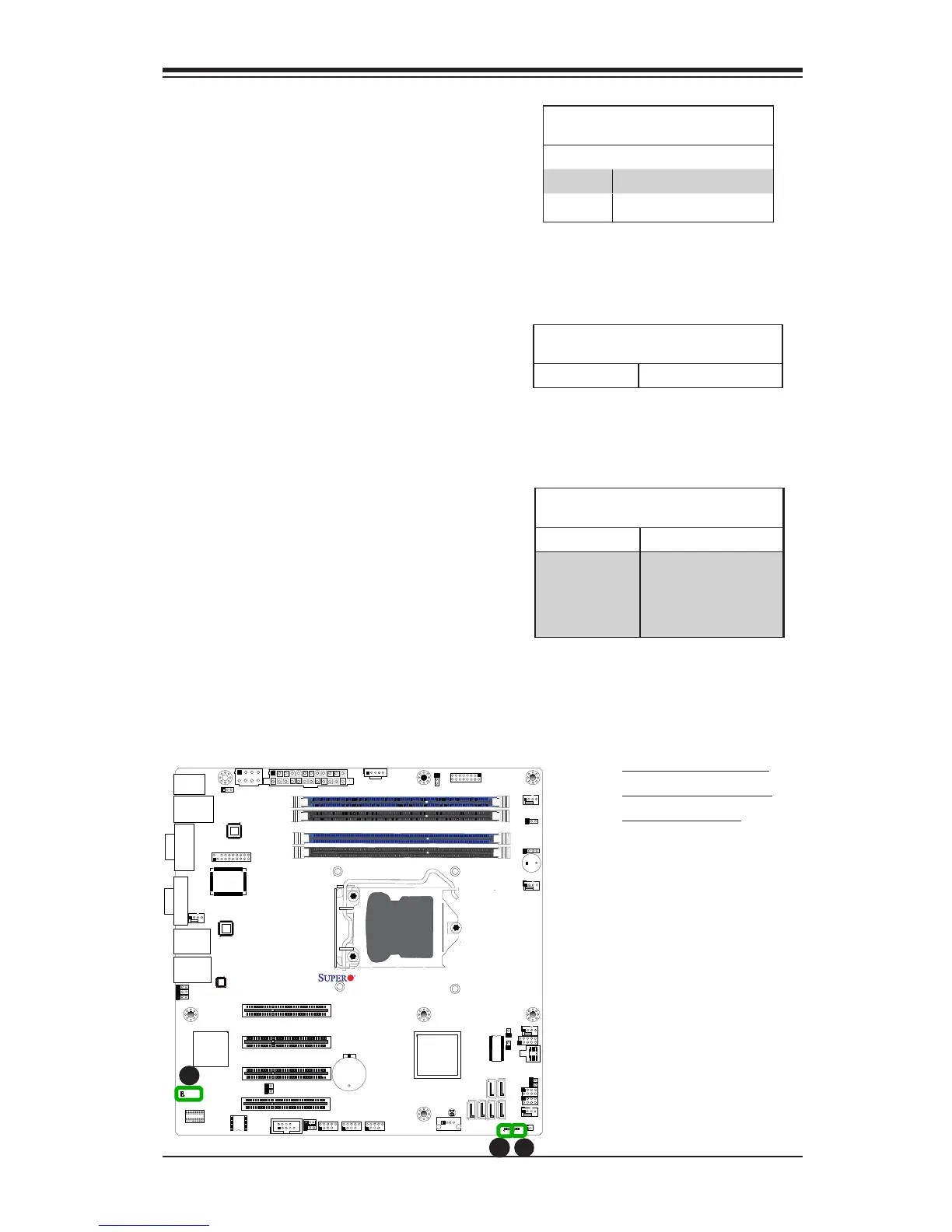

Onboard PWR LED Indicator
LED Status
Status Denition
Off System Off
On System On (running)
Onboard Power LED
An Onboard Power LED is located
at LE2 on the motherboard. A lit
LE2 indicates that the motherboard
is either booting, or it is up and run-
ning. See the layout below for the
LED location.
A. Onboard PWR LED
B. IPMI Heartbeat LED
C. Power Standby
IPMI Heartbeat LED
An IPMI Heartbeat LED is located at
LE7. When LE7 blinks, the IPMI functions
properly. Refer to the table on the right
for details. Also see the layout below for
the LED location.
IPMI Heartbeat LED Indicator (LE7)
LED Settings
Green: Blinking IPMI is Active
A
Power Standby LED
The Power Standby LED is located at
LE4. When the power supply is plugged
into an AC outlet, and the power sup-
ply hard switch is switched on, LE4 will
turn on indicating Power Standby mode.
Please make sure LE4 is off before per-
forming service on the motherboard.
Power Standby LED Indicator (LE4)
LED Settings
Green: Solid On Standby Power is On
Green: Off Standby Power is Off
(either the power sup-
ply hard switch is off or
system is unplugged,
or BOTH.)
C
