Chapter 2: Installation
2-5
3. Once it is aligned, carefully lower the CPU straight down into the socket. (Do
not drop the CPU on the socket. Do not move the CPU horizontally or verti-
cally.
4. Do not rub the CPU against the surface or against any pins of the socket to
avoid damaging the CPU or the socket.)
5. With the CPU inside the socket, inspect the four corners of the CPU to make
sure that the CPU is properly installed.

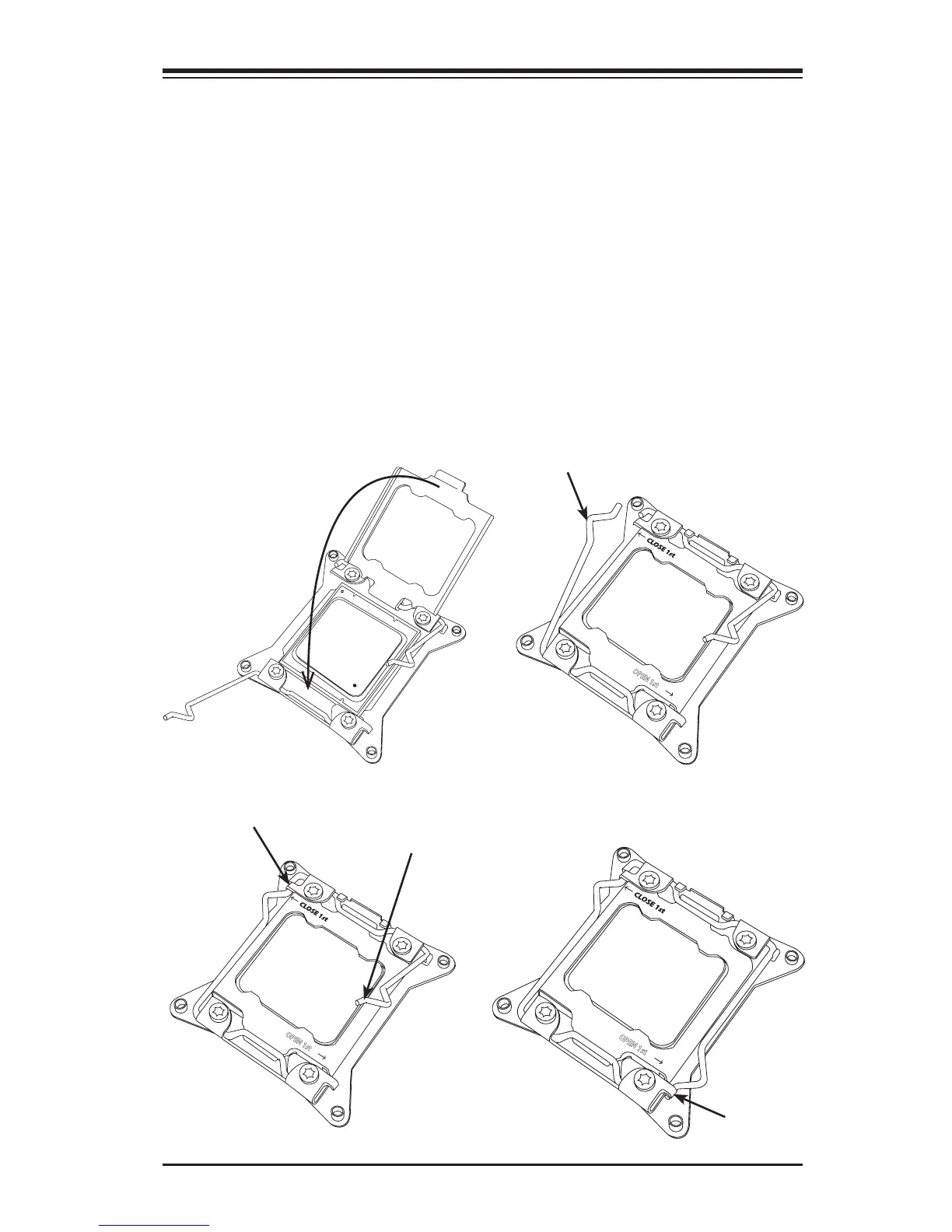

6. To close and lock the socket, close the load plate with the CPU. Lock the
'Close 1st' lever rst, then lock the 'Open 1st' lever second. Use your thumb
to gently push the load levers down to the lever locks.
OPEN 1st
OPEN 1st
OPEN 1st
Lever Lock
Lever Lock
Push down and lock
'Open 1st' lever
Push down and lock
'Close 1st' lever
Gently close
the load plate
1
2
3
4
To Next Page
