X9SRi/X9SRE Motherboard Series User’s Manual

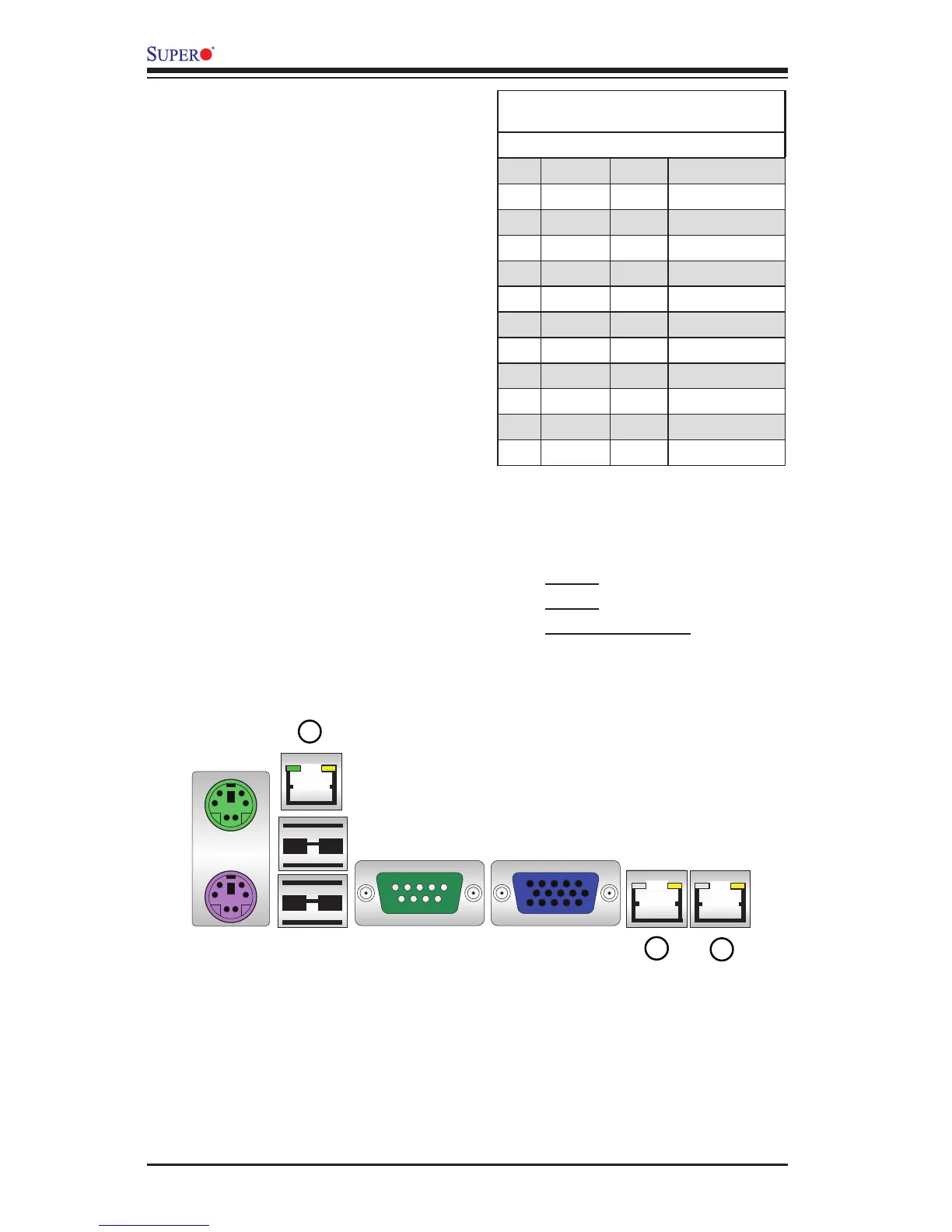

Ethernet Ports
Two Ethernet ports (LAN1/LAN2) are
located next to the VGA port on the
I/O Backpanel. In addition, an IPMI
Dedicated LAN port is also located
above USB 0/1 to provide a dedicated
network connection for IPMI 2.0 on
the X9SRi-3F and X9SRE-3F moth-
erboard.
LAN Ports
Pin Denition
Pin# Denition Pin# Denition
1 TRCT2 13 IETCT
2 TRD2+ 14 IET+
3 TRD2- 15 IET-
4 TRD3+
5 TRD3- 17 L1-COMMON
6 TRCT3 18 L1-GRE-
7 TRCT1 19 L2-YEL
8 TRD1+ 20 L2-COMMON
9 TRD1- 21 L2-GRE-
10 TRD4+ 22 CG1
11 TRD4- 23 CG2
12 TRCT4 24
(NC: No Connection)
1. LAN1
2. LAN2
3.IPMI Dedicated LAN
