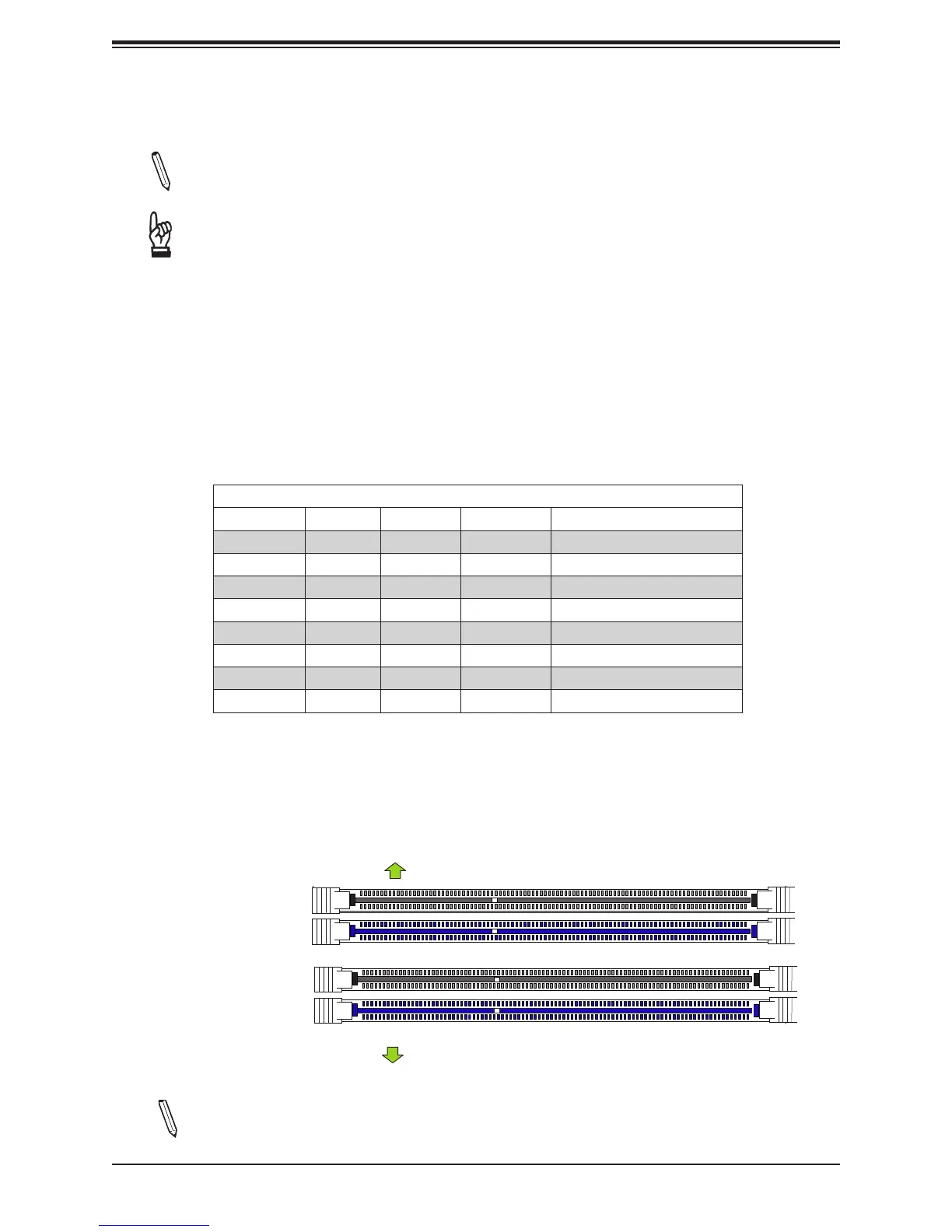

2.4 Memory Support and Installation
Note: Check the Supermicro website for recommended memory modules.
Important: Exercise extreme care when installing or removing DIMM modules to pre-
vent any possible damage.
Memory Support
The X11SSH-CTF/TF supports up to 64 GB of DDR4 ECC UDIMM 2133MHz memory in four
DIMM slots. Populating these DIMM modules with a pair of memory modules of the same
type and size will result in interleaved memory, which will improve memory performance.
Note: Be sure to use memory modules of the same type and speed on the motherboard.
Mixing of memory modules of different types and speeds is not allowed.
DIMM Module Population Conguration
For optimal memory performance, follow the table below when populating memory.
Recommended Population (Balanced)
DIMMA1 DIMMB1 DIMMA2 DIMMB2 Total System Memory
2GB 2GB 4GB
2GB 2GB 2GB 2GB 8GB
4GB 4GB 8GB
4GB 4GB 4GB 4GB 16GB
8GB 8GB 16GB
8GB 8GB 8GB 8GB 32GB
16GB 16GB 32GB
16GB 16GB 16GB 16GB 64GB
DIMMB2 (Blue Slot)
DIMMA2 (Blue Slot)
Towards the edge of the motherboard
Towards the CPU
DIMMA1
DIMMB1
DIMM Module Population Sequence
When installing memory modules, the DIMM slots must be populated in the following order:
DIMMB2, DIMMA2, then DIMMB1, DIMMA1. The blue slots must be populated rst.
