Chapter 2: Installation
2.9 LED Indicators
LAN1/2 LEDs
The Ethernet ports (located beside the VGA port) have two LEDs. On each port, one LED
indicates activity when ashing while the other LED may be green, amber or off to indicate
the speed of the connection.
LAN1/2 LED
(Connection Speed
Indicator)
LED Color Denition
Off 100 Mb/s
Amber 1 Gb/s
Green 10 Gb/s
Dedicated IPMI LAN LEDs
A dedicated IPMI LAN is also included on the motherboard. The amber LED on the right of
the IPMI LAN port indicates activity, while the green LED on the left indicates the speed of
the connection. See the table below for more information.
IPMI LAN LEDs
Color Status Denition
Off Off
No
Connection
Green:
Solid
Link/Speed
(Left)
100 Mb/s
Amber
Blinking
Activity
(Right)
Active
IPMI LAN
Activity LEDLink LED
LAN 1/LAN 2
IPMI LAN
(X8ST3-F)
DESIGNED IN USA
X11SSH-TF
REV:1.01
BAR CODE
SAS CODE
MEGERAC LICENSE
IPMI CODE
MAC CODE
PRESS FIT
Intel
PCH
LSI3008
(-CTF only)
X550
BT1
JSAS1
JSTBY1
LEDS1
J2
SP1
LE1
LEDBMC
LEDPWR
JPSAS1
JOH1
JL1
JPG1
JBR1
JVRM2
JVRM1
JPME2
JVR1
JPS1
JPB1
JI2C1
JI2C2
JWD1
JPTG1
JSD2
JSD1
FAN5
FANA
FAN3
FAN4
FAN1
FAN2
JUIDB1
JIPMB1
JPI2C1
JD1
JPWR2
I-SGPIO2
I-SGPIO1
I-SATA7
I-SATA6
I-SATA3
I-SATA2
I-SATA1
I-SATA0
JF1
JTPM1
JPWR1
I-SATA5
I-SATA4
MH8
J24
LE3
JBT1
JPCK1
DIMMB2
DIMMB1
DIMMA2
DIMMA1
USB8(3.0)
USB4/5
USB9/10(3.0)
USB2/3
CPU Socket LGA1151
PCH SLOT4 PCI-E 3.0 X2 (IN X4)
CPU SLOT6 PCI-E 3.0 X8
VGA
LAN2
LAN1
USB6/7
(3.0)
USB0/1
IPMI_LAN
COM2
COM1
1

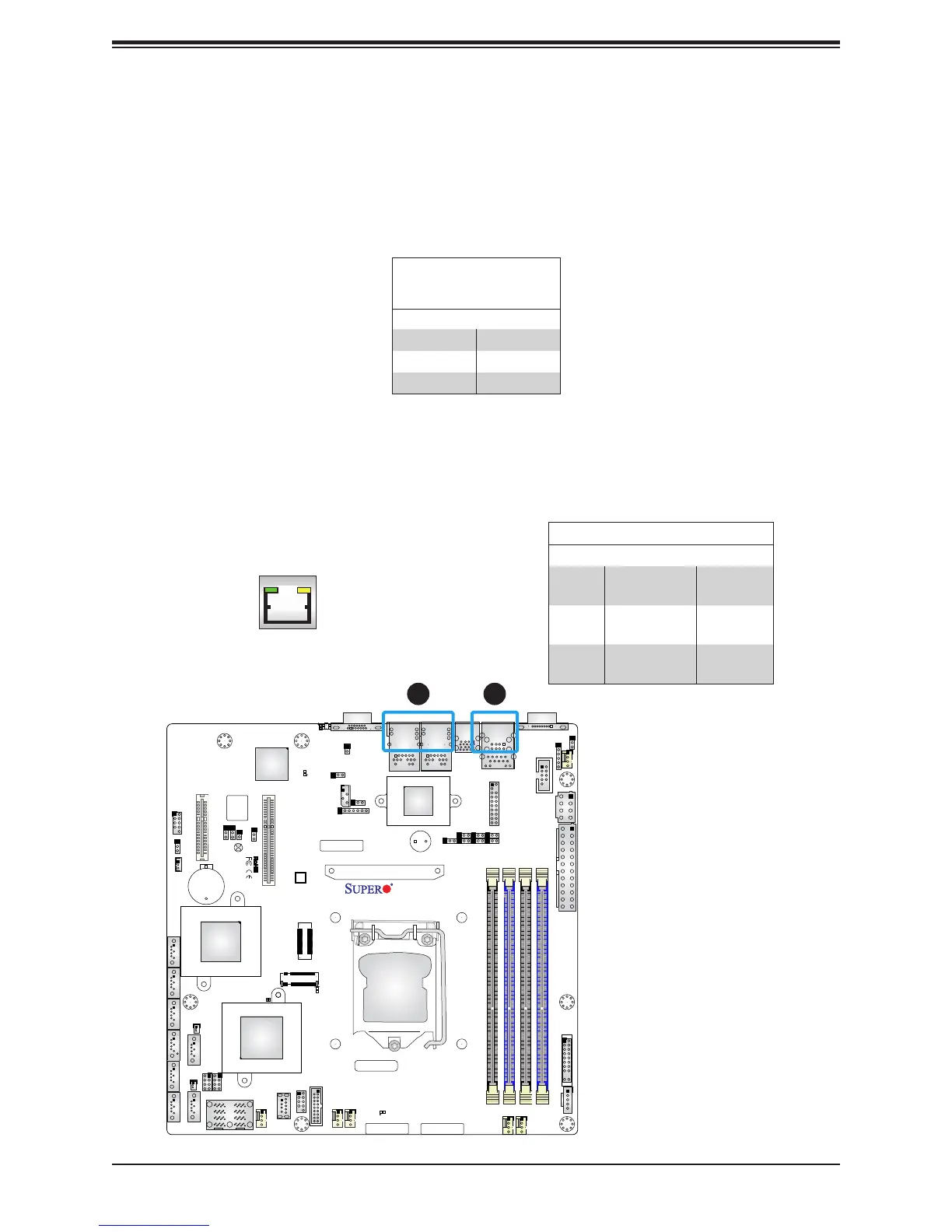

1. LAN 1/2 LED
2. IPMI-Dedicated LAN LED
2
