Supermicro X11SSH-CTF User Manual

18
X11SSH-CTF/TF User's Manual

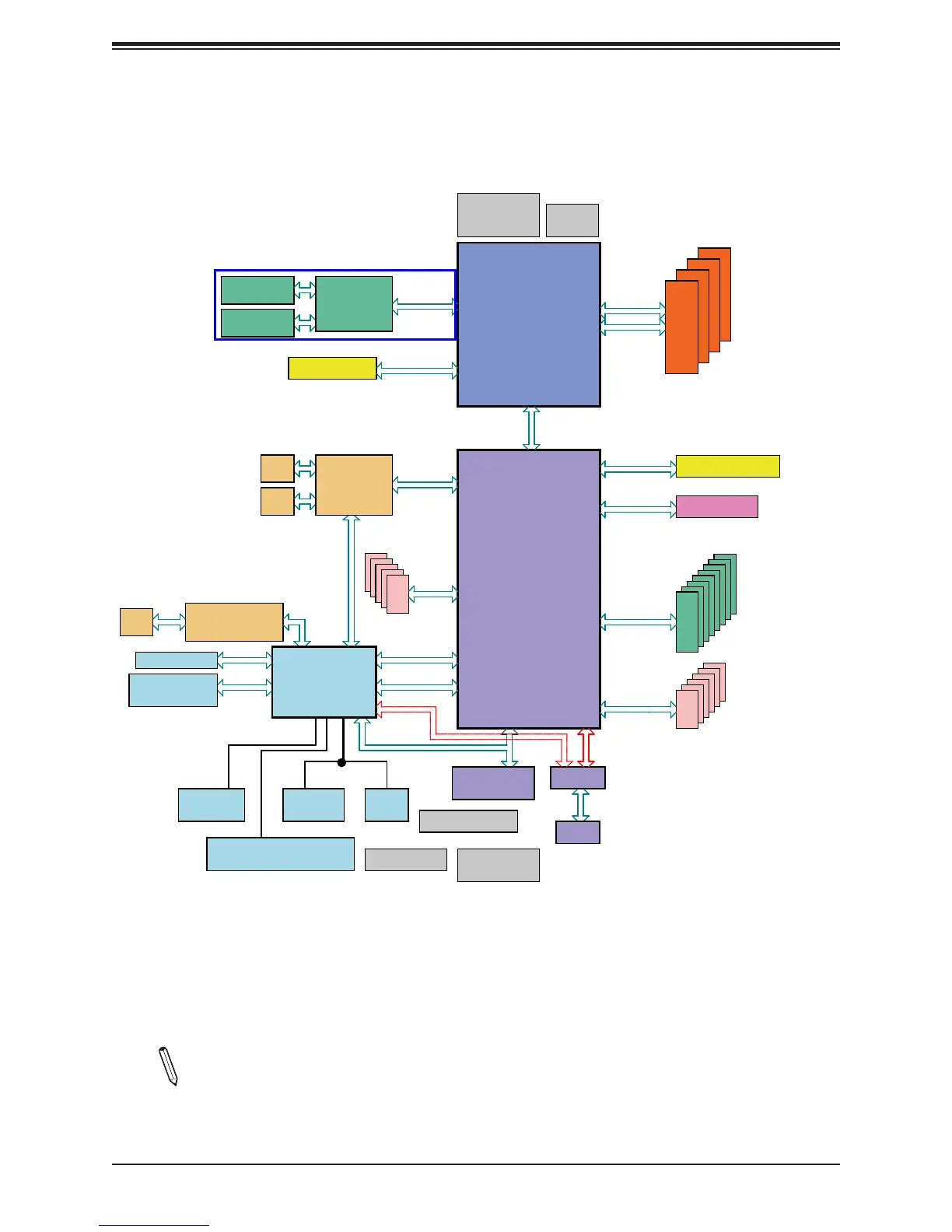

Note: This is a general block diagram and may not exactly represent the features on
your motherboard. See the previous pages for the actual specications of your moth-
erboard.
Figure 1-4.
System Block Diagram
SPI
LAN3
RGRMII
Debug Card
FRONT PANEL
SYSTEM POWER
CTRL
FAN SPEED
PCI-E X1 Gen2
USB 2.0
PCH C236
6.0 Gb/S
USB 2.0
LPC
USB
1
0
SATA
5
4
RTL8211E-VB-CG
3
2
RJ45
SPI
Temp Sensor
EMC1402-1 *2 at diff SMBUS
TPM HEADER
USB 3.0
USB
BIOS
SPI
AST2400
BMC
RMII/NCSI
COM1
Connector
COM2
Header
VGA CONN
BMC Boot Flash
DDR3
3 PHASE
for Vcore
80W
IMVP 8
DMI3 x4
DMI3
CPU
LGA1151
2133
DDRIV
PCIe3.0 x8SLOT6
PCI-E X4 Gen3
M.2 SSD
1
2
3
4
1
2
3
4
5
6
#A-0
#A-1
#B-0
#B-1
PCI-E X8 Gen3
PCI-E X4 Gen3
5
2 PHASE
GT
MUX
SPI
MINI SAS HD
MINI SAS HD
LSI SAS3008
PCI-E X8 Gen3
RJ45
RJ45
X550-AT2
LAN 10G
SLOT4PCIe3.0 x2 (IN x4)
PCI-E X2 Gen3
Available on the X11SSH-CTF
6
7

Supermicro X11SSH-CTF Specifications

General

Brand	Supermicro
Model	X11SSH-CTF
Category	Motherboard
Language	English

Summary

Chapter 2 Installation

2.1 Static-Sensitive Devices

Provides precautions for handling static-sensitive components to prevent damage.

2.2 Motherboard Installation

Guides on how to install the motherboard into the chassis, including tools and mounting holes.

2.3 Processor and Heatsink Installation

Step-by-step instructions for installing the CPU and heatsink.

2.4 Memory Support and Installation

Information on memory support, population configuration, and installation.

2.5 Rear I/O Ports

2.6 Front Control Panel

2.7 Connectors

2.8 Jumper Settings

Explains how to use jumpers and details specific jumper configurations.

2.9 LED Indicators

Chapter 3 Troubleshooting

3.1 Troubleshooting Procedures

Provides systematic steps to diagnose and resolve common system issues.

3.2 Technical Support Procedures

Outlines steps for contacting technical support and information to provide.

3.3 Frequently Asked Questions

Answers common questions regarding memory support and BIOS updates.

3.4 Battery Removal and Installation

Instructions for safely removing and installing the onboard CMOS battery.

Chapter 4 BIOS

4.2 Main Setup

4.3 Advanced Setup Configurations

Details various advanced BIOS settings for system configuration.

4.5 IPMI

4.6 Security

4.7 Boot

Appendix C Standardized Warning Statements

Battery Handling

Provides warnings and instructions for handling and replacing batteries.

Product Disposal

Information on the proper disposal of the product according to national laws.

Appendix D UEFI BIOS Recovery

D.2 Recovering the UEFI BIOS Image

D.3 Recovering the BIOS Block with a USB Device

Step-by-step guide to recovering the BIOS using a USB device.
