35
Chapter 2: Installation

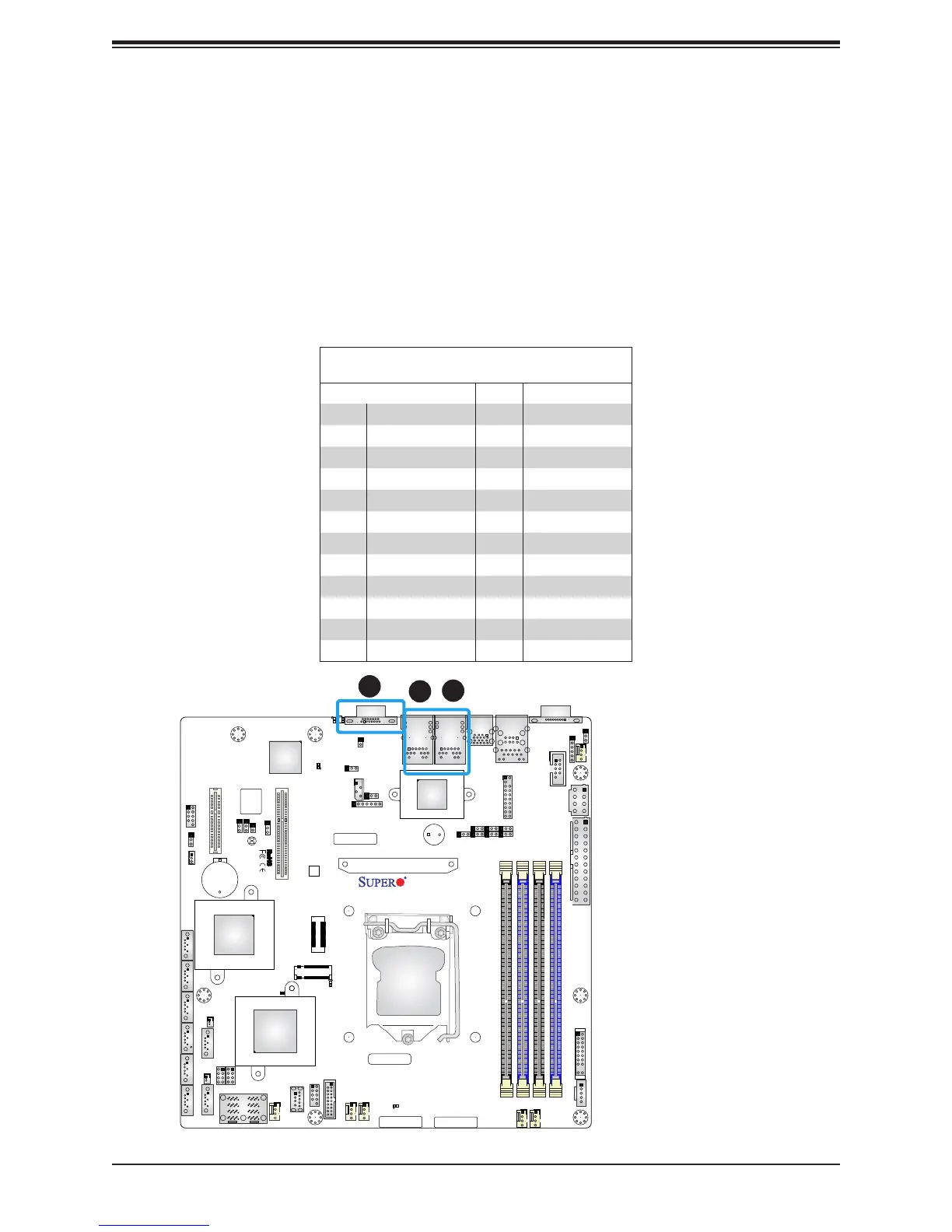

VGA Port
The onboard VGA port is located next to LAN Ports 1/2 on the I/O back panel. Use this
connection for VGA display.
LAN Ports
Two LAN ports (LAN1 and LAN2) are located on the I/O back panel. There is also a dedicated
IPMI LAN port on the I/O back panel. These ports accept RJ45 type cables. See the table
below for the pin denitions.
LAN Port
Pin Denition
Pin# Denition Pin# Denition
1 TRCT2 13 IETCT
2 TRD2+ 14 IET+
3 TRD2- 15 IET-
4 TRD3+ 16
5 TRD3- 17 L1-GRE-
6 TRCT3 18 L1-GRE+
7 TRCT1 19 L2-YEL-
8 TRD1+ 20 COMMON
9 TRD1- 21 L2-GRE-
10 TRD4+ 22 CG1
11 TRD4- 23 CG2
12 TRCT4
DESIGNED IN USA
X11SSH-TF
REV:1.01
BAR CODE
SAS CODE
MEGERAC
LICENSE
IPMI CODE
MAC CODE
PRESS FIT
Intel
PCH
LSI3008
(-CTF only)
X550
BT1
JSAS1
JSTBY1
LEDS1
J2
SP1
LE1
LEDBMC
LEDPWR
JPSAS1
JOH1
JL1
JPG1
JBR1
JVRM2
JVRM1
JPME2
JVR1
JPS1
JPB1
JI2C1
JI2C2
JWD1
JPTG1
JSD2
JSD1
FAN5
FANA
FAN3
FAN4
FAN1
FAN2
JUIDB1
JIPMB1
JPI2C1
JD1
JPWR2
I-SGPIO2
I-SGPIO1
I-SATA7
I-SATA6
I-SATA3
I-SATA2
I-SATA1
I-SATA0
JF1
JTPM1
JPWR1
I-SATA5
I-SATA4
MH8
J24
LE3
JBT1
JPCK1
DIMMB2
DIMMB1
DIMMA2
DIMMA1
USB8(3.0)
USB4/5
USB9/10(3.0)
USB2/3
CPU Socket LGA1151
PCH SLOT4 PCI-E 3.0 X2 (IN X4)
CPU SLOT6 PCI-E 3.0 X8
VGA
LAN2
LAN1
USB6/7
(3.0)
USB0/1
IPMI_LAN
COM2
COM1
1
2
3
1. VGA Port
2. LAN1
3. LAN2
