Front Panel USB 2.0
Header Pin Denitions
Pin# Denition Pin# Denition
1 +5V 2 +5V
3 USB_N 4 USB_N
5 USB_P 6 USB_P
7 Ground 8 Ground
9 Key 10 NC
Back Panel USB (3.0)
Pin Denitions
Pin# Denition Pin# Denition
A1 VBUS B1 Power
A2 D- B2 USB 2.0 Differential Pair
A3 D+ B3
A4 Ground B4 Ground of PWR Return
A5 StdA_SSRX- B5 SuperSpeed Receiver
A6 StdA_SSRX+ B6 Differential Pair
A7 GND_DRAIN B7 Ground for Signal Return
A8 StdA_SSTX- B8 SuperSpeed Transmitter
A9 StdA_SSTX+ B9 Differential Pair
Universal Serial Bus (USB) Ports

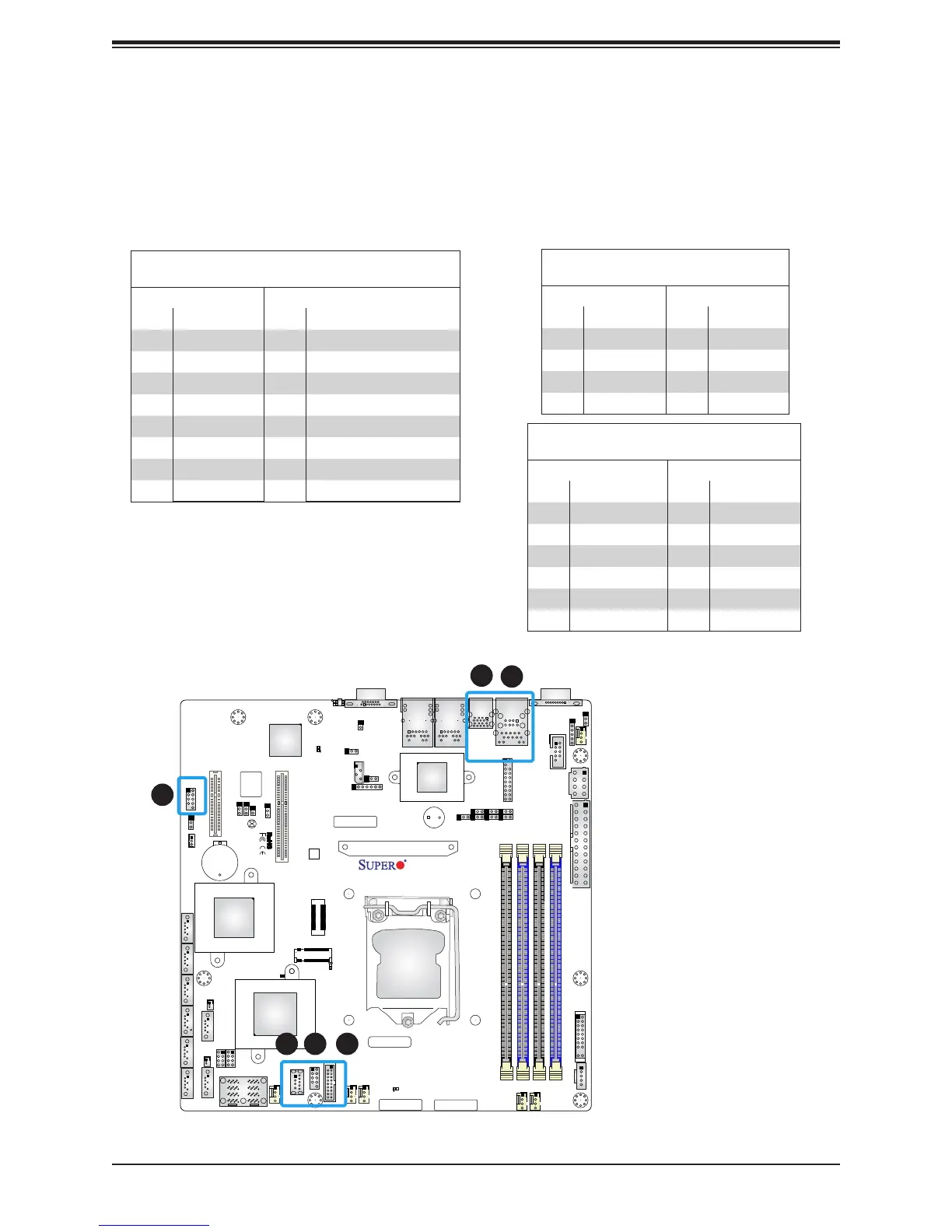

There is one USB 2.0 port (USB0/1) and one USB 3.0 port (USB6/7) located on the I/O back
panel. The motherboard also has two front access USB 2.0 headers (USB2/3 and USB4/5)
and one front access USB 3.0 header (USB9/10). The USB8 header is USB Type A. The
onboard headers can be used to provide front side USB access with a cable (not included).
DESIGNED IN USA
X11SSH-TF
REV:1.01
BAR CODE
SAS CODE
MEGERAC LICENSE
IPMI CODE
MAC CODE
PRESS FIT
Intel
PCH
LSI3008
(-CTF only)
X550
BT1
JSAS1
JSTBY1
LEDS1
J2
SP1
LE1
LEDBMC
LEDPWR
JPSAS1
JOH1
JL1
JPG1
JBR1
JVRM2
JVRM1
JPME2
JVR1
JPS1
JPB1
JI2C1
JI2C2
JWD1
JPTG1
JSD2
JSD1
FAN5
FANA
FAN3
FAN4
FAN1
FAN2
JUIDB1
JIPMB1
JPI2C1
JD1
JPWR2
I-SGPIO2
I-SGPIO1
I-SATA7
I-SATA6
I-SATA3
I-SATA2
I-SATA1
I-SATA0
JF1
JTPM1
JPWR1
I-SATA5
I-SATA4
MH8
J24
LE3
JBT1
JPCK1
DIMMB2
DIMMB1
DIMMA2
DIMMA1
USB8(3.0)
USB4/5
USB9/10(3.0)
USB2/3
CPU Socket LGA1151
PCH SLOT4 PCI-E 3.0 X2 (IN X4)
CPU SLOT6 PCI-E 3.0 X8
VGA
LAN2
LAN1
USB6/7
(3.0)
USB0/1
IPMI_LAN
COM2
COM1
1
2
1. USB0/1
2. USB2/3
3. USB4/5
4. USB6/7
5. USB8
6. USB9/10
5 6
4
3
USB Type A
Header Pin Denitions
Pin# Denition Pin# Denition
1 VBUS 2 D-N
3 D-P 4 GND
5 Stda_SSRX-N 6 Stda_SSRX-P
7 GND_DRAIN 8 Stda_SSTX-N
9 Stda_SSTX-P 10 CG
11 CG 12 CG
13 CG
