51
Chapter 2: Installation

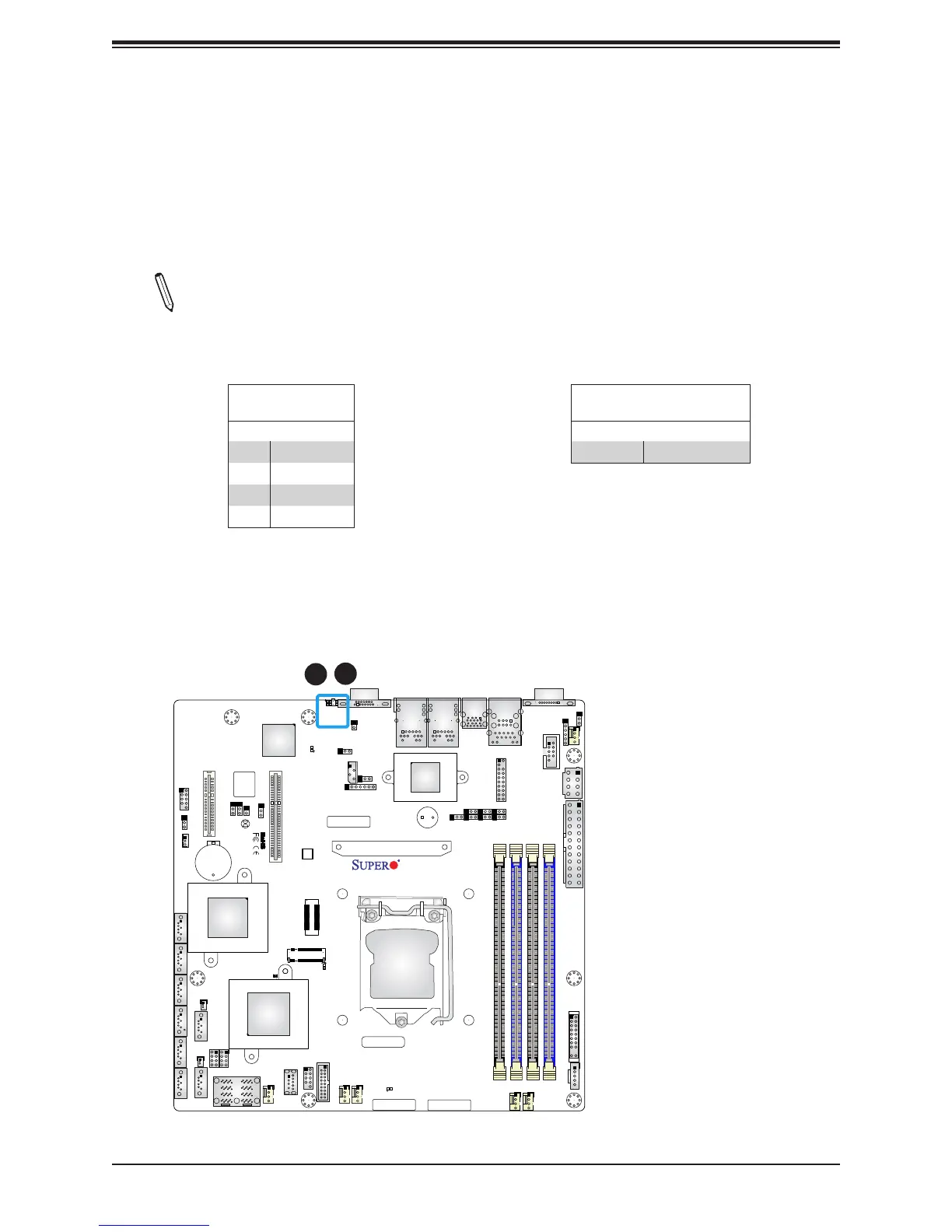

Unit Identier Switch/UID LED Indicator
A Unit Identier (UID) switch and an LED Indicator are located on the motherboard. The UID
switch is located at JUIDB1, which is next to the VGA port on the back panel. The UID LED
(LE1) is located next to the UID switch. When you press the UID switch, the UID LED will
be turned on. Press the UID switch again to turn off the LED indicator. The UID Indicator
provides easy identication of a system unit that may be in need of service.
Note: UID can also be triggered via IPMI on the motherboard. For more information
on IPMI, please refer to the IPMI User's Guide posted on our website at http://www.
supermicro.com.
UID Switch
Pin Denitions
Pin# Denition
1 Ground
2 Ground
3 Button In
4 Button In
UID LED
Pin Denitions
Color Status
Blue: On Unit Identied
DESIGNED IN USA
X11SSH-TF
REV:1.01
BAR CODE
SAS CODE
MEGERAC
LICENSE
IPMI CODE
MAC CODE
PRESS FIT
Intel
PCH
LSI3008
(-CTF only)
X550
BT1
JSAS1
JSTBY1
LEDS1
J2
SP1
LE1
LEDBMC
LEDPWR
JPSAS1
JOH1
JL1
JPG1
JBR1
JVRM2
JVRM1
JPME2
JVR1
JPS1
JPB1
JI2C1
JI2C2
JWD1
JPTG1
JSD2
JSD1
FAN5
FANA
FAN3
FAN4
FAN1
FAN2
JUIDB1
JIPMB1
JPI2C1
JD1
JPWR2
I-SGPIO2
I-SGPIO1
I-SATA7
I-SATA6
I-SATA3
I-SATA2
I-SATA1
I-SATA0
JF1
JTPM1
JPWR1
I-SATA5
I-SATA4
MH8
J24
LE3
JBT1
JPCK1
DIMMB2
DIMMB1
DIMMA2
DIMMA1
USB8(3.0)
USB4/5
USB9/10(3.0)
USB2/3
CPU Socket LGA1151
PCH SLOT4 PCI-E 3.0 X2 (IN X4)
CPU SLOT6 PCI-E 3.0 X8
VGA
LAN2
LAN1
USB6/7
(3.0)
USB0/1
IPMI_LAN
COM2
COM1
1
1. UID Switch
2. UID LED
2
