Supermicro X12 Series User Manual

Chapter 1: Configuring VROC RAID Settings
7

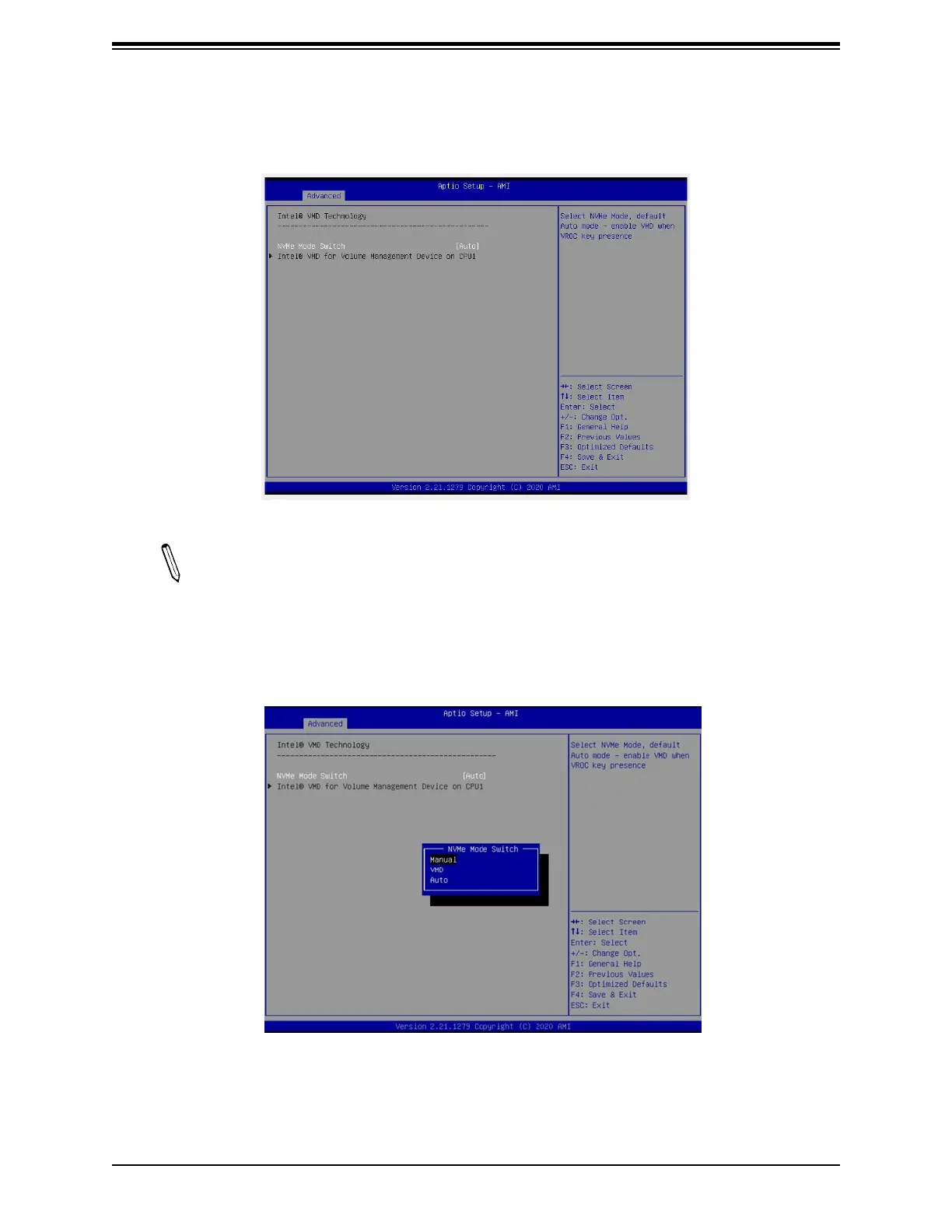

6. When the screen above displays, use the down arrow key to select Intel® VMD
Technology and press <Enter> to invoke its submenu as shown below:
Note: The “Intel VMD for Volume Management Device on CPU1” feature is grayed
out (unavailable) by default. To enable this feature support, please click ”NVMe Mode
Switch”, select “Manual” from its options pull-down box as shown below, and press
<Enter>. After changing the default setting of the “NVMe Mode Switch” to Manual, the
feature-“Intel VMD for Volume Management Device on CPU1 (or another selected
CPU)” will become available for VMD configuration.

Supermicro X12 Series Specifications

General

Chipset	Intel C621A
Memory Type	DDR4
Form Factor	ATX, EATX
PCIe Slots	Varies by model
M.2 Slots	Varies by model
SATA Ports	Varies by model
Network Ports	Varies by model
USB Ports	Varies by model
Supported CPU	Intel Xeon Scalable processors
RAID Support	Hardware RAID support (varies by model)
