Chapter 2: Installation

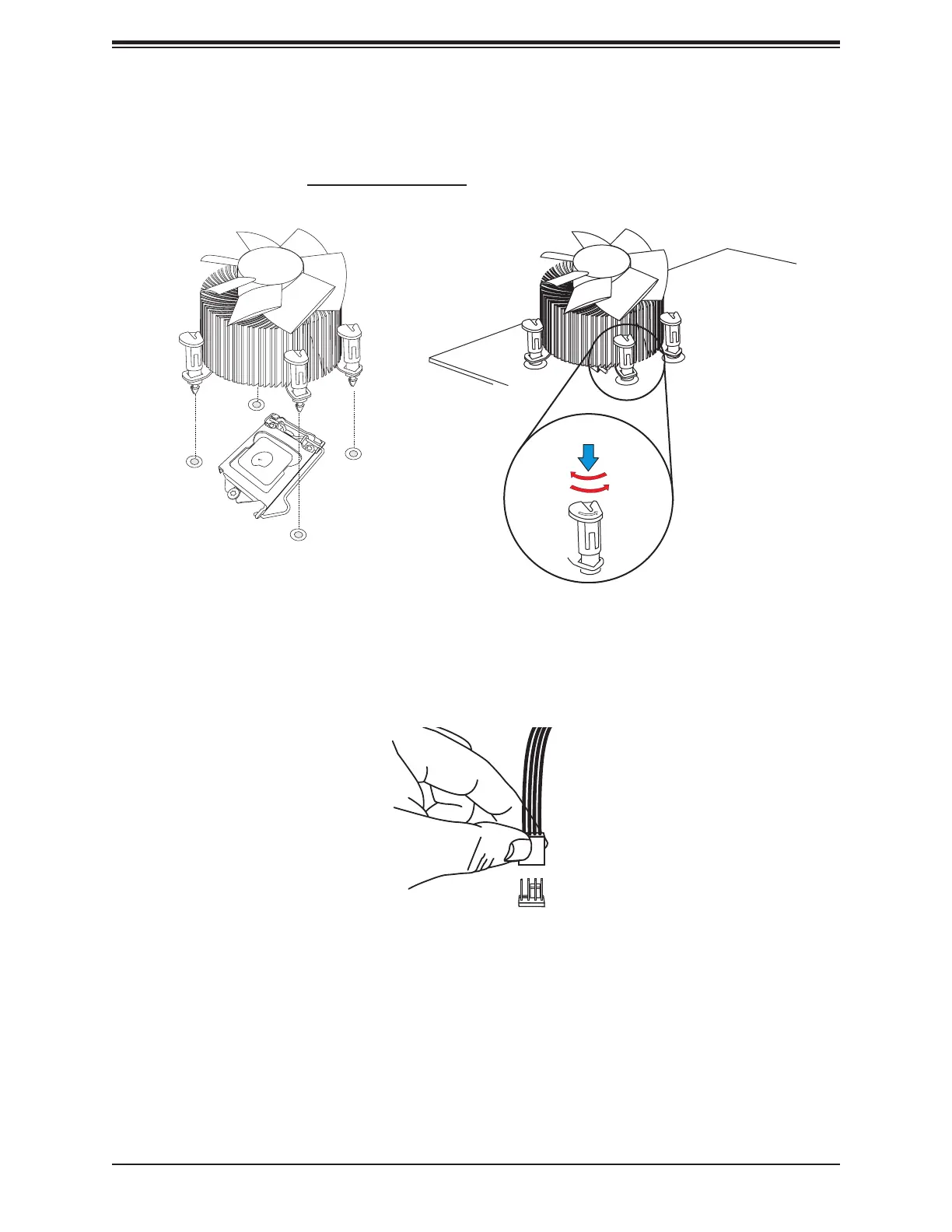

6. Align the four heatsink fasteners with the mounting holes on the motherboard. Gently
push down the fasteners in a diagonal order (Example: #1 and #2, then #3 and #4) into
the mounting holes until you hear a click, then lock the fasteners by turning each one
90° clockwise.
7. Once all four fasteners are secured, connect the heatsink fan wire connector to the CPU
fan header.
Push down
Lock
Unlock
1
2
3
4
