Supermicro X9DRD-LF User Manual

3-6
X9DRD-iF/LF Motherboard User’s Manual
Proper Battery Disposal
Warning: Please handle used batteries carefully. Do not damage the battery in any
way; a damaged battery may release hazardous materials into the environment. Do
not discard a used battery in the garbage or a public landll. Please comply with the
regulations set up by your local hazardous waste management agency to dispose of
your used battery properly.
Battery Installation
1. To install an onboard battery, follow the steps 1 & 2 above and continue
below:
2. Identify the battery's polarity. The positive (+) side should be facing up.
3. Insert the battery into the battery holder and push it down until you hear a
click to ensure that the battery is securely locked.
Warning: When replacing a battery, be sure to only replace it with the same type.
3-3 Battery Removal and Installation
Battery Removal
To remove the onboard battery, follow the steps below:
1. Power off your system and unplug your power cable.

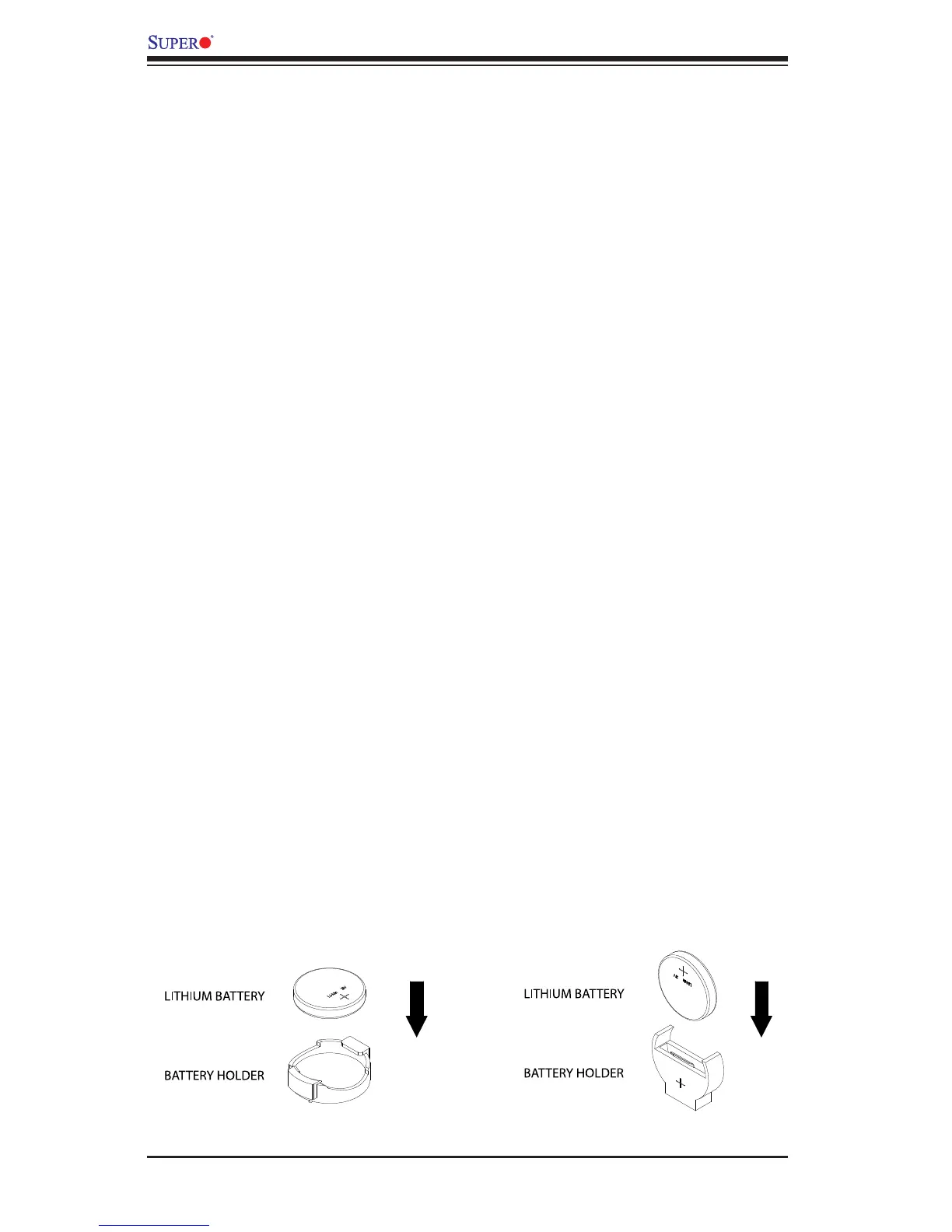

2. Locate the onboard battery as shown below.
3. Using a tool such as a pen or a small screwdriver, push the battery lock out-
wards to unlock it. Once unlocked, the battery will pop out from the holder.
4. Remove the battery.
OR

Supermicro X9DRD-LF Specifications

General

IPMI LAN (RJ-45) port	Yes
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Maximum UDIMM memory	64 GB
Number of DIMM slots	8
Supported RDIMM clock speeds	800, 1066, 1333, 1600 MHz
Supported DIMM module capacities	16GB, 1GB, 2GB, 32GB, 4GB, 8GB
PCI Express slots version	3.0
Memory voltage	1.35, 1.5 V
Maximum RDIMM memory	256 GB
Supported memory types	DDR3-SDRAM
BIOS type	AMI
ACPI version	4.0
BIOS memory size	128 Mbit
RAID levels	0, 1
Supported storage drive interfaces	SATA III
On-board graphics card model	Matrox G200eW
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	8 - 90 %
Supported QPI	8 GT/s
Processor socket	LGA 2011 (Socket R)
Intel Xeon series	E5-2600
Processor manufacturer	Intel
Ethernet interface type	Gigabit Ethernet
Component for	Server
Motherboard chipset	Intel® C602
Sustainability certificates	RoHS

Weight and Dimensions

Depth	330 mm
Width	262 mm
