Supermicro X9DRD-LF User Manual

Chapter 2: Installation
2-5
OPEN 1st
WARNING!
2-3 Processor and Heatsink Installation
Warning: When handling the processor package, avoid placing direct pressure on
the label area.
Notes:
•Always connect the power cord last, and always remove it before adding, re-
moving or changing any hardware components. Make sure that you install the
processor into the CPU socket before you install the CPU heatsink.
•If you buy a CPU separately, make sure that you use an Intel-certied multi-
directional heatsink only.
•Make sure to install the motherboard into the chassis before you install the
CPU heatsink.
•When receiving a motherboard without a processor pre-installed, make sure that
the plastic CPU socket cap is in place and none of the socket pins are bent;
otherwise, contact your retailer immediately.
•Refer to the Supermicro website for updates on CPU support.
Press down
on Load Lever
labeled 'Open 1st'.

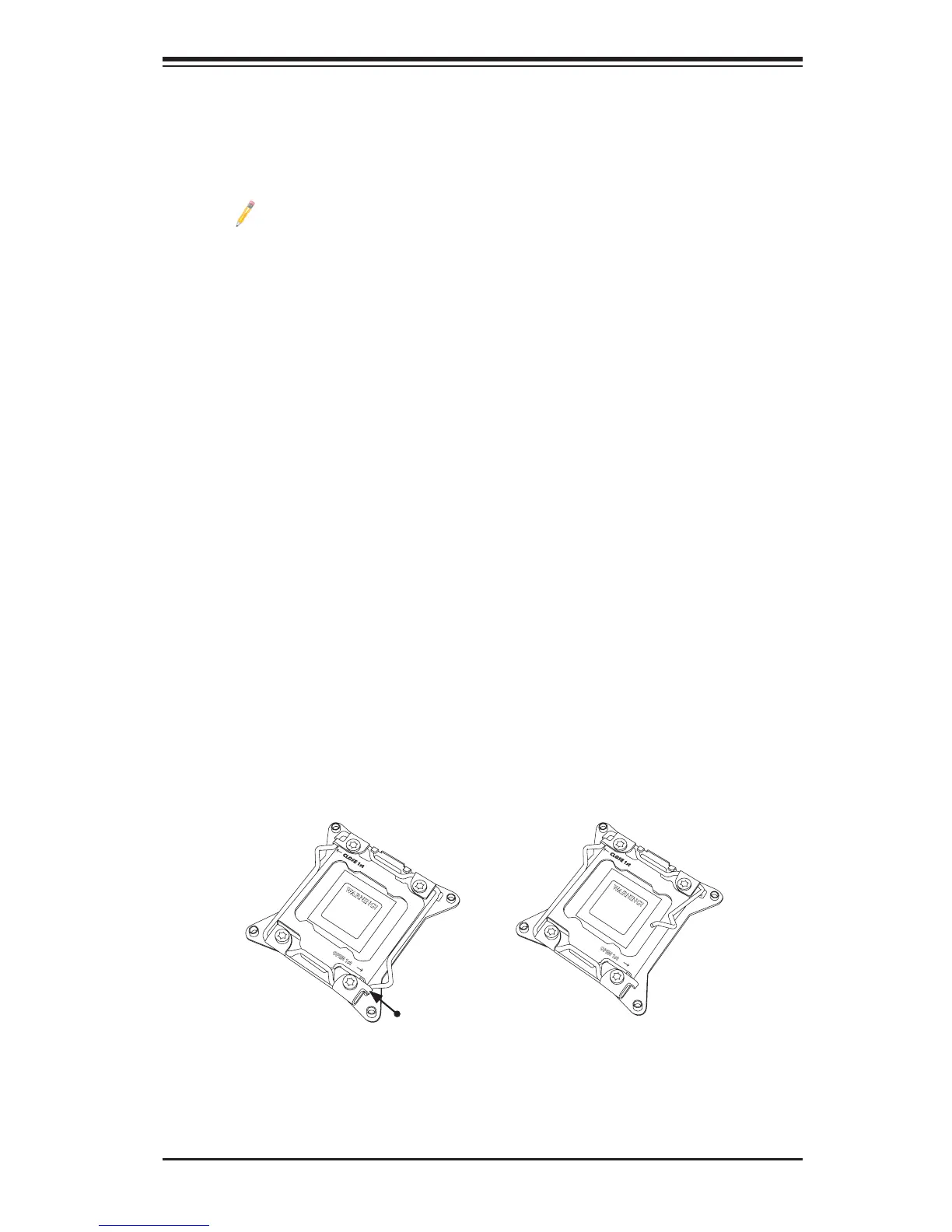

Installing the LGA2011 Processor
1. There are two load levers on the LGA2011 socket. To open the socket cover,
rst press and release the load lever labeled 'Open 1st'.
OPEN 1st
WARNING!
1
2

Supermicro X9DRD-LF Specifications

General

IPMI LAN (RJ-45) port	Yes
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Maximum UDIMM memory	64 GB
Number of DIMM slots	8
Supported RDIMM clock speeds	800, 1066, 1333, 1600 MHz
Supported DIMM module capacities	16GB, 1GB, 2GB, 32GB, 4GB, 8GB
PCI Express slots version	3.0
Memory voltage	1.35, 1.5 V
Maximum RDIMM memory	256 GB
Supported memory types	DDR3-SDRAM
BIOS type	AMI
ACPI version	4.0
BIOS memory size	128 Mbit
RAID levels	0, 1
Supported storage drive interfaces	SATA III
On-board graphics card model	Matrox G200eW
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	8 - 90 %
Supported QPI	8 GT/s
Processor socket	LGA 2011 (Socket R)
Intel Xeon series	E5-2600
Processor manufacturer	Intel
Ethernet interface type	Gigabit Ethernet
Component for	Server
Motherboard chipset	Intel® C602
Sustainability certificates	RoHS

Weight and Dimensions

Depth	330 mm
Width	262 mm
