2-10
X9DRD-iF/LF Motherboard User’s Manual

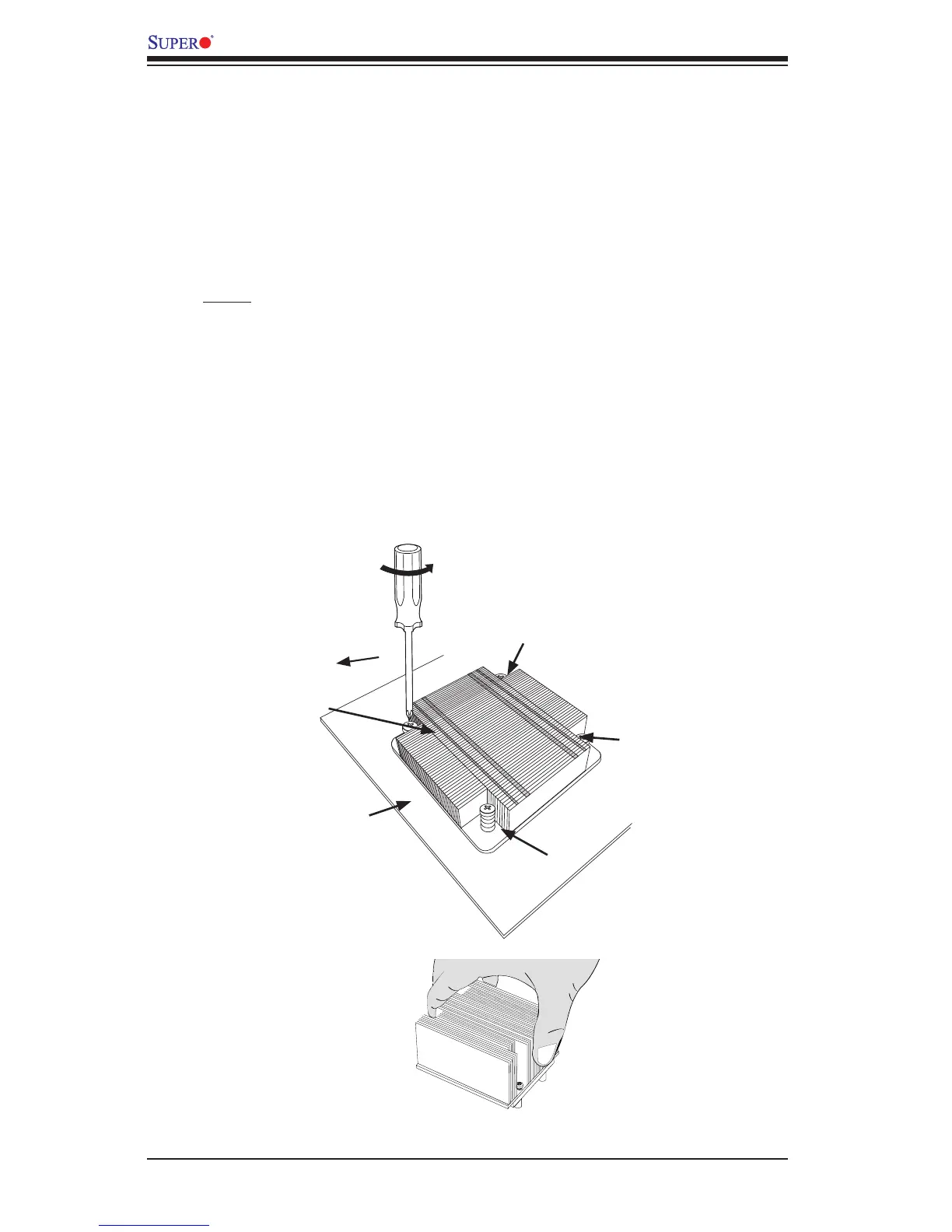

Removing the Heatsink
Warning: We do not recommend that the CPU or the heatsink be removed. However,
if you do need to uninstall the heatsink, please follow the instructions below to uninstall
the heatsink to prevent damage done to the CPU or the CPU socket.
1. Unscrew the heatsink screws from the motherboard in the sequence as
shown in the illustration below.
2. Gently wriggle the heatsink to loosen it from the CPU. (Do not use excessive
force when wriggling the heatsink!)
3. Once the CPU is loosened, remove the CPU from the CPU socket.
4. Remove the used thermal grease and clean the surface of the CPU and the
heatsink, Reapply the proper amount of thermal grease on the surface before
reinstalling the CPU and the heatsink. (Do not reuse old thermal grease.)
Loosen screws
in sequence as
shown.
Screw#2
Motherboard
Screw#1
Screw#3
Screw#4

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Supermicro X9DRD-LF and is the answer not in the manual?

Supermicro X9DRD-LF Specifications

General IconGeneral
IPMI LAN (RJ-45) portYes
USB 2.0 ports quantity4
Ethernet LAN (RJ-45) ports2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Maximum UDIMM memory64 GB
Number of DIMM slots8
Supported RDIMM clock speeds800, 1066, 1333, 1600 MHz
Supported DIMM module capacities16GB, 1GB, 2GB, 32GB, 4GB, 8GB
PCI Express slots version3.0
Memory voltage1.35, 1.5 V
Maximum RDIMM memory256 GB
Supported memory typesDDR3-SDRAM
BIOS typeAMI
ACPI version4.0
BIOS memory size128 Mbit
RAID levels0, 1
Supported storage drive interfacesSATA III
On-board graphics card modelMatrox G200eW
Operating temperature (T-T)10 - 35 °C
Operating relative humidity (H-H)8 - 90 %
Supported QPI8 GT/s
Processor socketLGA 2011 (Socket R)
Intel Xeon seriesE5-2600
Processor manufacturerIntel
Ethernet interface typeGigabit Ethernet
Component forServer
Motherboard chipsetIntel® C602
Sustainability certificatesRoHS
Weight and Dimensions IconWeight and Dimensions
Depth330 mm
Width262 mm
