Supermicro X9DRD-LF User Manual

B-2
X9DRD-iF/LF Motherboard User’s Manual
B-2 ConguringSuperDoctorIII
The SuperDoctor® III program is a web-based management tool that supports
remote management capability. It includes Remote and Local Management tools.
The local management is called SD III Client. The SuperDoctor III program allows
you to monitor the environment and operations of your system. SuperDoctor III
displays crucial system information such as CPU temperature, system voltages
and fan status. See the gures below for examples of the SuperDoctor III interface.
Note 1: The default User Name and Password for SuperDoctor III is
ADMIN/ADMIN.
Note 2: When SuperDoctor III is rst installed, it adopts the temperature
threshold settings that have been set in BIOS. Any subsequent changes to
these thresholds must be made within SuperDoctor III, as the SuperDoc-
tor III settings override the BIOS settings. To set the BIOS temperature
threshold settings again, you would rst need to uninstall SuperDoctor III.

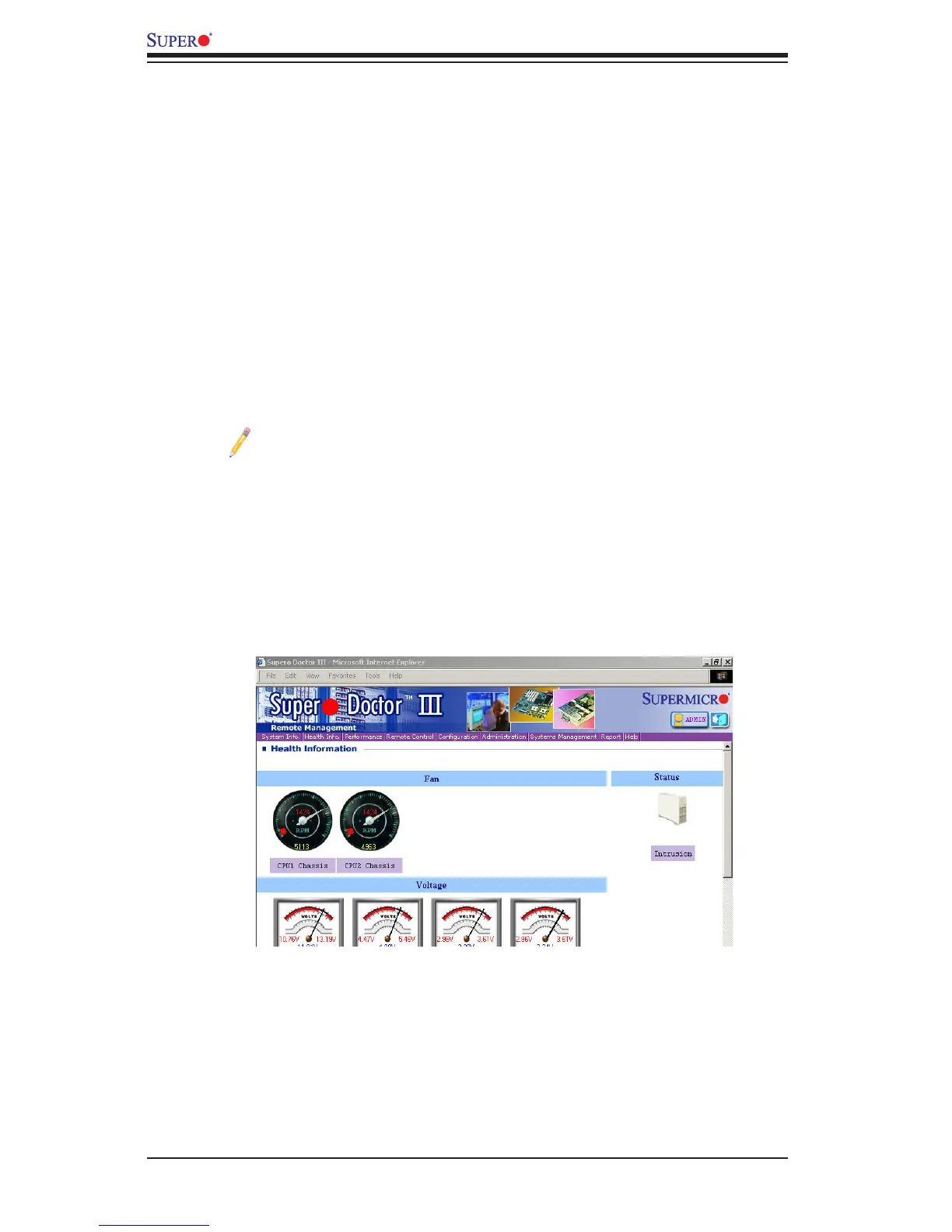

SuperDoctor® III Interface Display Screen (Health Information)
Note 3: Changing BMC log-in information is recommended during initial
system power-on. The default username is ADMIN and password is
ADMIN. For BMC best practices, please refer to http://www.supermicro.
com/products/nfo/les/IPMI/Best_Practices_BMC_Security.pdf

Supermicro X9DRD-LF Specifications

General

IPMI LAN (RJ-45) port	Yes
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Maximum UDIMM memory	64 GB
Number of DIMM slots	8
Supported RDIMM clock speeds	800, 1066, 1333, 1600 MHz
Supported DIMM module capacities	16GB, 1GB, 2GB, 32GB, 4GB, 8GB
PCI Express slots version	3.0
Memory voltage	1.35, 1.5 V
Maximum RDIMM memory	256 GB
Supported memory types	DDR3-SDRAM
BIOS type	AMI
ACPI version	4.0
BIOS memory size	128 Mbit
RAID levels	0, 1
Supported storage drive interfaces	SATA III
On-board graphics card model	Matrox G200eW
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	8 - 90 %
Supported QPI	8 GT/s
Processor socket	LGA 2011 (Socket R)
Intel Xeon series	E5-2600
Processor manufacturer	Intel
Ethernet interface type	Gigabit Ethernet
Component for	Server
Motherboard chipset	Intel® C602
Sustainability certificates	RoHS

Weight and Dimensions

Depth	330 mm
Width	262 mm
