E-16
SC847 Chassis Manual
CBL-0167L
with Single Port Assembly
(internal cable)
CBL-0166L
(external cable)
HBA
(Host Bus Adapter)
Power Card
Single HBA Conguration
Connecting Multiple Backplanes in a Single Channel
Environment
This section describes the cables used when cascading from a single HBA. These
connections use CBL-0167L internal cables and CBL-0166L external cables.

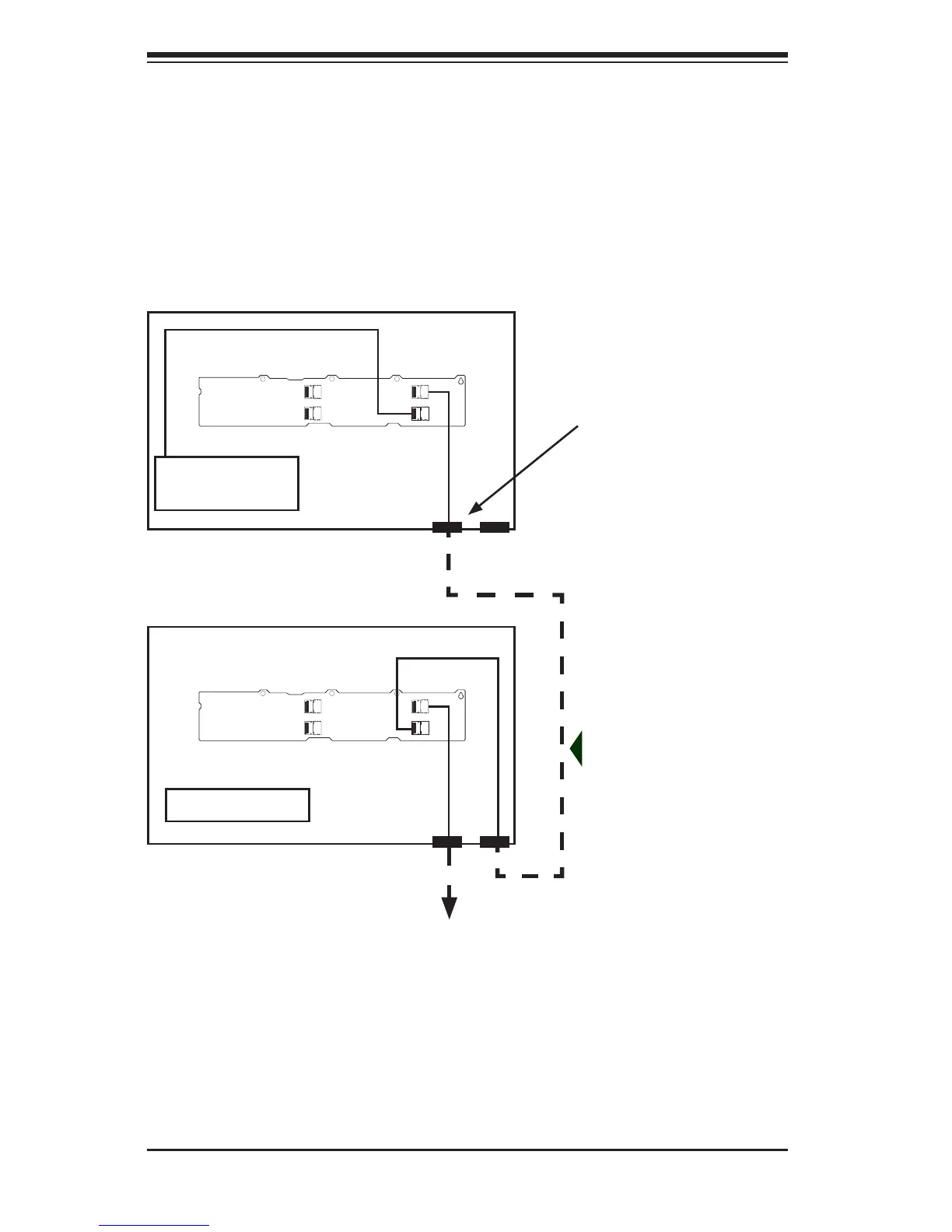

Figure E-11: Single HBA Conguration
