E-17
Appendix E: SAS-826EL Backplane Specications
Description: External cascading cable. Connects ports between servers. With
most connectors, use one cable for single port connections and two cables for dual
port connections.
Cable Name: SAS EL2/EL1 Cascading Cable (External), 68cm
Part #: CBL-0166L (SFF-8088 1x to SFF-8088 x1)
Ports: Single or Dual
Placement: External cable
Description: Internal cable. Connects the backplane to the Host Bus Adapter
(HBA) or external port. Used in single port environments.
Cable Name: SAS EL2/EL1 Backplane Cable (Internal) w/ 2-port Cascading Cable,
68 cm
Part #: CBL-0167L (SFF-8087 to SFF-8088 x1)
Ports: Single
Placement: Internal cable
Single HBA Conguration Cables
Single Port Cable Assembly

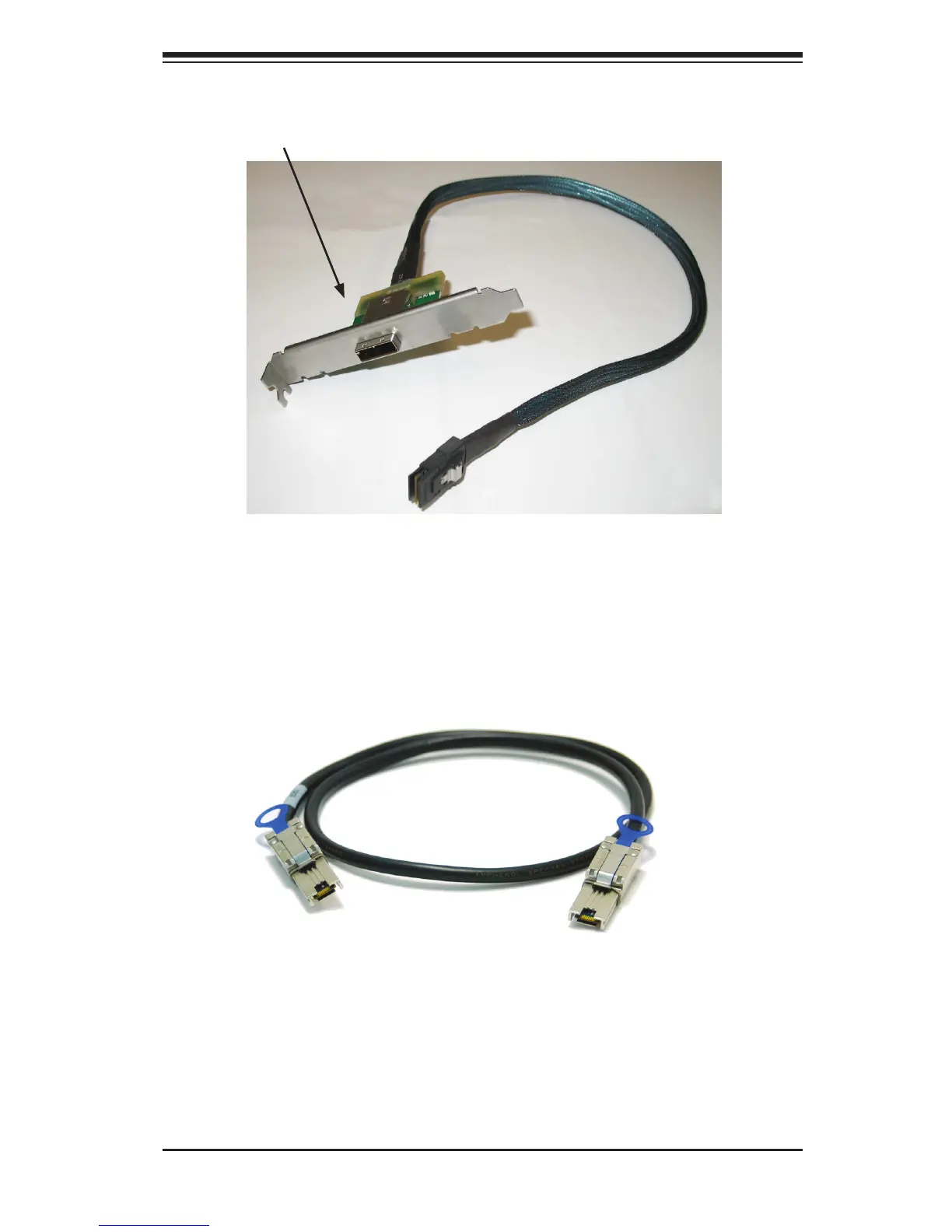

Figure E-12: The CBL-0167L Cable
Figure E-13: The CBL-0166L Cable
