2-12
X8SIL/X8SIL-F User's Manual
Insert the DIMM mod-
ule vertically and press
down until the module
snaps into place.
To Remove:
Use your thumbs to
gently push the Lock/
Release tabs near both
ends of the module. This should
release it from the slot. Pull the
DIMM module upwards.

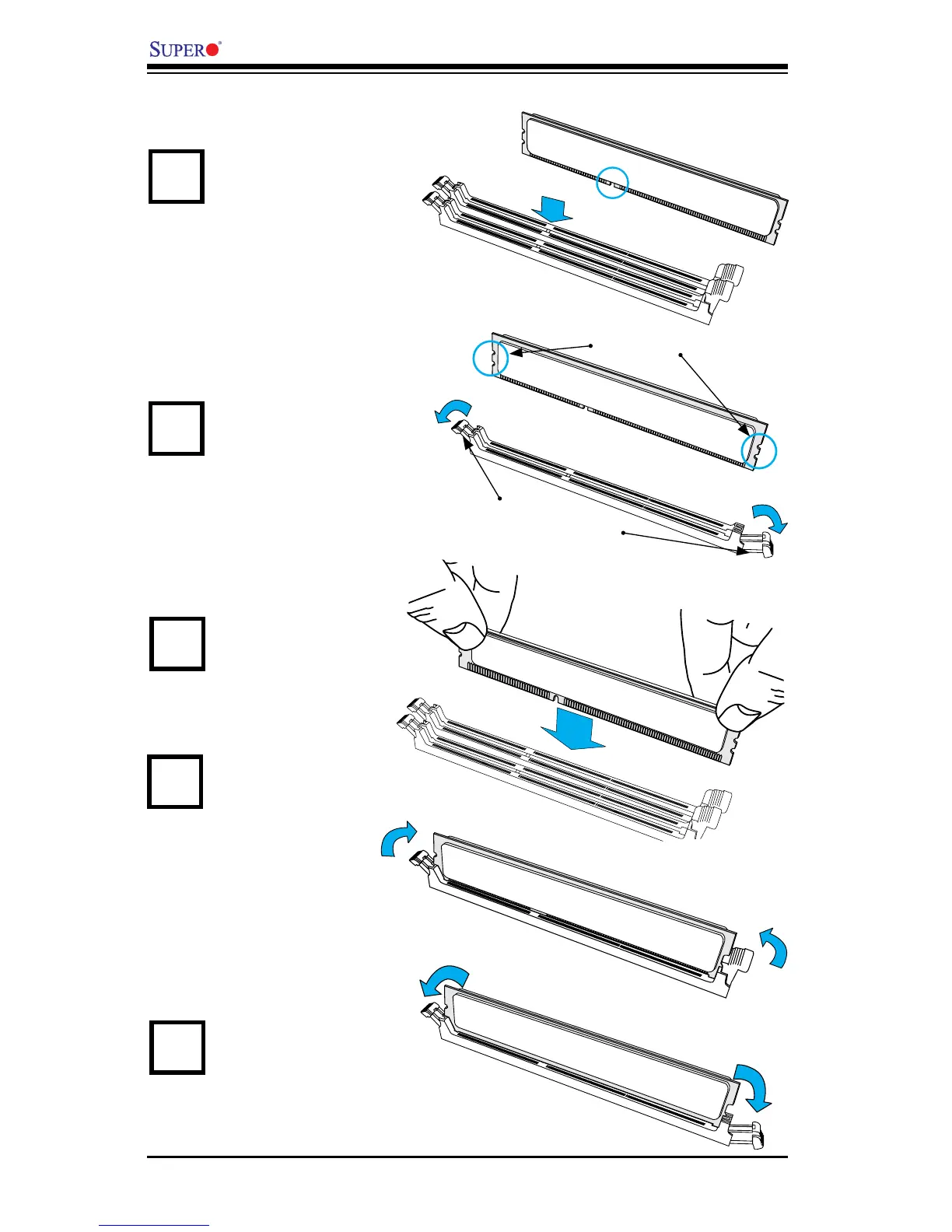

Installing and Removing DIMMs
Position the DIMM
module's bottom key
so it aligns with the
receptive point on the slot.
When the module is
properlly inserted, the
Lock/Release tabs will
automatically secure
the DIMM module, locking it
into place.
Push the Lock/Release
tabs to their Release po-
sitions. Make sure that
the DIMM module's side
notches align with the slot's Lock/
Release tabs as it is pressed in.
Lock/Release Tabs
Notches
Release
Release
Lock
Lock
1
2
3
4
Release
Release
5
Press Down
To Next Page
