Chapter 6 Function & Setting (P400)
www.supmea.com
~ 3). If the setting value of display precision is 4, the
maximum display value will exceed the maximum display
range of 5 bits.
SHO: display mode setting, range can be set (0 ~ 5)
"0" -- shows the main variable at the prompt "-pv -"
"1" -- shows current, prompt "-ma -"
"2" -- shows percentages, prompt "-%-"
"3" -- the main variable is displayed alternately with the
current, and the prompt is "pv-ma".
"4" -- the main variable is displayed alternately with the
percentage, and the prompt is "PV--%".
"5" -- current and percentage are shown alternately,
prompt "mA--%"
End: exit the setting menu, and the range can be set (0 ~ 1).
"0" - do not save the set value, and exit the set state,
prompt "NSAVE"
"1" - SAVE the set value and exit the set state, prompt
"SAVE"

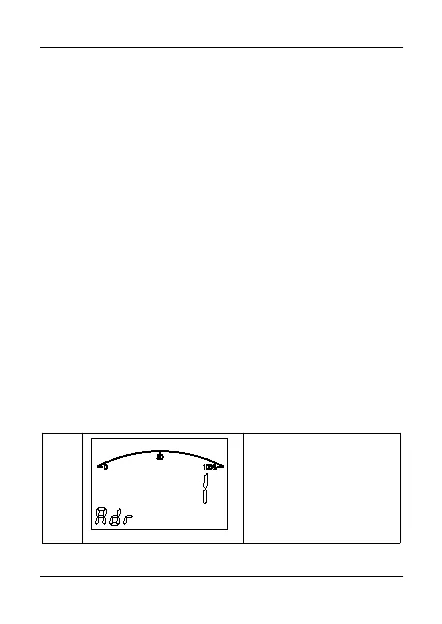

Function setting (RS485 output /RS485 output &4~20mA
output)
To Next Page
