suprema BioEntry W2 - TTL Input Connections

Installation
12

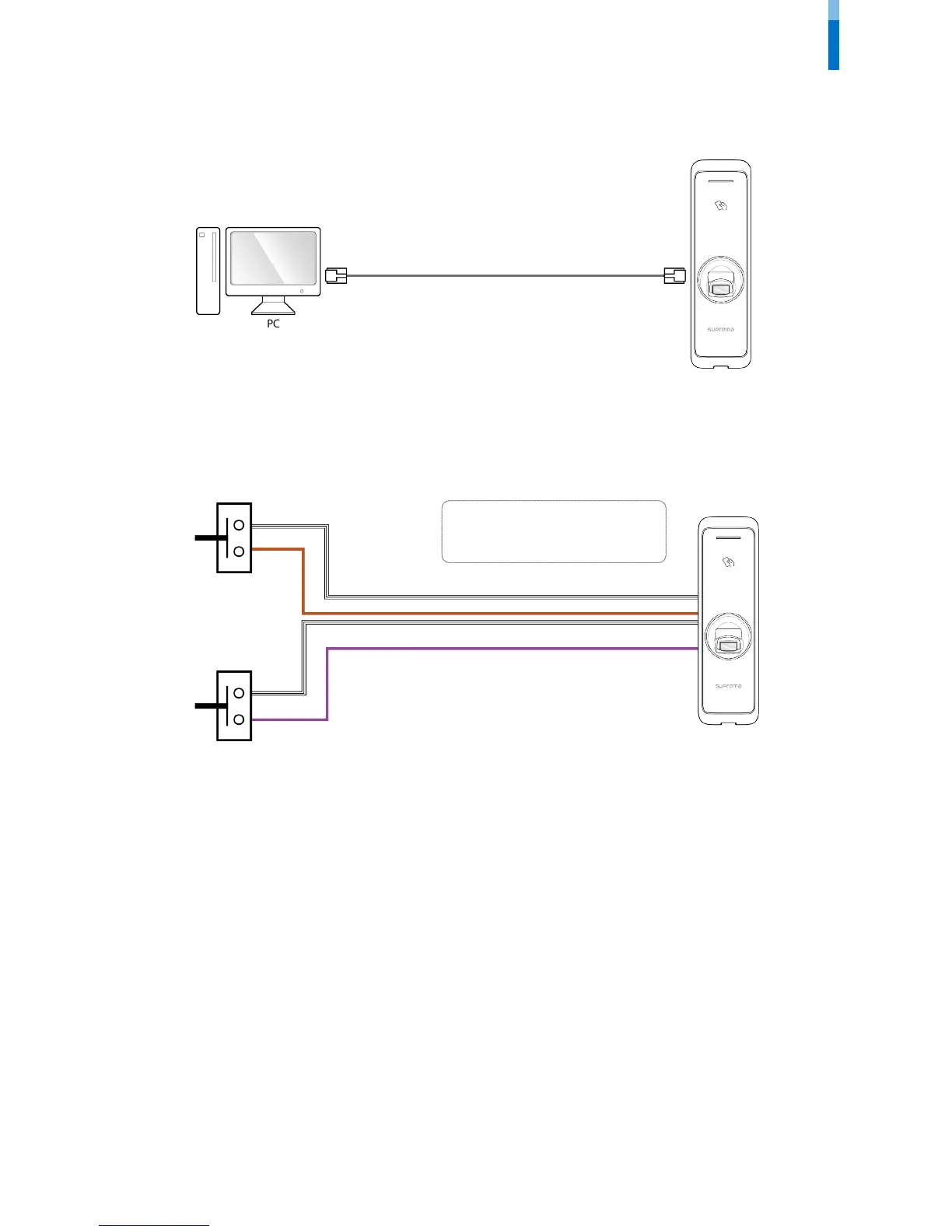

LAN connection (connecting to a PC directly)
BioEntry W2 has an automatic MDI/MDIX function so that it can be connected to a PC directly using a normal straight type CAT-5 cable, not
a cross cable.
TTL input connection
BioEntry W2
9 - TTL IN 1 Brown
10 - TTL IN 0 Purple
16 - 485 GND White (Black stripe)
16
9
10
Door sensor
Door button
16
BioEntry W2
PC
