suprema BioEntry W2 - Cables and Connectors

Introduction
7

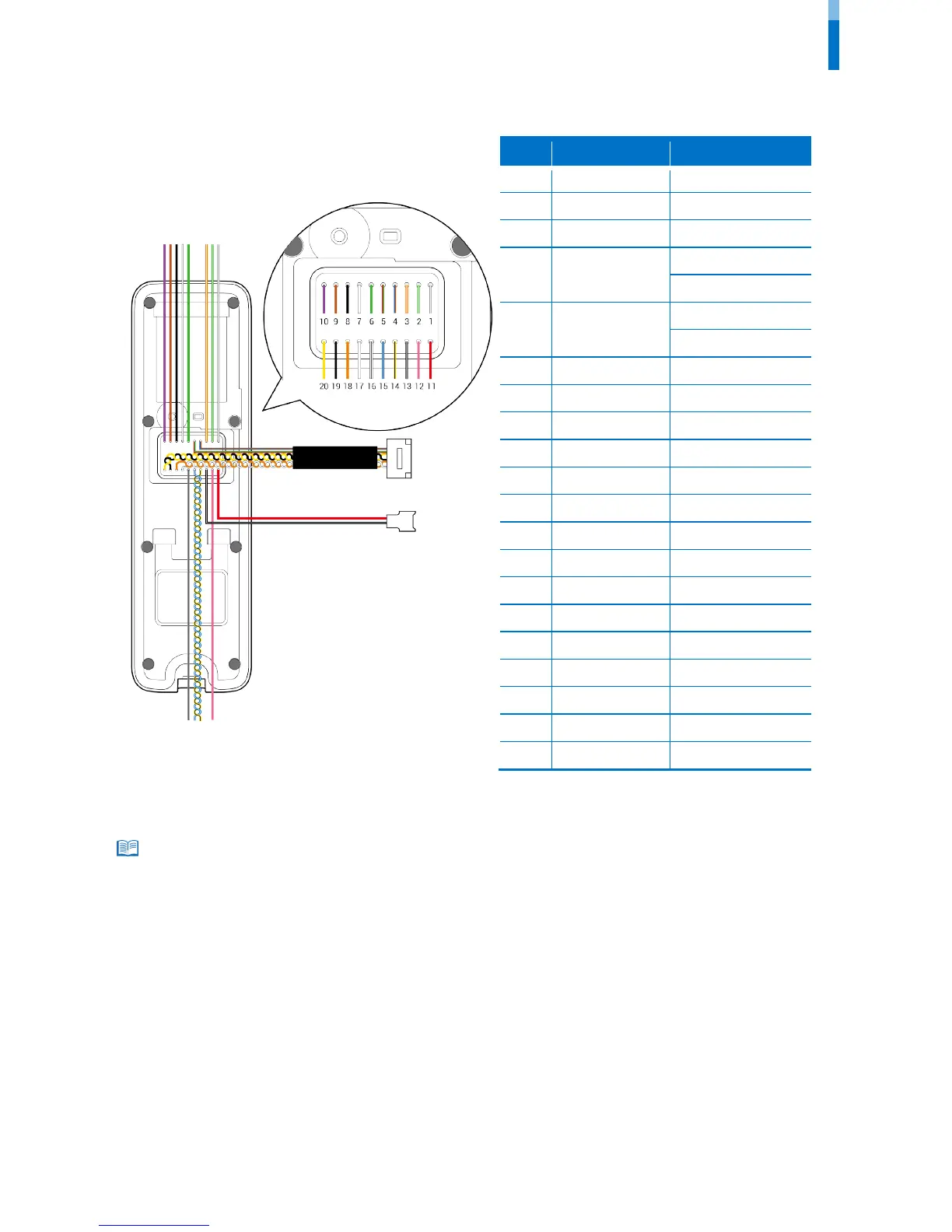

Cables and connectors
• There are several conductors of size of AWG 26 and they shall be covered by a common jacket or the equivalent when field wiring; And the lead
shall not be spliced to a conductor larger than 18 AWG (0.82 mm
2
).
Note
Pin
Name
Color
1
RLY NO
Gray (White stripe)
2
RLY COM
Green (White stripe)
3
RLY NC
Orange (White stripe)
4 VB2
Blue
Brown
5 VB1
Red
Green
6
WG D0
Green
7
WG D1
White
8
WG GND
Black
9
TTL IN 1
Brown
10
TTL IN 0
Purple
11
PWR +VDC
Red
12
Not Connected
Pink
13
PWR GND
Black (White stripe)
14
485 TRXN
Yellow (Black stripe)
15
485 TRXP
Blue (White stripe)
16
485 GND
White (Black stripe)
17
ENET TXP
White
18
ENET TXN
Orange
19
ENET RXP
Black
20
ENET RXN
Yellow
