Control
8, External Potentiometers
POT1
POT2
POT3
POT4
8

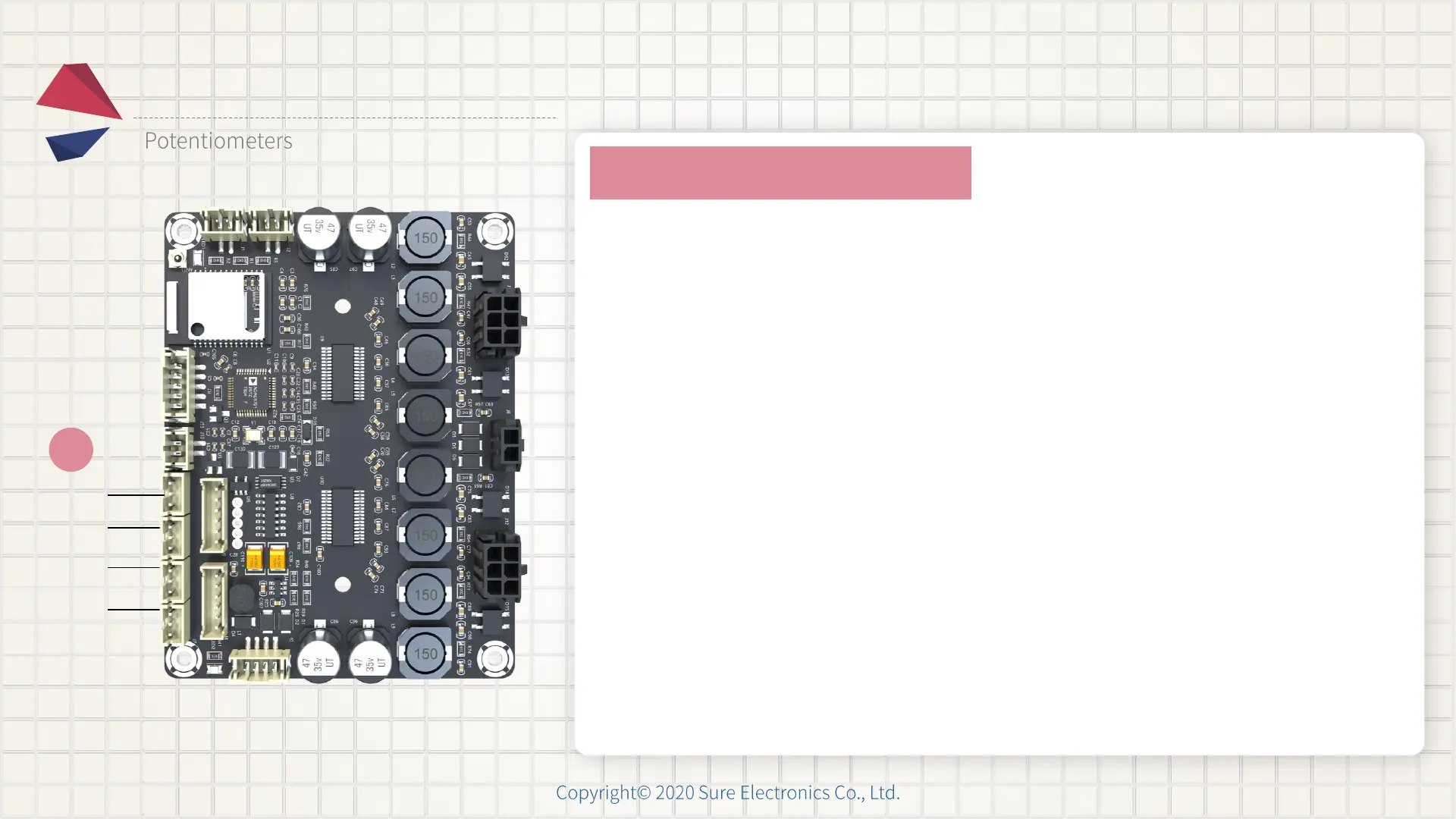

Four ports for external potentiometers are provided on JAB4 for
hardware control of the whole system. You can find the cables
along with potentiometers in the Functional cables kit (AA-
JA11117).
POT4: Gain of power stage channel 1
POT3: High-pass filter / Bandpass filter of power stage channel 1
POT2: High-pass filter / Bandpass filter of power stage channel 2
POT1: Gain of power stage channel 2
• As for the details, please refer to the datasheet.
• If you want on-board potentiometers, please contact us. MOQ500pcs
would be required.
