Audio Output

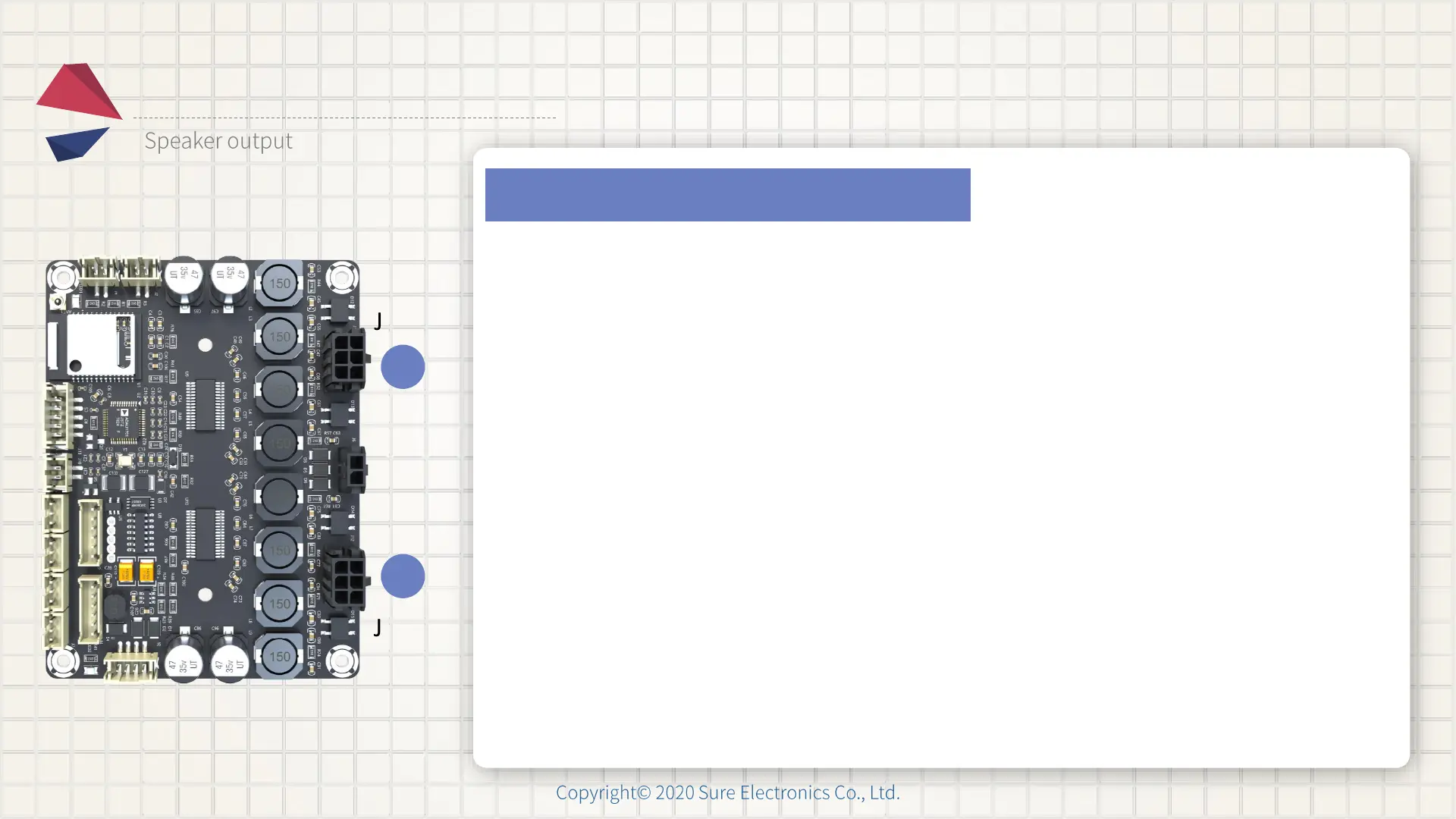

10, Stereo speaker output – J11, J12
JAB4 works as 4 x 30W. It also supports configured as 2.0 / 0.2 mode (2 x
60W) or 2.1 mode (2 x 30W + 1 x 60W).
The switching is achieved by automatic cables identification.
Make sure the power is off when switching the output mode, otherwise
the amplifier will enter into protection mode.
Please note if you want to use JAB4 as 0.2 mode, you need to set
frequency with PC UI. 0.2 Mode is NOT supported when using hardware
control (potentiometers).
The terminal blocks used for speaker output is Molex-MicroFit-2x3Pos-
3mm. Two speaker cables comes with JAB4 as the basic cables.
J11
J12
10
10
