SureShade Power Bimini - BOLT ACTUATOR ASSEMBLY

6
lci1.com Rev: 03.10.20574-537-8900 CCD-0003622
INSTALLATION
STEP 5  BOLT DOWN
TOOLS REQUIRED:
1. 1/2" wrench
PARTS REQUIRED:
A. 5/16" x 1-3/4" bolt
B. 5/16" at washer

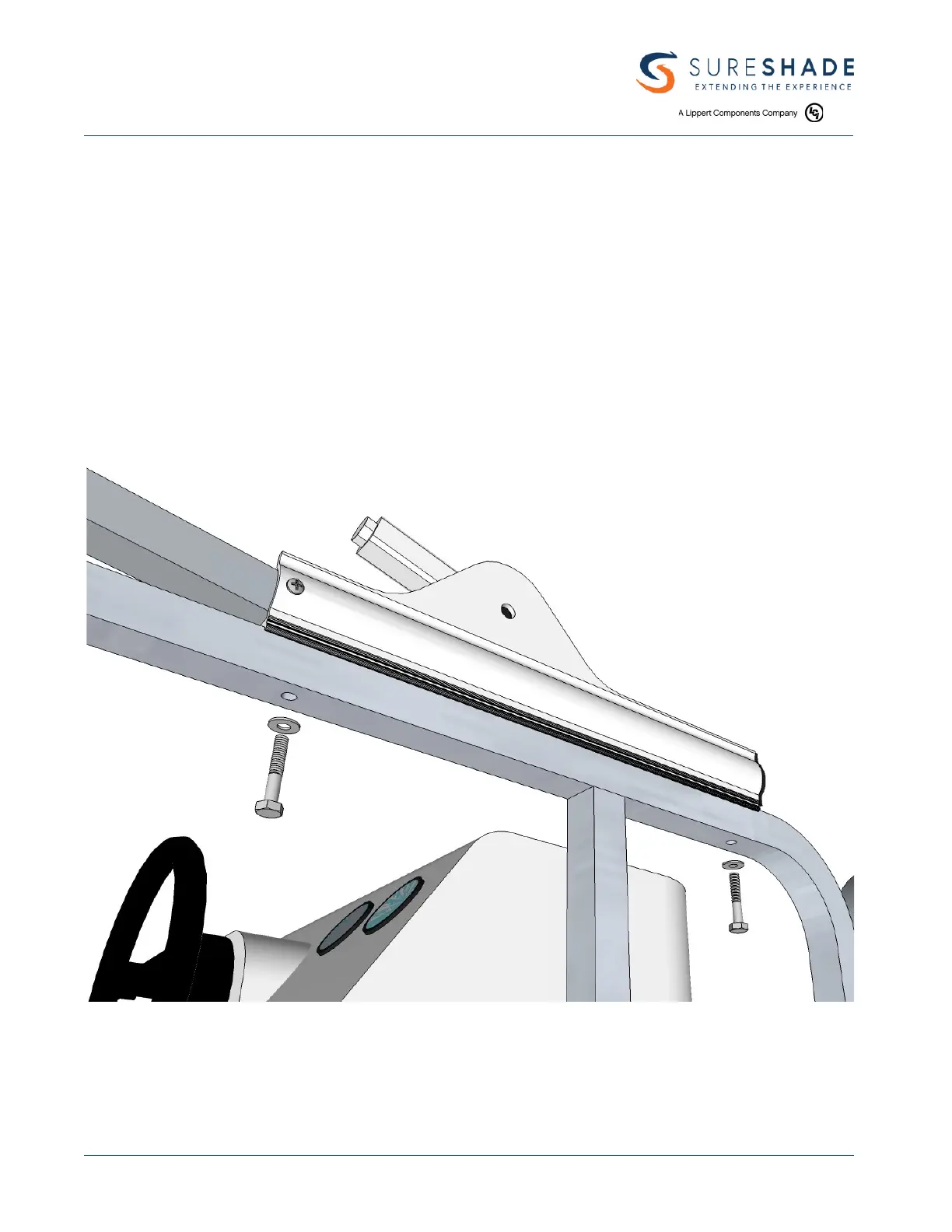

Assemble at washer (B) with bolt (A). Then, using a 1/2" wrench, fasten down strut/actuator
assembly (C) to rear frame.
A
A
B
B
C
