7
Rev: 03.10.20 lci1.com574-537-8900 CCD-0003622
INSTALLATION
STEP 6 HBRACKET
TOOLS REQUIRED:
1. Cordless or electric drill or screw gun
2. 3/8" drive bit
PARTS REQUIRED:
A. Rear strut assembly
B. H-bracket
C. Nylon bushing
D. Self-tapping screw

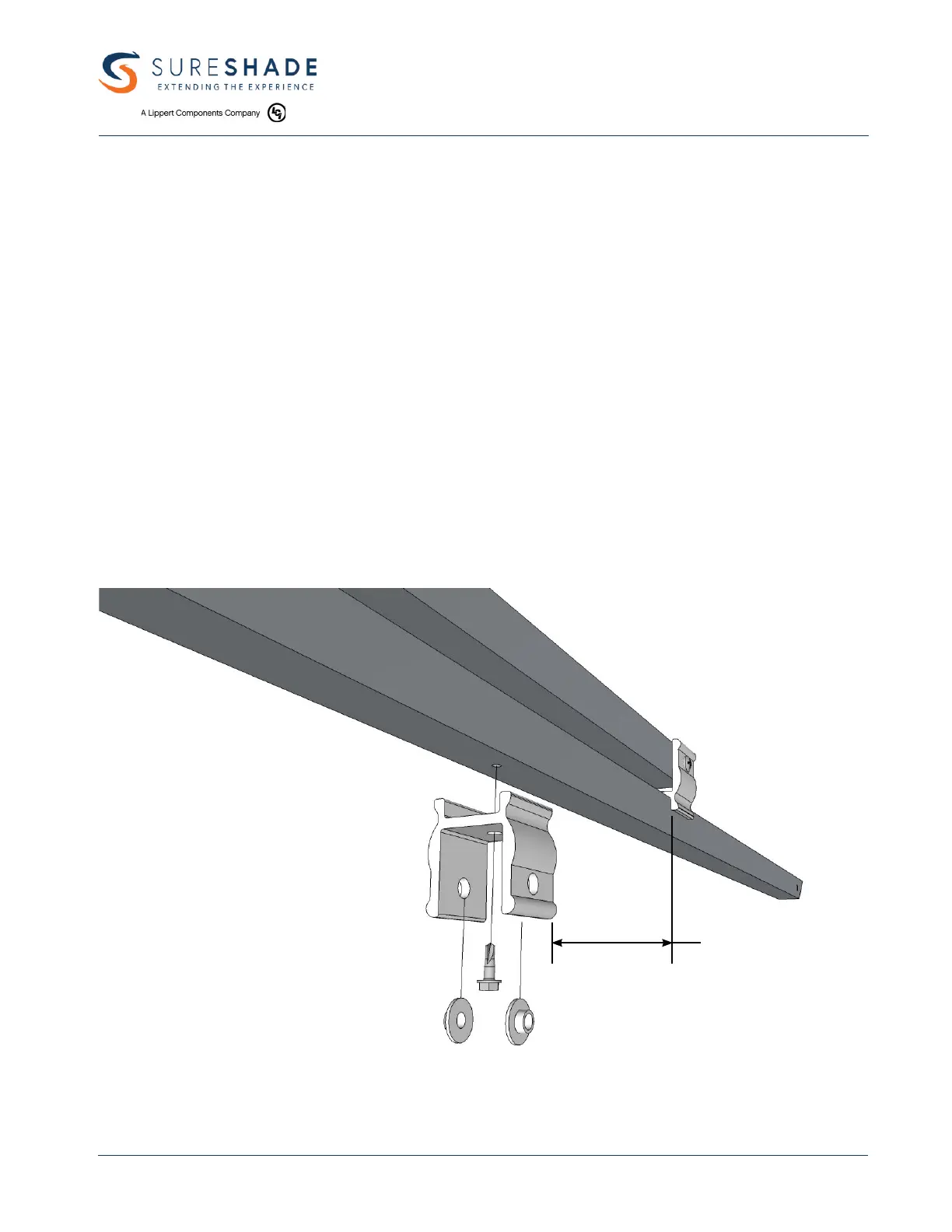

Position the H-bracket (B) on rear strut assembly (A) such that the bracket is positioned 1/2" minimum behind
the middle strut's H-bracket (towards the rear of the strut) and over a straight, at area of the side railing. The nal
position of the rear strut H-bracket must be such that it does not interfere with the operation of the bimini top
with the boot installed. Use an electric drill with a 3/8" nut-driver bit and the included 1/4" self-tapping screw (D)
to fasten the assembly.
Install both nylon bushings (C) into the pre-drilled holes in H-bracket as shown.
A
B
C
D
½
" Min.
