INSTALLATION
STEP 7 STANDOFF
TOOLS REQUIRED:
1. (2) Phillips screwdrivers
PARTS REQUIRED:
A. Stand-o leg
B. 1/4" x 1-1/2" Phillips screw
C. 1/4" Phillips nut

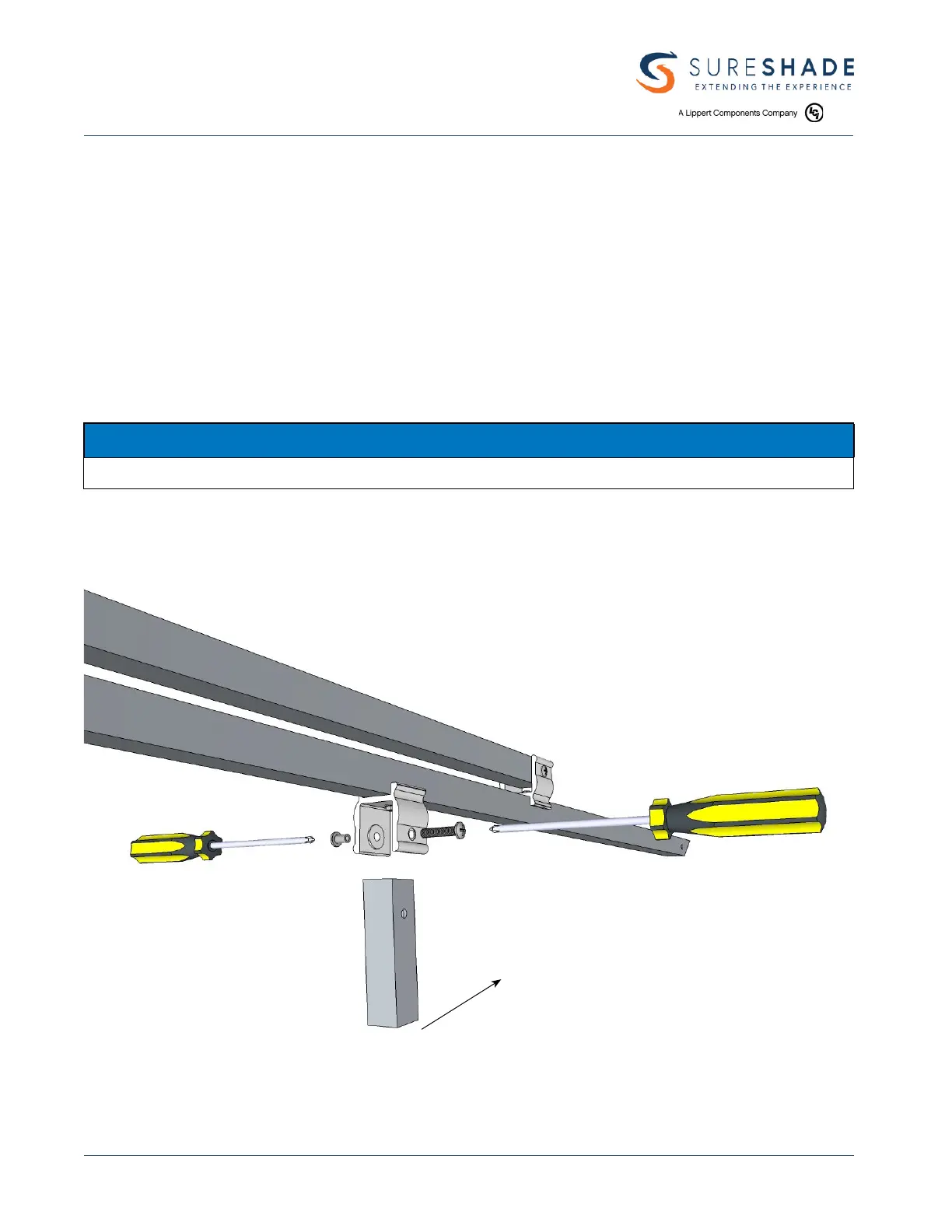

Align pre-drilled holes in stand-o leg (A) with holes in the already installed nylon bushings.
Next, align Phillips screw (B) with Phillips nut (C) and tighten using two Phillips screwdrivers.
Stand-o leg has a slight miter that should angle towards the mitered end of the rear strut assembly.
A
After installation, leg should
angle in this direction.
B
C
REPEAT STEPS 67 FOR THE SECOND ASSEMBLY
