SureShade Power Bimini - LOCATE LEFT ACTUATOR ASSEMBLY

To Next Page

To Previous Page

Rev: 03.10.20 lci1.com574-537-8900 CCD-0003622

INSTALLATION

STEP 8  LOCATE LEFT

TOOLS REQUIRED:

1. Pencil

PARTS REQUIRED:

A. Rear strut/actuator assembly

B. Center bow

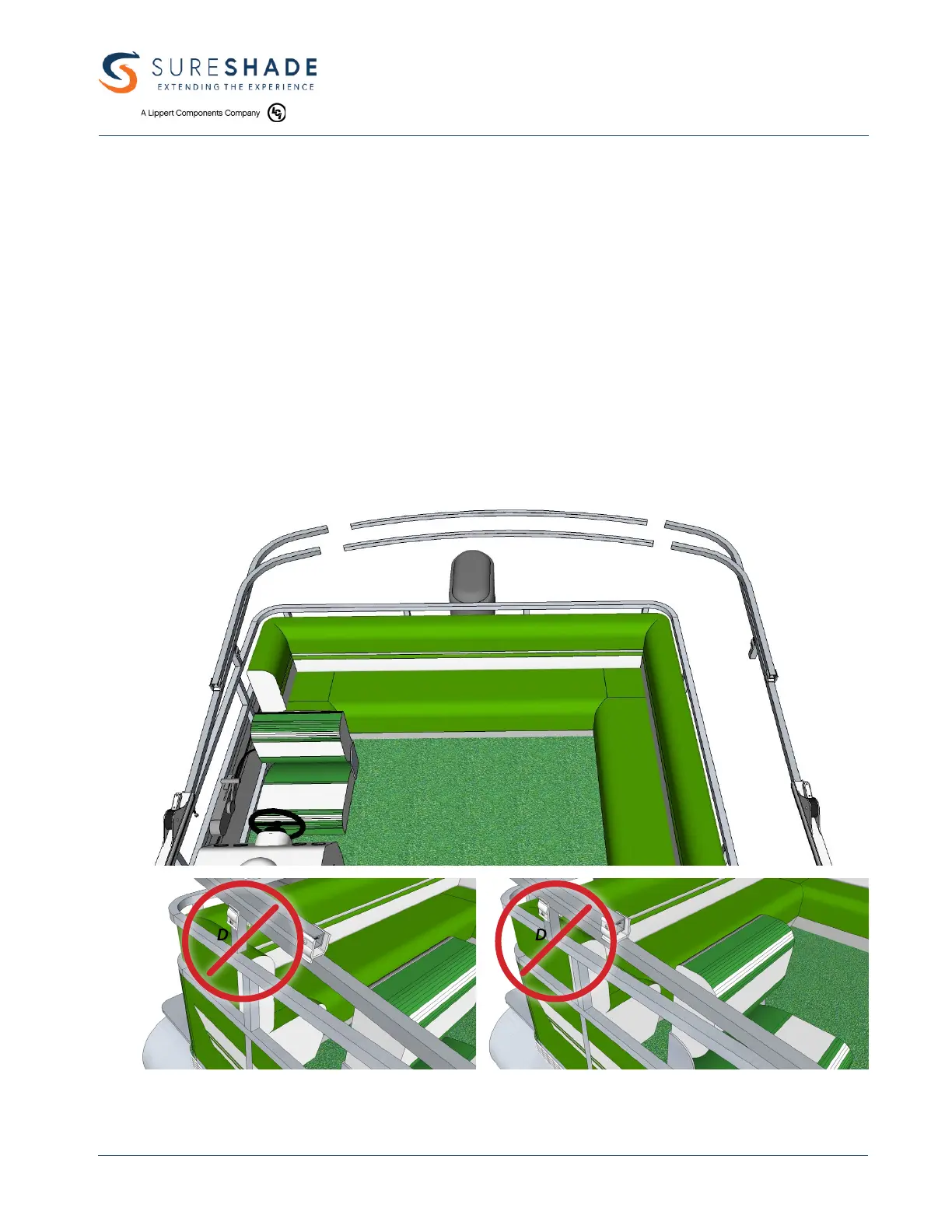

Begin by inserting center bows (B) into the already mounted actuator assembly (C), about an inch for now.

Next, insert the center bows (B) into the other actuator assembly (A) until the Bimini width matches the boat’s

rear frame width until the stand-o legs (D) rests as near the center of the side rail as possible. Now, move

assembly (A) forward and aft until the left actuator is in line with the right actuator. Mark the bows' position and

repeatSteps 3-5.

D D
