SurgeX Defender Series - Data Interface Cable

User Manual
© 2013 SurgeX / Electronic Systems Protection, Inc. / Technical Support 800.645.9721 / www.surgex.com / 12

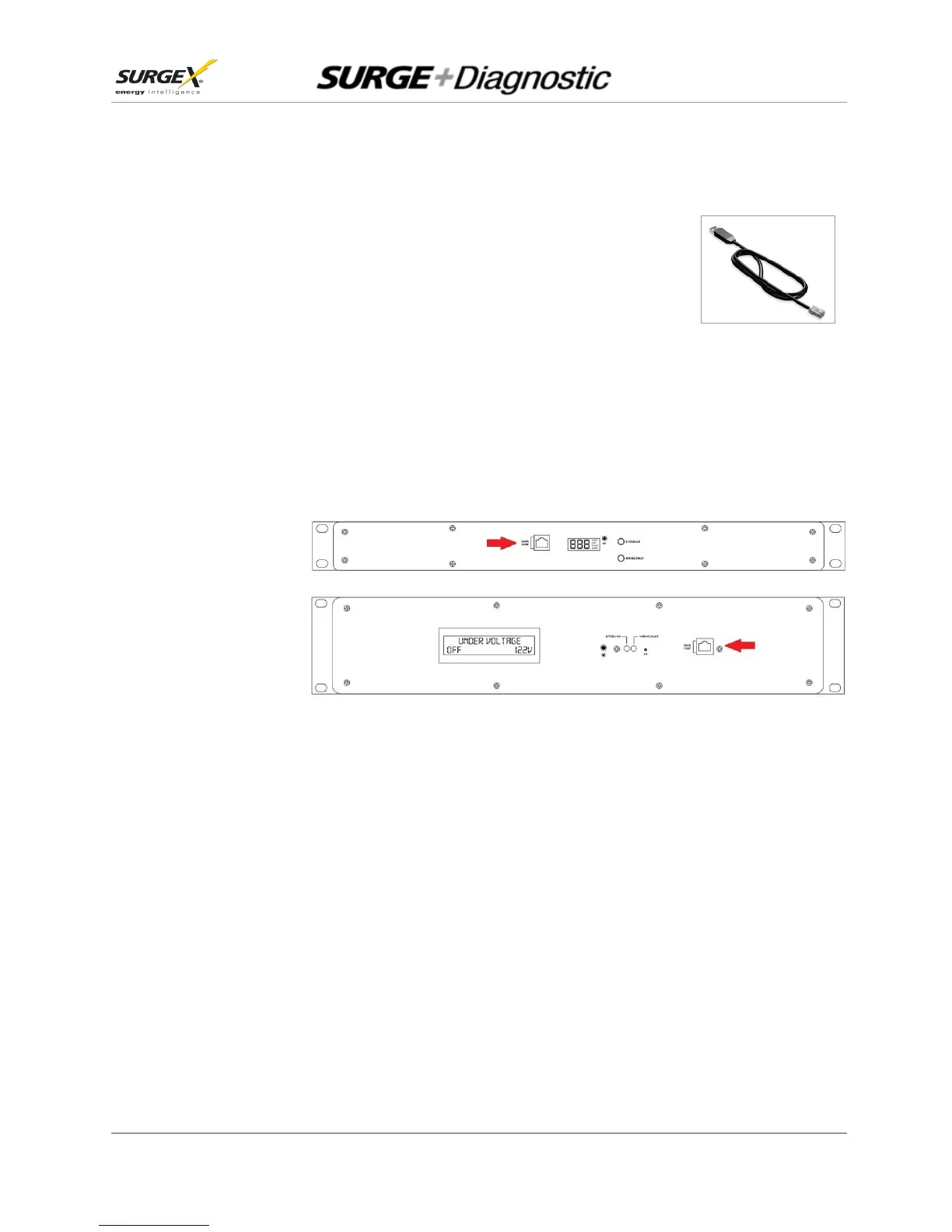

3.3 Data Interface Cable
a. The Data Interface Cable consists of a USB connection on one
end, and an RJ-11 connection on the opposite end.
b. The USB connection plugs into an available USB port on your PC.
The RJ-11 connection plugs into the RJ-11 “OUT” Jack (labeled
“Data Port”) on the Surge + Diagnostic, which is the jack closest to
the LCD Event Monitor and RST button.
c. Instructions for Data Retrieval
i. Connect the Surge + Diagnostic Data Interface Cable into the USB port on
your PC.
ii. Connect the Surge + Diagnostic Data Interface Cable into the RJ-11 Jack
labeled “Data Port” on the front panel.
iii. Open Diagnostic Software.
