4. DIAGNOSTIC SOFTWARE
4.1 How to Connect to Surge + Diagnostic
a. Starting the Program:
Open the “ESP Next Gen PCS” Diagnostic Software
(located under “Programs” on your PC Start Menu).
b. Please Note: A shortcut to this manual will also be located in this location on your PC for future reference
and troubleshooting.
i. Connecting the Software:
1. Make sure that the USB Data Cable is connected to both the Surge + Diagnostic and your PC (for
instructions on how to connect USB Data Cable, refer to Section 3 – 3.3 - c : Hardware/USB Data
Interface Cable/Instructions for Data Retrieval – listed above)

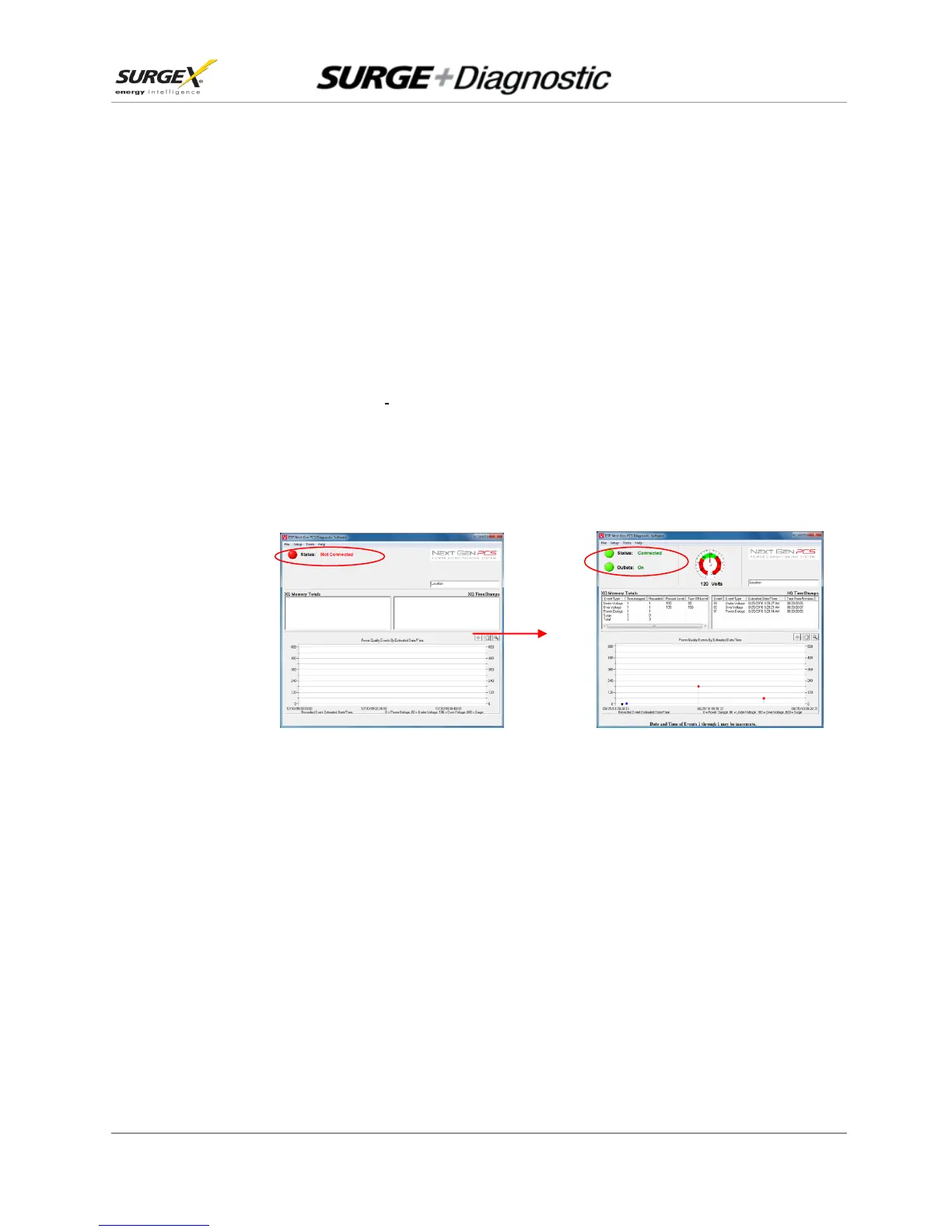

2. Press the red button beside “Status” to connect to the Surge + Diagnostic. The Connection Status
will change to Green and the top of the screen will indicate that Filter is Connected.
