0A-3 General Information:
Wire Color Symbols
CENHN1110101003
There are two kinds of colored wire used in this product.
One is single colored wire and the other is dual colored (striped) wire.
The single colored wire uses only one color symbol. example: B (Black).
The dual colored wire uses two color symbols. example: Bl/B.
The first symbol represents the base color of the wire and the second symbol represents the color of the stripe.
Example: Bl/B (Blue with Black stripe).
Warning, Caution and Information Label Locations
CENHN1110101004

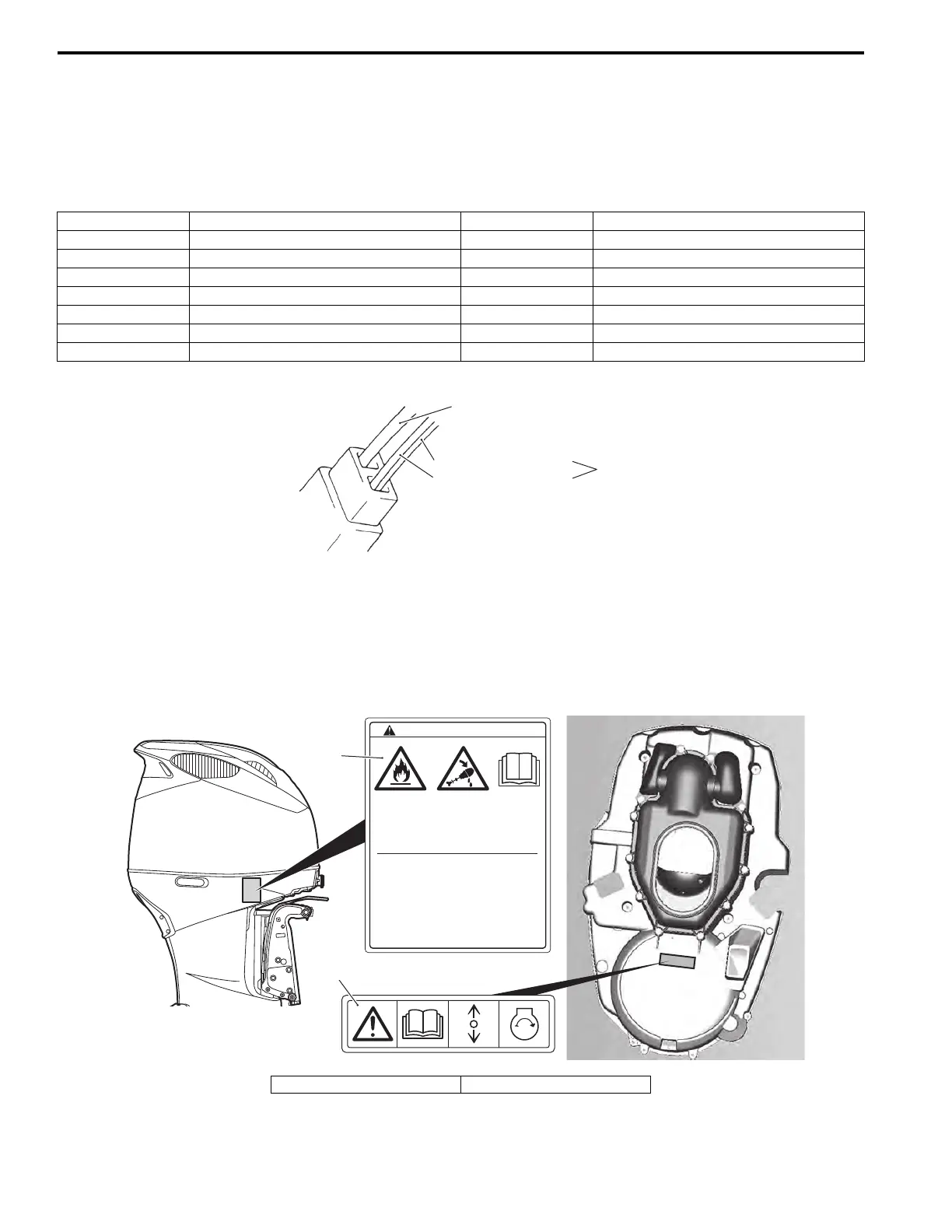

The figure shows main labels among others that are attached to outboard motor.
When servicing outboard motor, refer to WARNING/CAUTION instructions printed on labels.
If any WARNING/CAUTION label is found stained or damage, clean or replace it as necessary.
Do not reuse a label after it has been removed. Always use new label.
Symbol Wire color Symbol Wire color
B Black Lg Light green
Bl Blue O Orange
Br Brown P Pink
Dg Dark green R Red
G Green V Violet
Gr Gray W White
Lbl Light blue Y Yellow
B (Base Color: Black)
Bl (Base Color: Blue)
Bl/B
B (Stripe Color: Black)
2
WARNING
AVERTISSEMENT
• Fuel can leak creating a fire hazard if
you lay motor on its side. Drain fuel
completely from vapor separator or
carburetor before laying motor on its side.
• See owner’s manual for details.
• Le carburent risque de fuir et de
présenter un danger d’incendie si le
moteur est placé sur le côté.
Vidanger entièrement le carburant du
séparateur de vapeurs ou du
carburateur avant de procéder.
• Pour plus de détail, voir le manuel
du propriétaire.
1
1. Label, engine cover 2. Label S.I.G.P.
