6-2 FUEL SYSTEM AND THROTTLE BODY
FUEL DELIVERY SYSTEM
The fuel delivery system consists of the fuel tank, fuel pump, fuel filters, fuel feed hose, fuel delivery pipe
(including fuel injectors) and fuel pressure regulator. There is no fuel return hose. The fuel in the fuel tank is
pumped up by the fuel pump and pressurized fuel flows into the injector installed in the fuel delivery pipe.
Fuel pressure is regulated by the fuel pressure regulator. As the fuel pressure applied to the fuel injector (the
fuel pressure in the fuel delivery pipe) is always kept at absolute fuel pressure of 3.0 kgf/cm
2
(300 kPa, 43
psi), the fuel is injected into the throttle body in conic dispersion when the injector opens according to the
injection signal from the ECM.
The fuel relieved by the fuel pressure regulator flows back to the fuel tank.

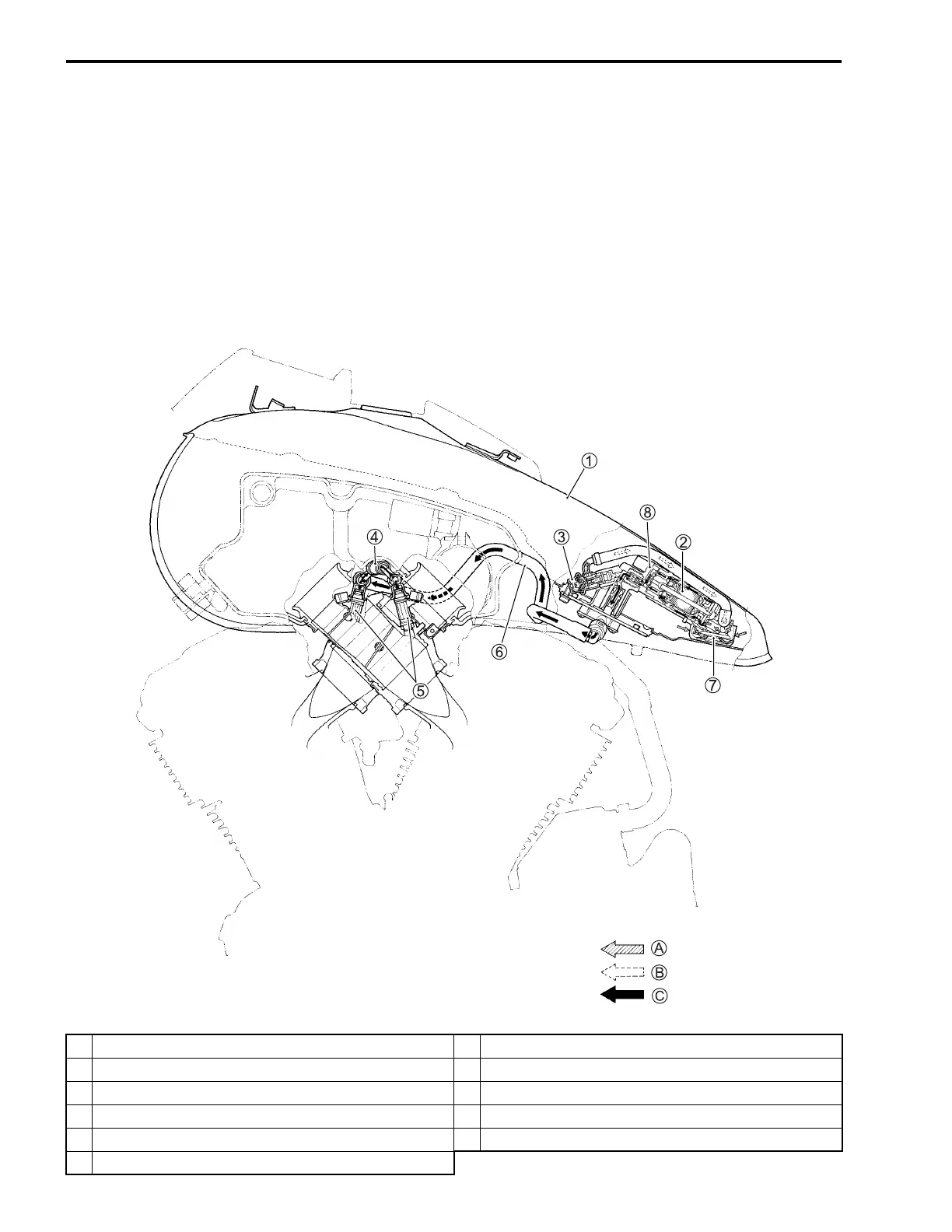

1 Fuel tank 7 Fuel mesh filter (For low pressure)
2 Fuel filter (For high pressure) 8 Fuel pump
3 Fuel pressure regulator A Before-pressurized fuel
4 Fuel delivery pipe B Relieved fuel
5 Fuel injector C Pressurized fuel
6 Fuel feed hose

Suzuki VZR1800N 2008 Specifications

General

Manufacturer	Suzuki
Model	VZR1800N
Year	2008
Displacement	1783 cc
Bore x Stroke	112.0 x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (Transistorized)
Lubrication	Wet sump
Cooling system	Liquid cooled
Transmission	5-speed
Final Drive	Shaft Drive
Rear Brakes	Single disc
Category	Cruiser
Engine Type	V-twin
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual disc
Front Tire	130/70R18M/C 63H
Overall Length	2485 mm
Ground Clearance	140 mm
Fuel Capacity	19 L
