COOLING AND LUBRICATION SYSTEM 8-19

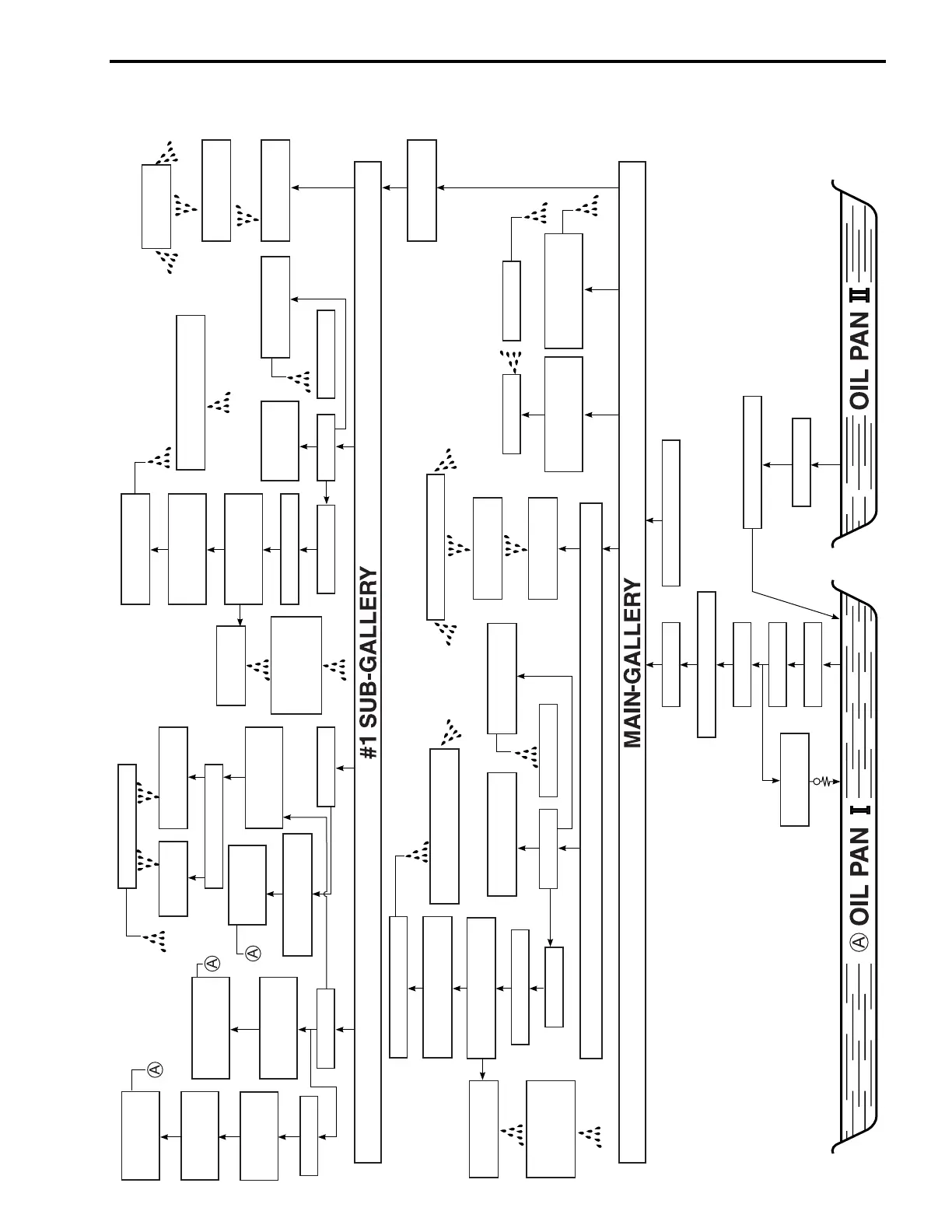

ENGINE LUBRICATION SYSTEM CHART
SECONDARY
BEVEL GEARS
AND BEARING
PRIMARY DRIVEN
GEAR BEARING
SECONDARY
DRIVEN
BEVEL SHAFT
SECONDARY
DRIVEN
GEAR BEARING
#1 PISTON PIN
BEARING
IDER SHAFT AND
BEARING
CAM CHAIN
TENSION
ADJUSTER
#1 CAMSHAFT
JOURNALS,
CAM FACES
AND TAPPETS
#1 EXHAUST
CAMSHAFT
#2 EXHAUST CAMSHAFT
#2 CYLINDER HEAD
#2 CYLINDER
#2 OIL JET
ORIFICE GENERATOR
#2 CAM CHAIN
#2 EXHAUST CAMSHAFT
JOURNAL HOLDER
#2 CAMSHAFT JOURNALS,
CAM FACES AND TAPPETS
#2 CAM CHAIN
TENSION ADJUSTER
#2 INTAKE CAMSHAFT
JOURNAL HOLDER
#1 CAMSHAFT JOURNALS,
CAM FACES AND TAPPETS
#1 INTAKE
CAMSHAFT
#1 EXHAUST
CAMSHAFT
JOURNAL HOLDER
#1 PISTON AND
CYLINDER WALL
OIL PIPE
OIL JET
OIL JET
COUNTERSHAFT
GEARS AND
BUSHINGS
BALANCER
SHAFT LEFT-SIDE
BEARING
DRIVESHAFT
RIGHT-SIDE BEARING
DRIVESHAFT
GEARS AND
BUSHINGS
CLUTCH
PUSH PIECE
COUNTERSHAFT
LEFT-SIDE
BEARING
CLUTCH PLATES
BALANCER SHAFT
#1 PISTON
COOLING OIL JET
OIL PASSAGE in
OIL PAN
#1 CAM CHAIN
#1 CYLINDER HEAD
#1 CYLINDER #1 OIL JET
#1 INTAKE
CAMSHAFT
JOURNAL HOLDER
#2 INTAKE
CAMSHAFT
#2 CAMSHAFT
JOURNALS,
CAM FACES AND
TAPPETS
#2 SUB-GALLERY
By-pass
OIL FILTER
LOWER CASE
OIL PUMP
OIL STRAINER
OIL PASSAGE in OIL PAN
OIL PRESSURE SWITCH
OIL RETURN PUMP
OIL STARINER
OIL PRESSURE
REGULATOR
#2 PISTON AND
CYLINDER WALL
#2 PISTON
COOLING OIL JET
CRANKSHAFT
LEFT-SIDE
JOURNAL BEARING
CRANKSHAFT
RIGHT-SIDE
JOURNAL BEARING
#2 PISTON PIN BEARING
IDRER SHAFT AND
BEARING
