9-60 CHASSIS

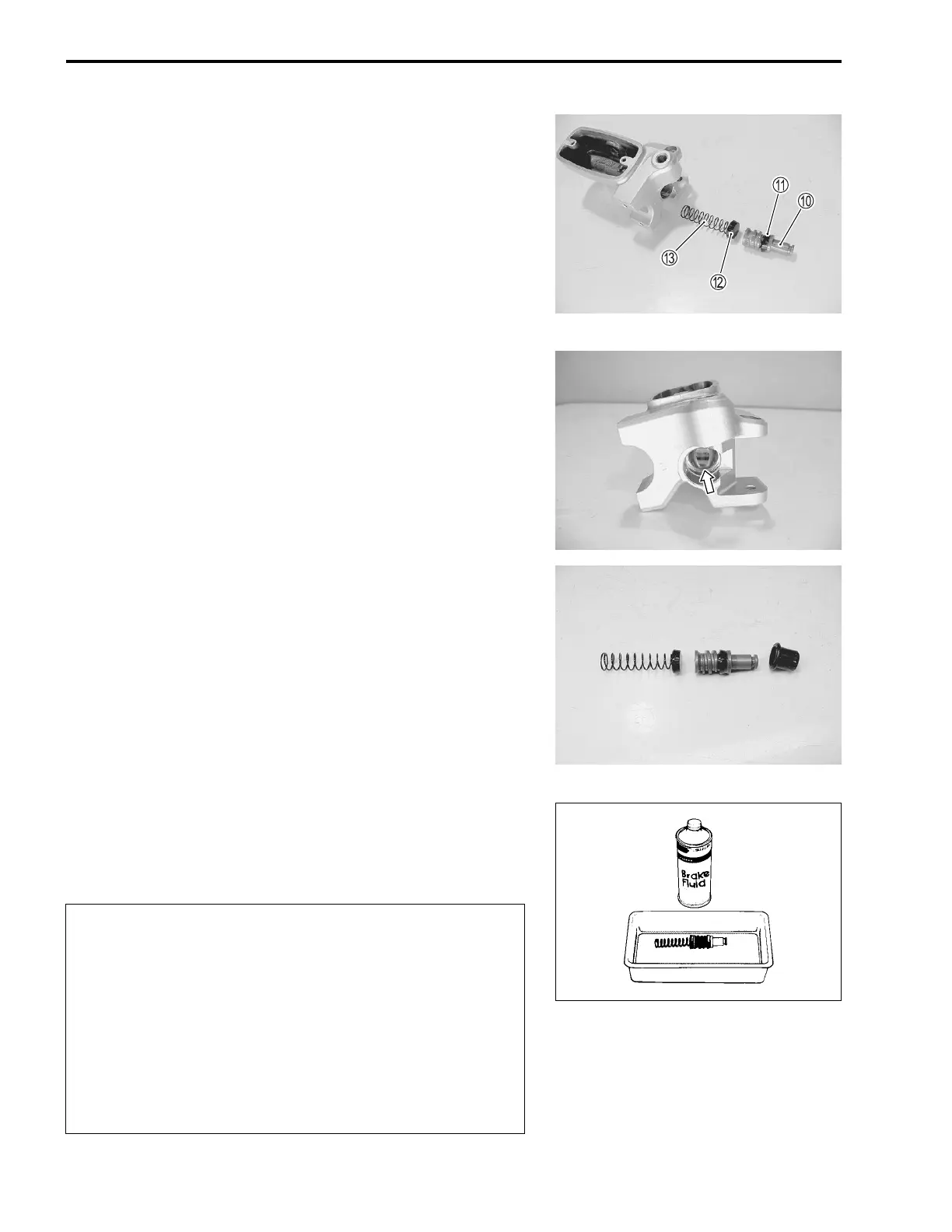

• Remove the following parts.
0 Piston
A Secondary cup
B Primary cup
C Return spring
MASTER CYLINDER INSPECTION
MASTER CYLINDER
• Inspect the master cylinder bore for any scratches or damage.
If any defects are found, replace the master cylinder with a
new one.
PISTON AND RUBBER PARTS
• Inspect the piston surface for any scratches or other damage.
• Inspect the primary cup, secondary cup, dust boot and return
spring for wear or damage.
MASTER CYLINDER REASSEMBLY
Reassemble the master cylinder in the reverse order of disas-
sembly. Pay special attention to the following points:
$
- Specification and classification: DOT 4
* Wash the master cylinder components with new
brake fluid before reassembly.
* Do not wipe the brake fluid off after washing the
components.
* When washing the components, use the specified
brake fluid. Never use different types of fluid or
cleaning solvents such as gasoline, kerosine, etc.
* Apply brake fluid to the master cylinder bore and all
of the master cylinder components before reassem-
bly.

Suzuki VZR1800N 2008 Specifications

General

Manufacturer	Suzuki
Model	VZR1800N
Year	2008
Displacement	1783 cc
Bore x Stroke	112.0 x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (Transistorized)
Lubrication	Wet sump
Cooling system	Liquid cooled
Transmission	5-speed
Final Drive	Shaft Drive
Rear Brakes	Single disc
Category	Cruiser
Engine Type	V-twin
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual disc
Front Tire	130/70R18M/C 63H
Overall Length	2485 mm
Ground Clearance	140 mm
Fuel Capacity	19 L
