CHASSIS 9-23
STEERING

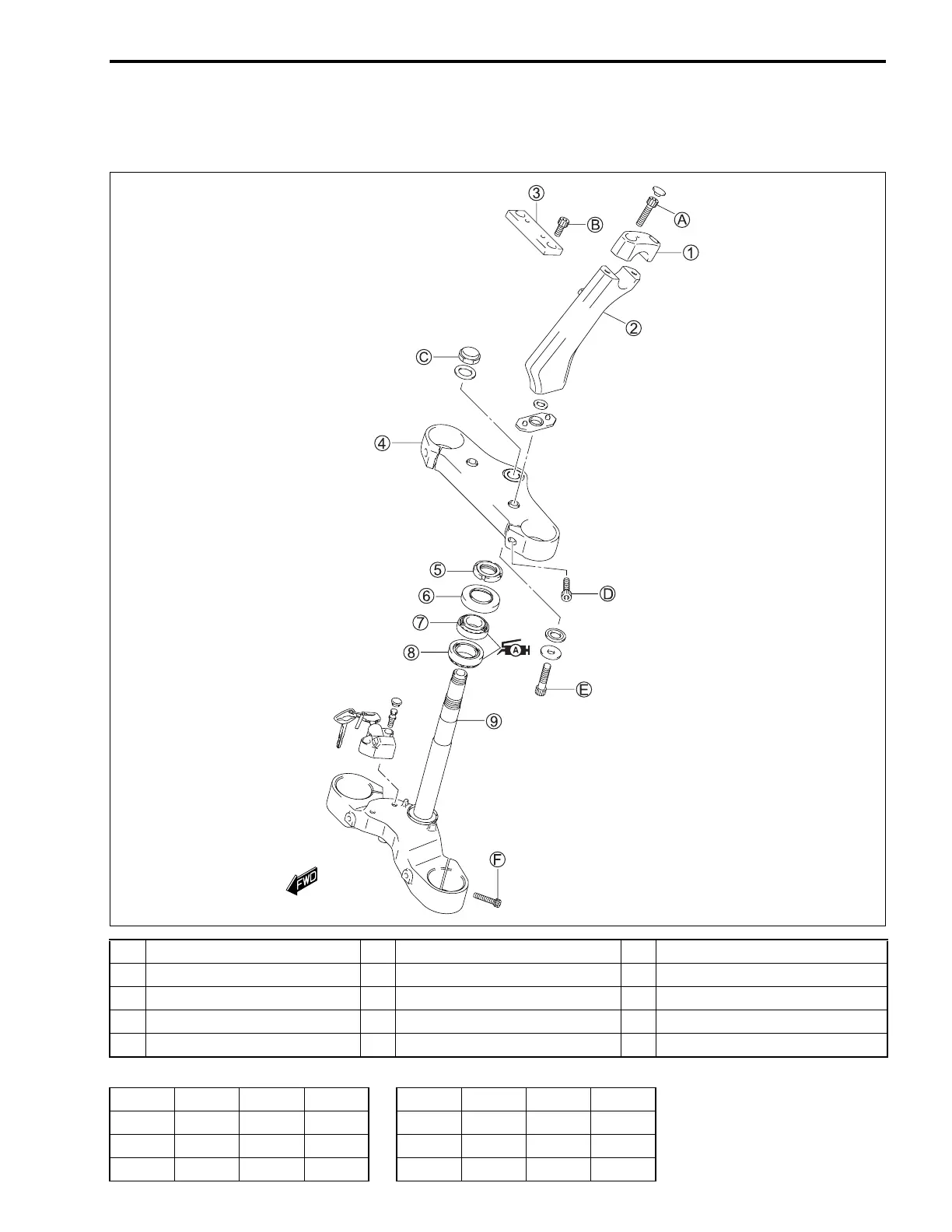

CONSTRUCTION
#
1 Handlebar clamp 6 Dust seal B Handlebar holder bracket bolt
2 Handlebar clamp holder 7 Steering stem upper bearing C Steering stem head nut
3 Handlebar holder bracket 8 Steering stem lower bearing D Front fork upper clamp bolt
4 Steering stem upper bracket 9 Steering stem E Handlebar holder bolt
5 Steering stem nut A Handlebar clamp bolt F Front fork lower clamp bolt
ITEM N·m kgf-m lb-ft ITEM N·m kgf-m lb-ft
A 23 2.3 16.5 D 23 2.3 16.5
B 23 2.3 16.5 E 85 8.5 61.5
C 90 9.0 65.0 F 23 2.3 16.5
