Suzuki VZR1800N 2008 User Manual

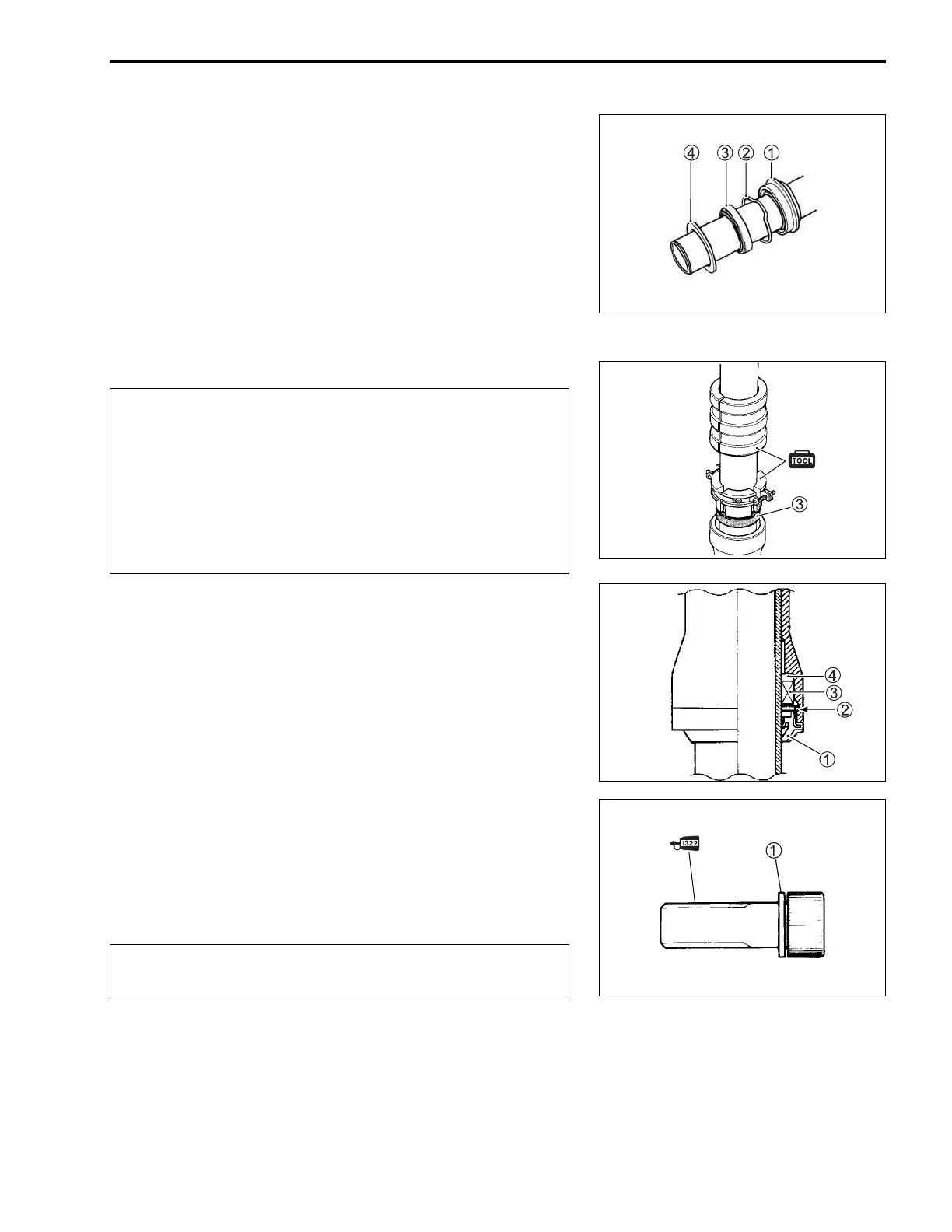

CHASSIS 9-19
REASSEMBLY
Reassemble the front fork in the reverse order of disassembly.
Pay attention to the following points:
OIL SEAL AND DUST SEAL
• Install the dust seal, oil seal stopper ring, oil seal and oil seal
retainer onto the inner tube.
1 Dust seal
2 Oil seal stopper ring
3 Oil seal
4 Oil seal retainer
$
• Insert the inner tube into the outer tube and fit the oil seal and
dust seal with the special tool.
% 09940-52861: Front fork oil seal installer
NOTE:
Stamped mark on the oil seal should face outside.
DAMPER ROD BOLT
• Insert the inner rod/damper rod (cartridge) into the inner tube.
• Apply THREAD LOCK SUPER to the damper rod bolt.
* 99000-32110: THREAD LOCK SUPER “1322”
or equivalent
$
* When installing the oil seal to outer tube, be careful
not to damage the oil seal lip.
* Do not use solvents for washing to prevent oil seal
damage.
* Apply fork oil to the Anti-friction metals and lip of the
oil seal.
* Make sure that the oil seal stopper ring has been fit-
ted securely.
Use a new damper rod bolt gasket 1 to prevent oil
leakage.

Suzuki VZR1800N 2008 Specifications

General

Manufacturer	Suzuki
Model	VZR1800N
Year	2008
Displacement	1783 cc
Bore x Stroke	112.0 x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (Transistorized)
Lubrication	Wet sump
Cooling system	Liquid cooled
Transmission	5-speed
Final Drive	Shaft Drive
Rear Brakes	Single disc
Category	Cruiser
Engine Type	V-twin
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual disc
Front Tire	130/70R18M/C 63H
Overall Length	2485 mm
Ground Clearance	140 mm
Fuel Capacity	19 L
