SV106 user's manual

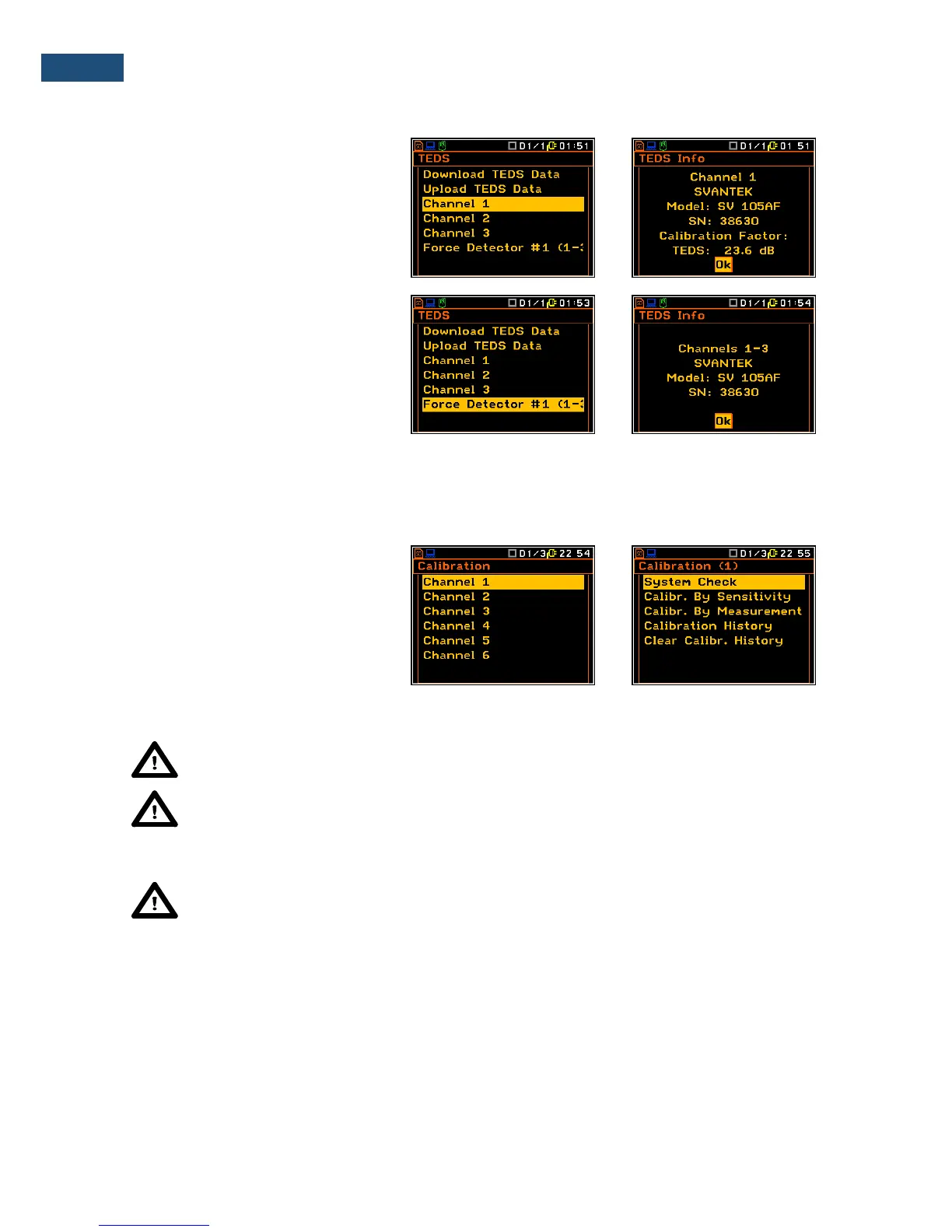

Upon entering Channel # menu option,
the instrument will display information
on identification and calibration factor of
the transducer. Press the <ENTER>
push-button to close the view.
(Загрузка данных TEDS).
<ENT>
In case SV 105AF is used, an additional
entry will be available in the view:
Force Detector with following TEDS
Info sub-view.
<ENT>
4.2.2. Calibration of the instrument channels – Channel x
The Channel x sub-list appear after
entering the Vibration option in
Calibration menu. It consists of four
positions: Calibr. By Sensitivity,
Calibr. By Measurement, which are
used to perform the calibration,
Calibration History used for checking
the parameters of the previous
calibrations and Clear Calibr. History
to delete previous calibration
information.
<ENT>
Notice: The calibration factor is always added to the results in the Level Meter, 1/1 Octave,
1/3 Octave, FFT modes.
Notice: The calibration level and the calibration result are expressed in different units depending
on the settings of the instrument. The metric or non-metric Vibration units are set in the
Vibration Units window (path: <Menu> / Auxiliary Setup / Vibration Units). Additionally, the
linear or logarithmic units are set in the Display Scale window (path: <Menu> / Display /
Display Scale).
Notice: It is not possible to calibrate the instrument during the execution of the measurements. It
is possible to open different lists and sub-lists but the positions in these lists are not displayed
inversely and so - not accessible. The “►” icon indicates that the instrument is in the
measurement process. In order to change the sensitivity the current measurement in progress
must be finished!
