SV106 user's manual
1.
INTRODUCTION

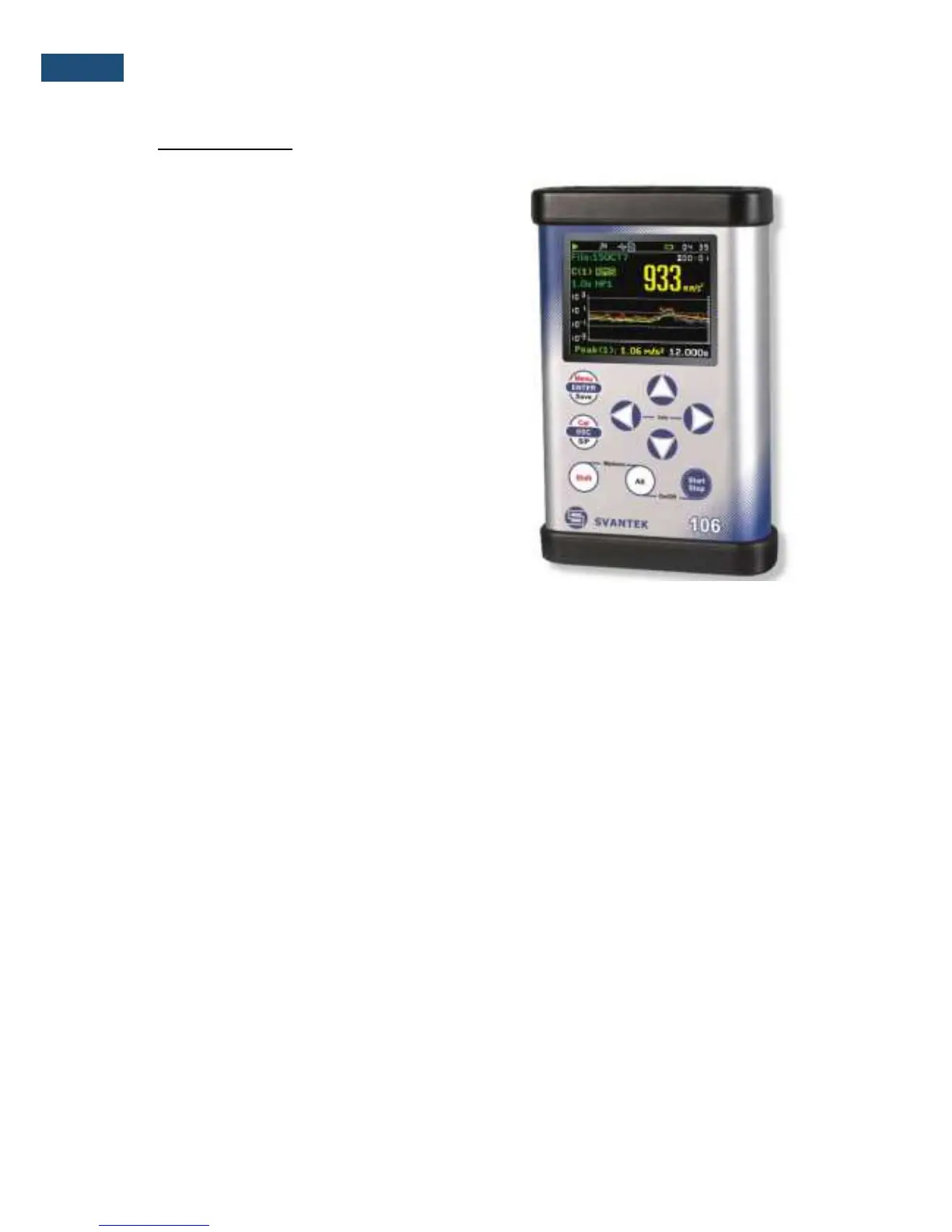

The SV 106 is a new six-channel human vibration meter
and analyser. The instrument meets the ISO 8041:2005
standard and it is an ideal choice for measurements
according to ISO 2631-1,2&5 and ISO 5349.
This small-size instrument performs simultaneous
measurements with two triaxial accelerometers (e.g.
both-hands vibration or triaxial SEAT transmission
measurements are possible).The RMS, VDV, CRF,
OVL, PEAK, P–P, MTVV, MAX, VECTOR, A(8), ELV,
EAV results with all required weighting filters for the
HVM measurements are available with this instrument.
Using the computational power of its digital signal
processor the SVAN 106 instrument can, simultaneously
to the broad band meter mode, perform real time
1/1 Octave or 1/3 Octave analysis.
Advanced time-history logging and time-domain signal
recording (according to ISO 2631-5) to the built-in Micro
SD flash card give almost unlimited capabilities of data
storage. Results can be easily downloaded to PC using
the high speed USB interface and the Supervisor
software.
The Whole-Body vibration measurement is now even easier thanks to the SV 38V seat-accelerometer
which can be placed directly on the seat-cushion, on the floor or fixed to the back of the seat.
Evaluation of the grip force is possible with the dedicated “integrated adapter” SV 105 AF.
Fast USB 1.1 interface (12 MHz) creates real time link for the PC "front-end" application of the SVAN 106
instrument. The measurement results can be downloaded to PC using the above mentioned interfaces.
The instrument is powered from four AA standard alkaline or rechargeable batteries (i.e. NiMH – a separate
charger is required). Powering the instrument from the USB interface is also possible. Robust and
lightweight design accomplishes the exceptional features of this new generation human vibration exposure
instrument.
1.1. SV106 main features
• Human Vibration measurements meeting ISO 8041:2005,
• ISO 2631-1,2&5 (including VDV and MTVV) and ISO 5349-1 & 2
• Six channels for acceleration (IEPE type) and two channels for force measurements
• Whole-Body measurements:
- Low-cost and low power seat accelerometer SV 38V
• Hand-Arm measurements:
- SV 105A integrated triaxial accelerometer including hand straps
- SV 105AF integrated triaxial accelerometer including hand straps and grip force sensor
• - SV 150 triaxial accelerometer with adapter for direct attaching to hand-held power toolsTime-
domain signal waveform recording (meeting ISO 2631-5) as option
