5.1 Active Home Theater
Speaker System With Bluetooth
• For more accurate perception, the tweeters should be at the listener’s ear level.
• Do not locate the speakers in niches. Such placement can affect the sound badly, especially in
the lows.
• The subwoofer emits non-directional sound, therefore it can be located in any place of the room
where it sounds the best.
Connecting speakers to the subwoofer
• Connect the speakers to the subwoofer AUDIO OUTPUT p as shown in Fig. 6, using audio cables
(included). Mind that the (+) terminals of the speakers should be connected to the (+) terminals of
the subwoofer (+ → +), while (–) terminals of the speakers should be connected to the (+) terminals
of the subwoofer (– → –).
Front right
speaker
Front left
speaker
Rear left
speaker
Rear right
speaker
Center
speaker
FM-antenna

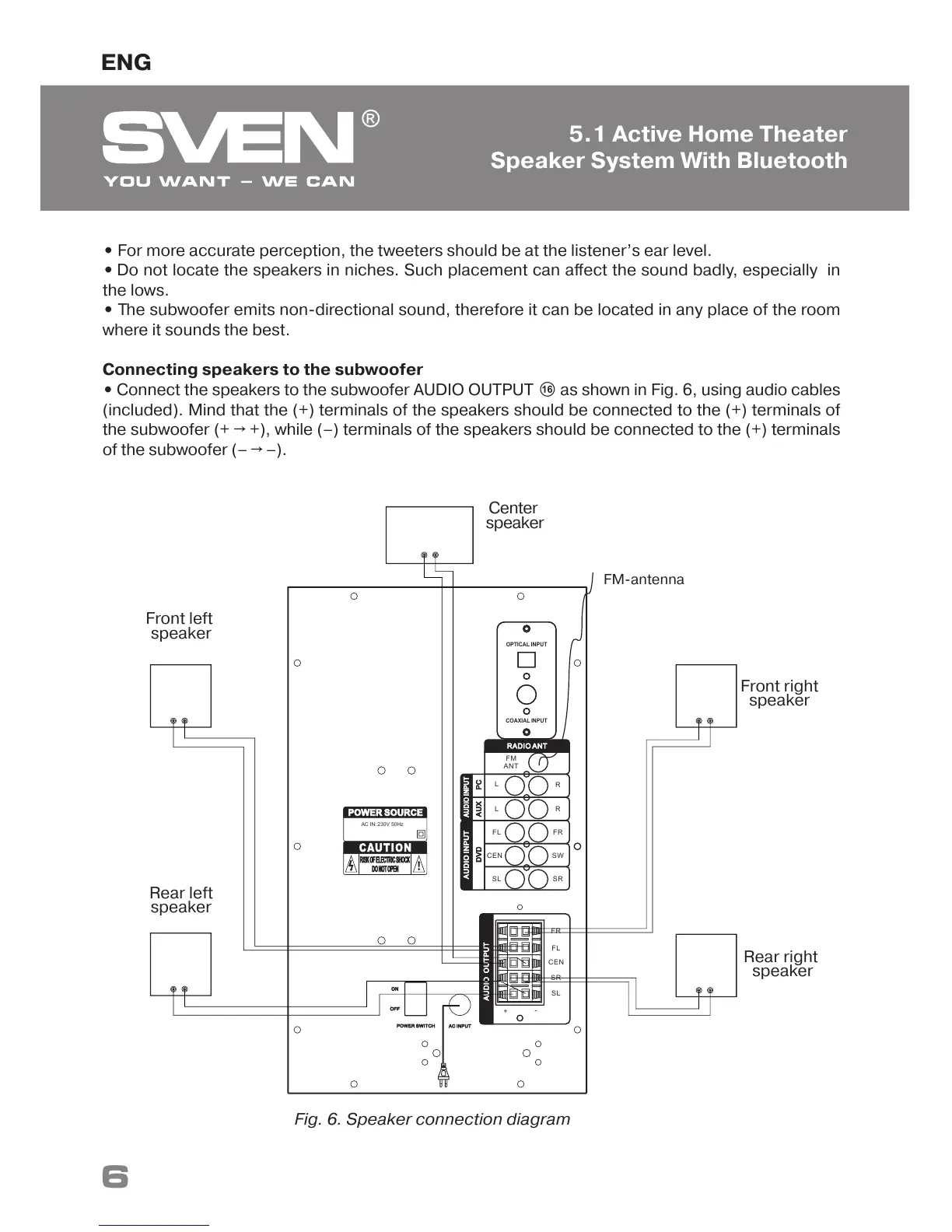

Fig. 6.
Speaker connection diagram
