Remote control
a FOLDER DOWN: move to next folder
b FOLDER UP: move to previous folder
c : next track (in the Player mode)
d : previous track (in the Player mode)
e -/+: volume control buttons
f 0-9: numeric buttons for entering a track number
g MUTE: MUTE button
h : play/pause (in the Player mode)
i EQ: equalizer mode selection button (in the МР3 player mode
only)
j MODE: AUDIO INPUT or USB/SD source selection
k USB/SD: selection between USB flash and SD card
Notes:
• Before operating the remote control, extract the bat-
tery, remove the film protecting the battery from dis-
charge during transportation, and insert the battery back
into the remote control.
• Use the remote control at an angle no more than 30 deg-
rees, no more than 7 meters away from the IR receiver.
• Direct the remote control at the IR receiver display on the subwoofer.
• If the remote control is not working, check the battery and replace the discharged bat-
tery with a new one.
• Remove the battery from the remote control if the device is left unused for a long period
of time (more than a week).
5. PREPARATION AND OPERATION
Speaker placement
• Place the speakers symmetrically to the listener at least one meter away. The subwoofer emits
non-directional sound, therefore it can be located in any place of the room where it sounds the best.
• Place MSS far away from monitors and TV sets, as insignificant image distortion in these super-
sensitive devices is possible.
Installation and operation
MS-1090 Multimedia Speaker System can be connected to virtually any audio source: DVD/CD/
MP3, TV, PC sound card, etc. (see Fig. 5).
• Before making any connections, make sure the MSS is off and unplugged. Then connect the sub-
woofer AUDIO OUTPUT jack l to the satellites with the built-in audio cables (see connection diagram
in Fig. 5).
• To connect the MSS to an audio source, use the included 2RCA to the mini-jack stereo signal
cable. Insert the RCA jacks of the cable into the AUDIO INPUT jack k, and the mini-jack of the
cable – into the Ø 3.5 mm jack of the audio source.

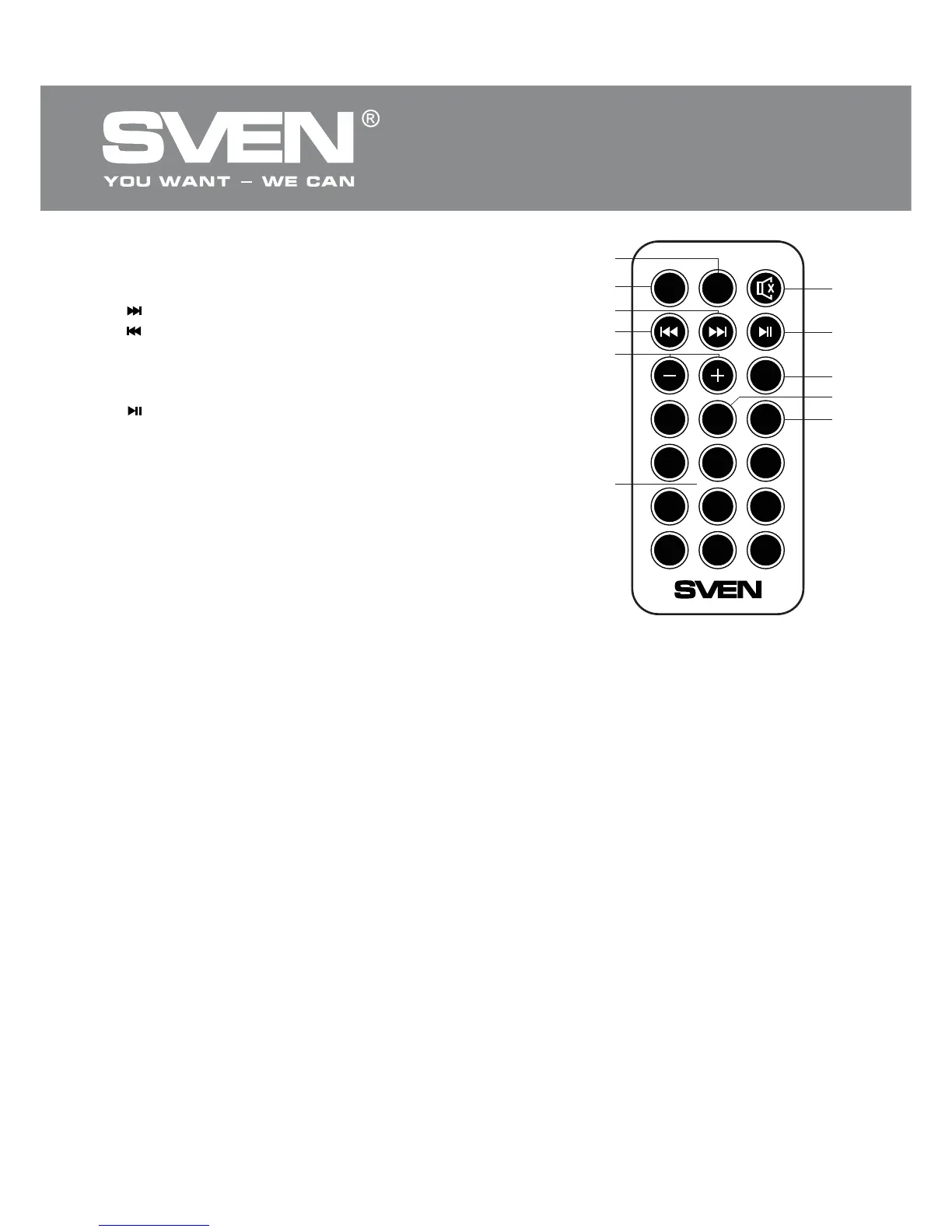

Fig. 4. Remote control
