Special features
• Gamepad, TV, DVD/CD/Media player compatible
• Wireless pairing with the subwoofer
• Wall mountable soundbar
• Separate subwoofer volume control
• Built-in equalizer
• LED display
• 2 HDMI inputs
• HDMI output for video signal transmission
• Remote control
• Wooden (MDF) subwoofer cabinet
r
q
p
on
ml
Fig. 1. Front control panel
Fig. 2. Rear control panel
ab c
d
g
h
i j
k
ef
ENG
3
Operation Manual
SB-550

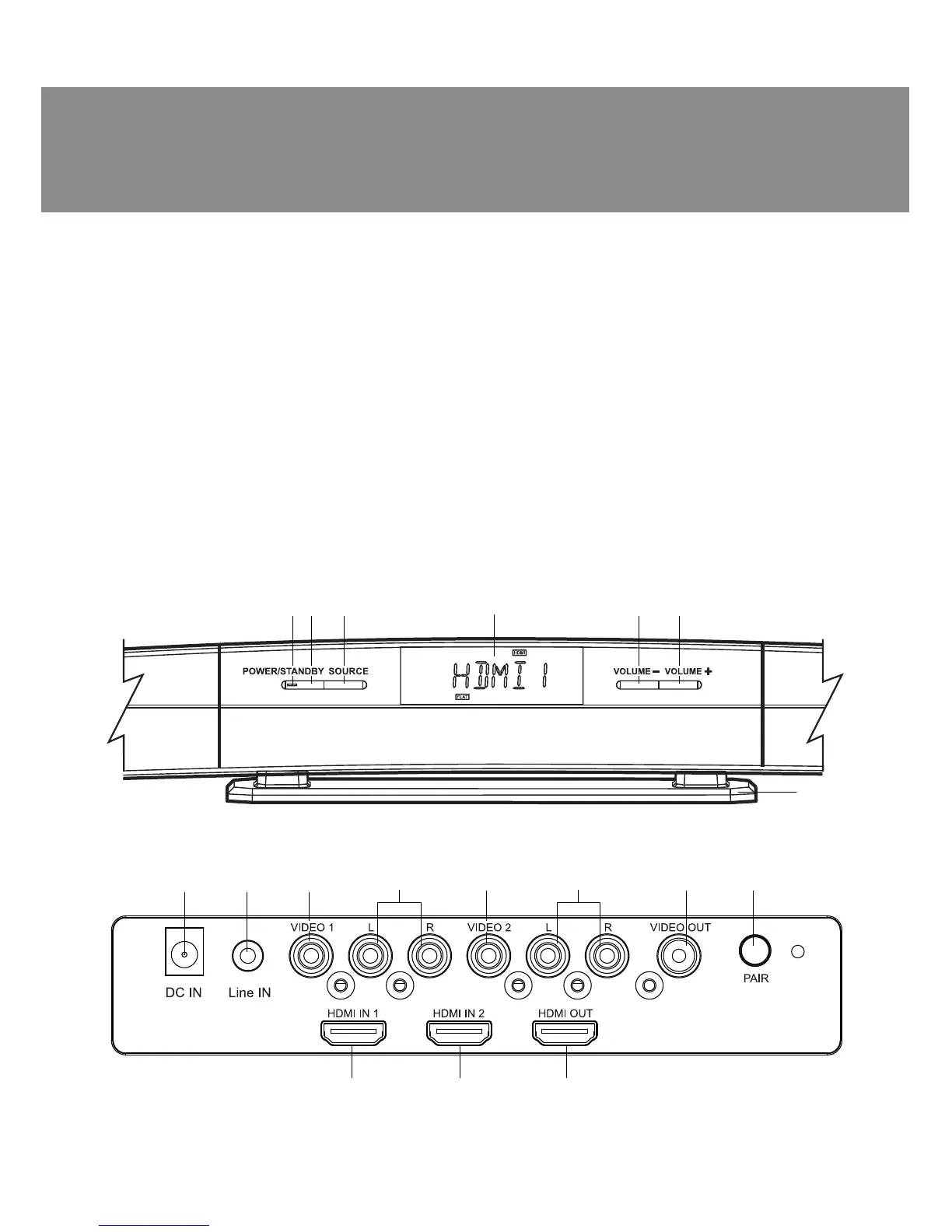

Soundbar front and rear control panels
a Power LED
b POWER/STANDBY: power on/oԚ button
c SOURCE: audio source selection button
d Digital LED display
e VOLUME–: volume down button
f VOLUME+: volume up button
g Table stand
h DC IN: power cable connection jack
i Line IN: line input jack
j VIDEO 1: video signal input jack 1
k L/R: audio signal input jacks 1
l VIDEO 2: video signal input jack 2
m L/R: audio signal input jacks 2
n VIDEO OUT: video signal output jack
o PAIR: wireless pairing button
p HDMI IN 1: high-resolution HDMI input 1
q HDMI IN 2: high-resolution HDMI input 2
r HDMI OUT: high-resolution HDMI output
