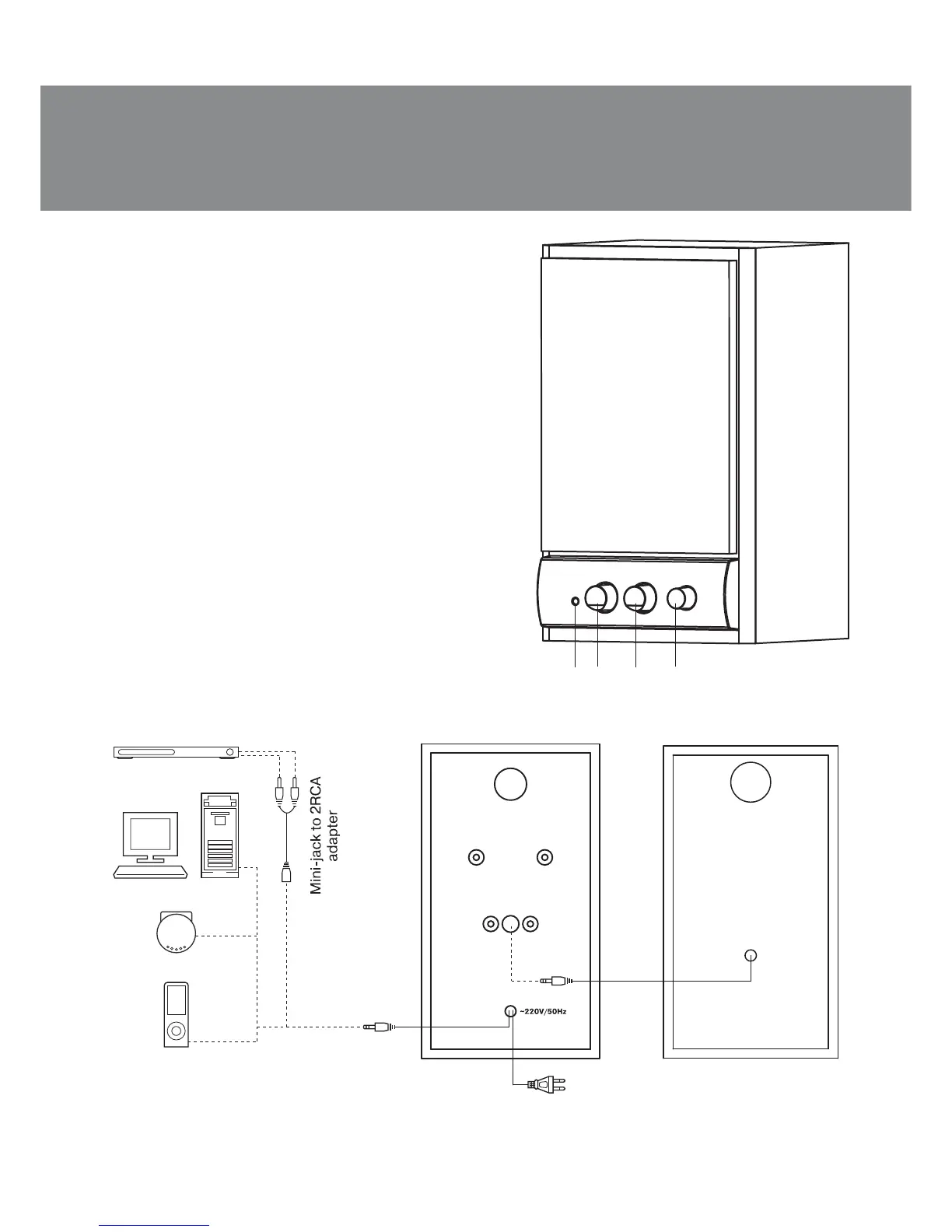

Fig. 1. Control panel
ab c d
TONE VOLUME POWER
Active speaker front side
a Power LED
b TONE: timbre control knob
c VOLUME: volume control knob
d POWER: power switch
5. PREPARATION AND OPERATION
Speaker placement
• Place the speakers symmetrically to the listener
at least one meter away.
• Since the speaker system has a bass reflex port
on the rear panel, place the speakers 20-30 cm
away from a wall or any other obstacle.
• Place MSS far away from monitors and TV sets,
as insignificant image distortion in these super-
sensitive devices is possible.
MSS Connecting
SPS-607/SPS-609 Multimedia Speaker Systems can
be connected to virtually any audio source: DVD/CD,
PC sound card, etc. (Fig. 2).
• Before making any connections, make sure that
the MSS is unplugged.
Fig. 2. Connection diagram
Active speaker Passive speaker
Power cord
CD
PC
DVD
Player
L-SPK
Audio
cable
ENG
3
Operation Manual
SPS-607
SPS-609
