Section III: Operation
3.0.O
PE.SL-160
CHANGING HOOK HEIGHT: 36” TO 54” JIB HEIGHT ADJUSTMENT PROCEDURE
CAUTION:
THE FOLLOWING IS THE RECOMMENDED PROCEDURE FOR CHANGING HOOK HEIGHTS ON THE
ADJUSTABLE JIB FROM 36” TO 54” HEIGHTS. FAILURE TO FOLLOW AND ADHERE TO THIS PROCEDURE
MAY RESULT IN POSSIBLE PROPERTY DAMAGE AND/OR PERSONAL INJURY. MAKE SURE WORK AREA IS
CLEAR OF PEOPLE AND OBSTACLES PRIOR TO CHANGING THE HOOK HEIGHT ON THE ADJUSTABLE JIB.

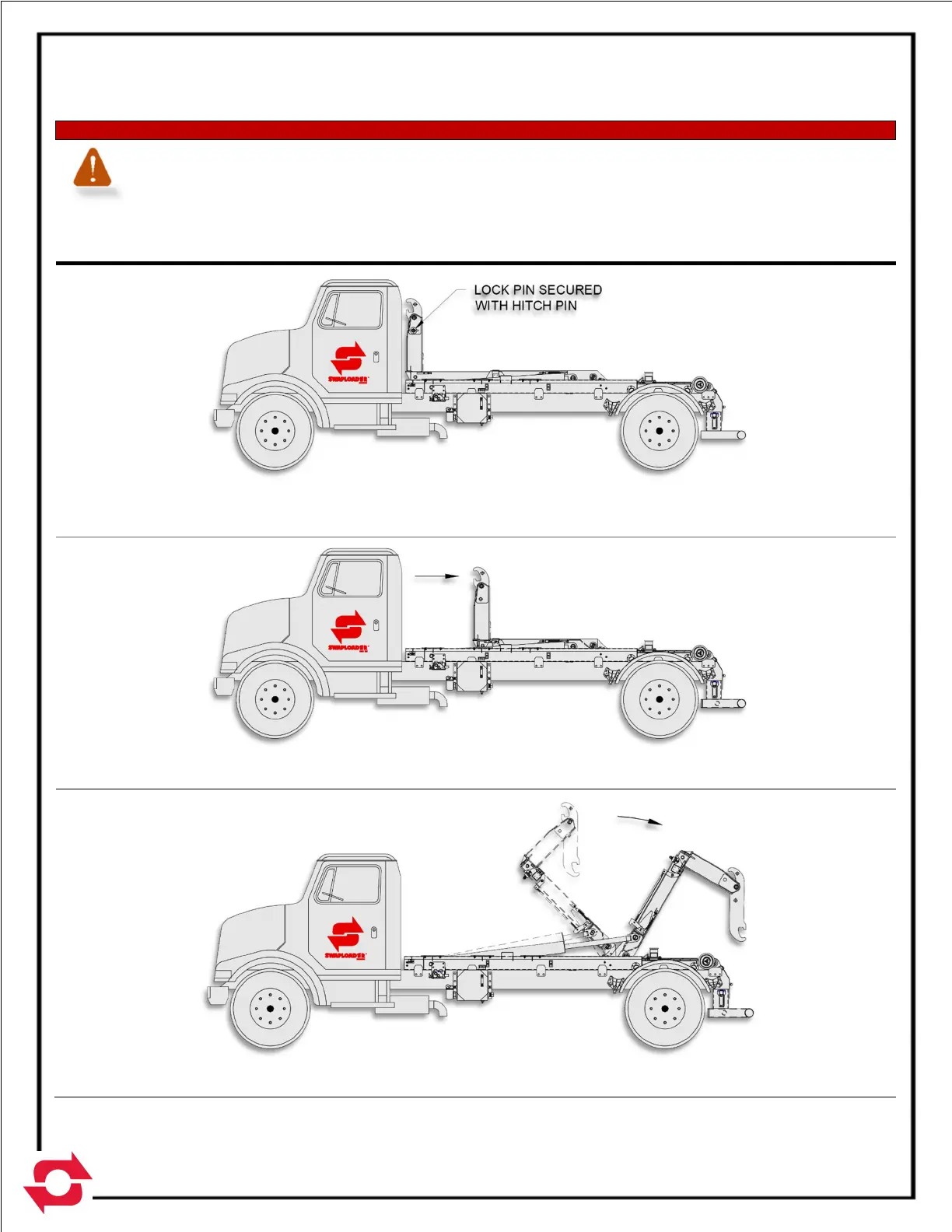

STEP 1. WITH THE TELESCOPIC ARM IN THE TRANSPORT POSITION (AS SHOWN); REMOVE THE HITCH PIN FROM
THE LOCK PIN. THEN PULL THE LOCK PIN LOOSE FROM THE JIB ARM.
STEP 2. RETRACT THE JIB (RIGHT CONTROL LEVER BACKWARD).
STEP 3. TILT THE TELESCOPIC ARM REARWARD (LEFT CONTROL LEVER BACKWARD).
To Next Page
