Section III: Operation
3.0.O
PE.SL-160
CHANGING HOOK HEIGHT: 54” TO 36” JIB HEIGHT ADJUSTMENT PROCEDURE
CAUTION:
THE FOLLOWING IS THE RECOMMENDED PROCEDURE FOR CHANGING HOOK HEIGHTS ON THE
ADJUSTABLE JIB FROM 54” TO 36” HEIGHTS. FAILURE TO FOLLOW AND ADHERE TO THIS
PROCEDURE MAY RESULT IN POSSIBLE PROPERTY DAMAGE AND/OR PERSONAL INJURY. MAKE
SURE WORK AREA IS CLEAR OF PEOPLE AND OBSTACLES PRIOR TO CHANGING THE HOOK
HEIGHT ON THE ADJUSTABLE JIB.

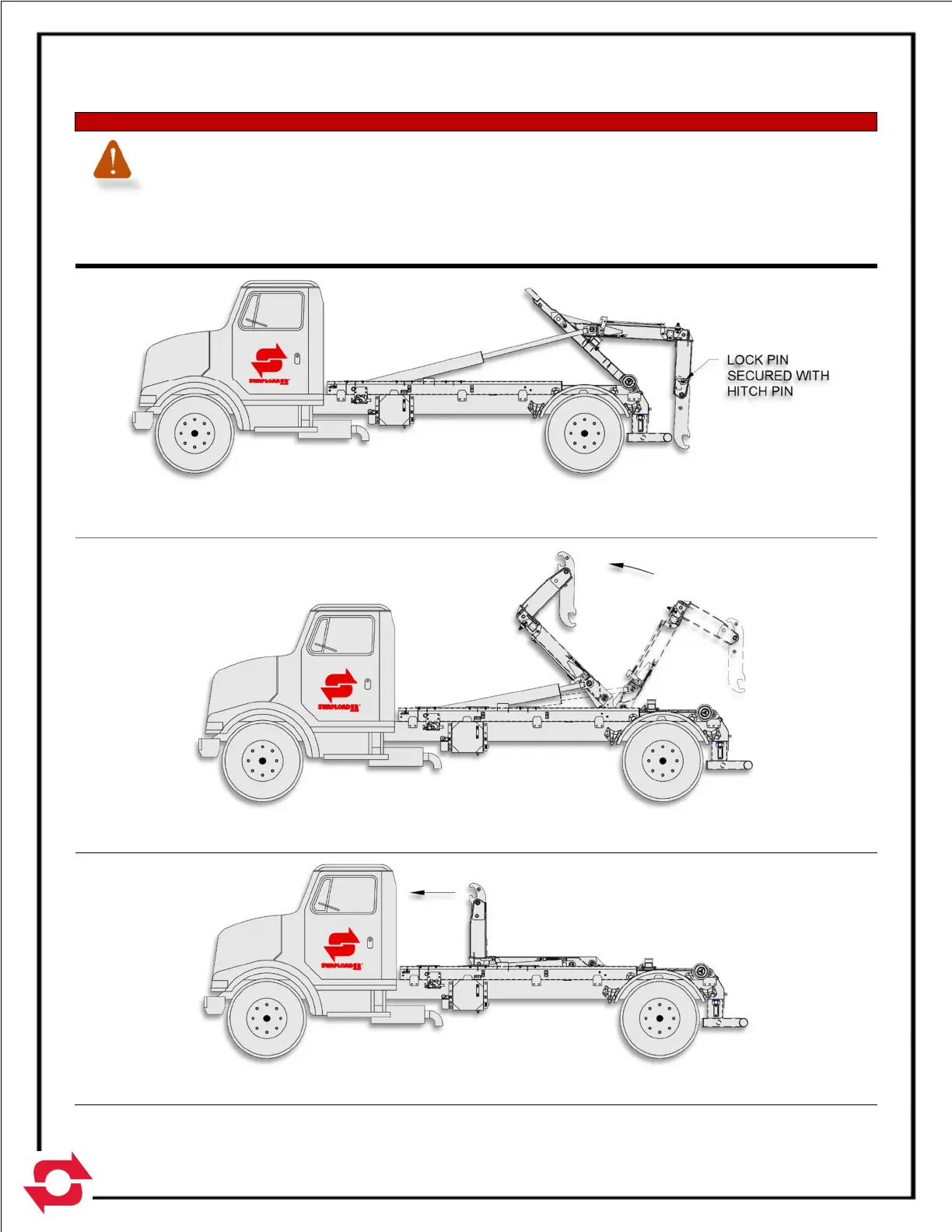

STEP 1. WITH THE TELESCOPIC ARM IN FULL LOAD/UNLOAD POSITION (AS SHOWN); REMOVE THE HITCH PIN
FROM THE LOCK PIN. THEN PULL THE LOCK PIN LOOSE FROM THE JIB ARM.
STEP 2. TILT THE TELESCOPIC ARM TOWARD THE CAB (LEFT CONTROL LEVER FORWARD).
STEP 3. EXTEND THE JIB TOWARD THE CAB (RIGHT CONTROL LEVER FORWARD).
