swaploader SL-160 - Page 77

Section V: Parts
5.0.PAR.SL-160

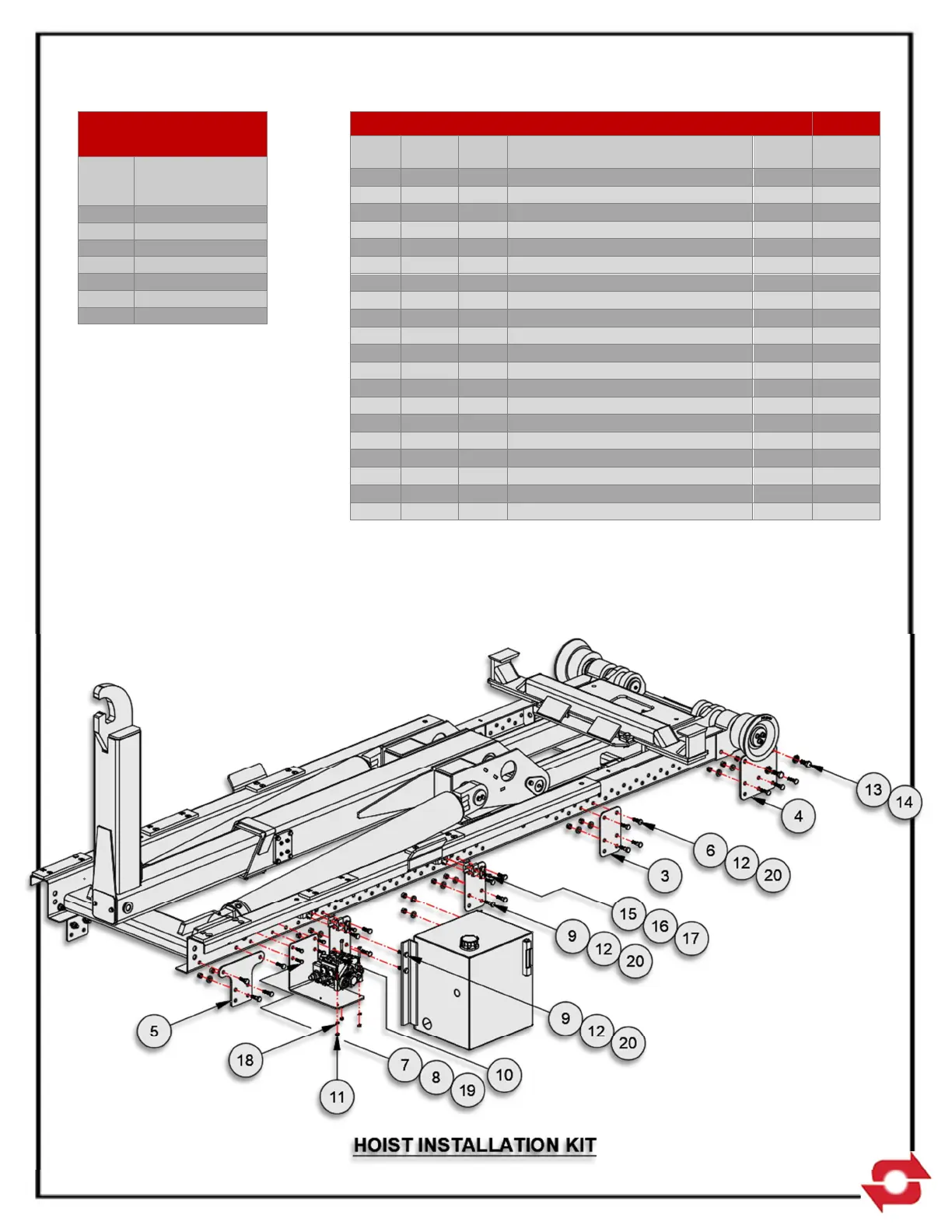

13H70 – HOIST INSTALLATION KIT SL-160
ITEM
PART
#
QTY DESCRIPTION
WT-
lb/ea.
WT-
lb/all
*
1
13H72
1
Parts & Op, SL-160
1.00
1.00
*
2
13H73
1
Decal Assembly, SL-160
0.38
0.38
3
25H89
6
Mount Bkt, 8 1/4 x 5
2.08
12.48
4
25H9
0
2
Mount Bkt, 8 1/4 x 8 3/4
4.41
8.82
5
25H91
2
Mount Bkt, 8 1/4 x 11
3.68
7.36
6
00P01
16
HHCS 1/2-13 UNC x 1-1/2 Gr8
0.21
3.36
7 00P13 4 HHCS 3/8-16 UNC x 1-1/4 Gr8 0.10 0.40
8
00P14
4
Nut, Hex 3/8-16 UNC Gr8
0.02
0.08
9
00P15
26
HHCS 1/2-13 UNC x 1-3/4 Gr8
0.20
5.20
10
00P19
3
HHCS 5/16-18 UNC x 2-3/4
0.02
0.06
11
00P20
3
Nut, Hex 5/16-18 UNC
0.10
0.30
12
00P35
42
Nut, Lock 1/2-13 UNC
0.05
2.10
13
00P56
4
HHCS 5/8-11 UNCS x 1-1/2
0.18
0.72
14
01P31
4
Washer, Lock, Disc 5/8 Pr
0.03
0
.12
15
10P28
2
HHCS 5-16 x 1-1/4
0.03
0.06
16
10P29
2
Cover Plate, Clamp 7/8
0.10
0.20
17
10P30
2
Clamp Assy, Twin, 1/2"
0.04
0.08
18
00752
3
Washer, Lock - 5/16 Dia
0.03
0.09
19 00755 4 Washer, Lock - 3/8 Dia 0.03 0.12
20
00784
42
Washer, Flat - 1/2 Dia HT
0.01
0.50
*
Item not shown.
DISC-LOCK WASHER
TORQUE SPECS
BOLT
SIZE
SAE GR 8
ASS’Y TORQUE
(FT-LBS)
3/8
50
7/16
80
1/2
120
5/8
230
3/4
380
7/8
400
1
400
5-7
