swaploader SL-212 - Page 47

Section II: Installation - Accessories
2.8.INS.ACC.10H90

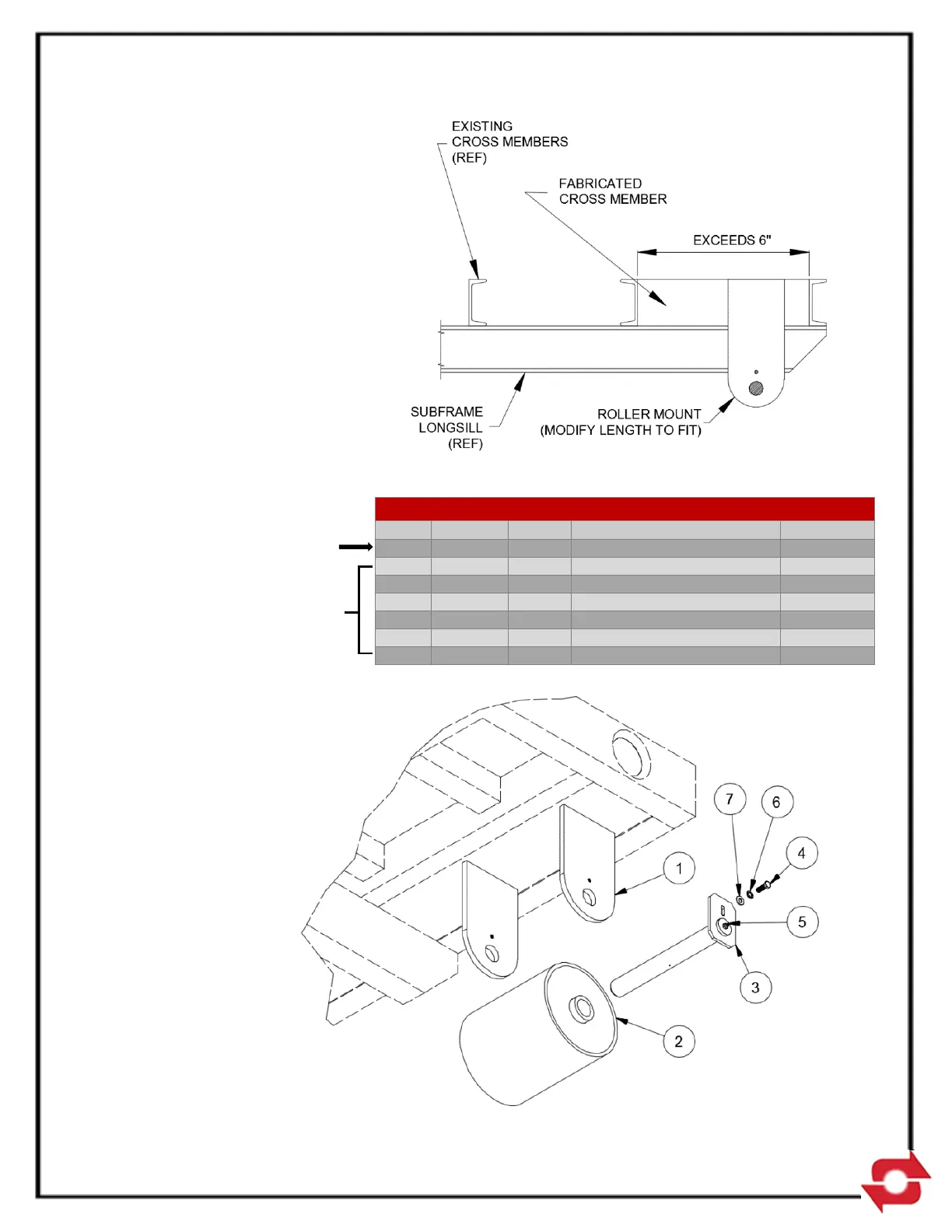

4. Once the mount brackets are
located on the container, weld
the roller mount brackets in
place (see Fig. A).
5. Install the roller [Pt. No. 10H12]
between the brackets with the
roller axle [Pt. No. 10H31] and
the fasteners provided (see Fig.
C). Grease the rollers before
use.
10H91
10H90
Figure
B
Figure
C
MATERIAL LIST FOR 10H90 AND 10H91
ITEM
PART #
QTY
DESCRIPTION
WT
-
lb/ea.
1 32H03 4 Roller Ear 11.95
2 10H12 2 Roller Wdmt. 39.76
3 10H31 2 Roller Axle Wdmt. 7.28
4 00P62 2 3/8-16 UNC x 1 Bolt .05
5 90P03 2 1/8 NPT Grease Zerk .01
6 00755 2 3/8 Dia. Lock Washer .01
7 00P36 2 3/8 Dia. Washer H.T. .10
