Section II: Installation - Accessories
2.9.INS.ACC.10H92
INSTALLATION INSTRUCTIONS – TOOLBOX
1. Review all directions and
diagrams provided before
starting toolbox installation.
2. Position toolbox brackets
[Pt. No. 10H88] on truck
chassis (NOTE: toolbox has
an envelope of 18”x18”x36”.
see Fig. A for hole
dimensions).
3. Mark position of mounting
holes through brackets onto
truck chassis. Remove
brackets and drill 9/16” dia.
holes.
4. Mount toolbox brackets
using fasteners provided (see
Fig. A).
5. Position
toolbox [Pt.
No. 90P27 or 90P37] on
brackets. (NOTE: toolbox
hinge should be on the
forward, bottom edge).
6. Mark position of mounting holes
through brackets onto toolbox.
Remove toolbox and drill 9/16” dia. holes.
7. Mount toolbox to brackets using fasteners provided (see Fig. A).
MATERIAL LIST FOR 10H92 OR 11H12
ITEM
PART #
QTY
DESCRIPTION
WT
-
lb/ea.
1
10H88
2
18” Toolbox Bracket
11.34
2
22H71
2
Toolbox Rubber Spacer
.27
3
90P27
1
Aluminum Toolbox
50.00
3
90P37
1
Steel Toolbox
72.00
4
00
784
8
1/2 Dia. Flat Head Washer
.07
5
00P15
4
1/2
-
13 UNC x 1
-
3/4
.23
6
00P35
8
1/2
-
13 UNC
Lock Nut
.15
7
00P75
4
1/2
-
13 UNC x
1
-
1/2
.12
8
00P76
2
1/2 Dia. Nylon Flat Washer
-
Note:
 Will include either (1) 90P27 aluminum toolbox or (1) 90P37 steel
toolbox depending on order.
 Installation is the same for both aluminum and steel toolbox.
 Toolbox dimensions are 18” x 18” x 36”.

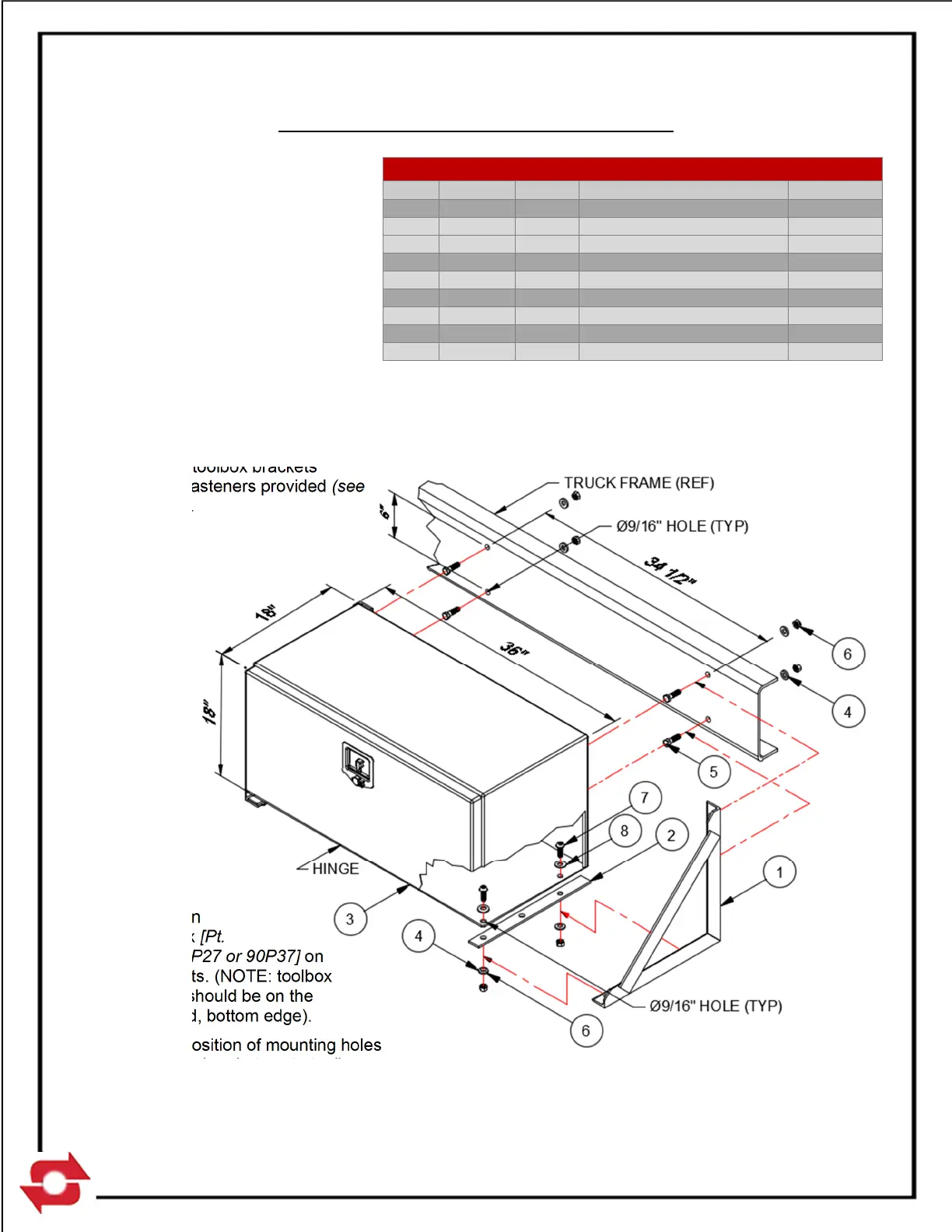

Figure
A
