Section III: Operation
CHANGING HOOK HEIGHT: 36” to 54” Jib Height Adjustment Procedure
CAUTION:
THE FOLLOWING IS THE RECOMMENDED PROCEDURE FOR CHANGING HOOK HEIGHTS ON THE
ADJUSTABLE JIB FROM 36” TO 54” HEIGHTS. FAILURE TO FOLLOW AND ADHERE TO THIS
PROCEDURE MAY RESULT IN POSSIBLE PROPERTY DAMAGE AND/OR PERSONAL INJURY.
MAKE SURE WORK AREA IS CLEAR OF PEOPLE AND OBSTACLES PRIOR TO CHANGING THE
HOOK HEIGHT ON THE ADJUSTABLE JIB.

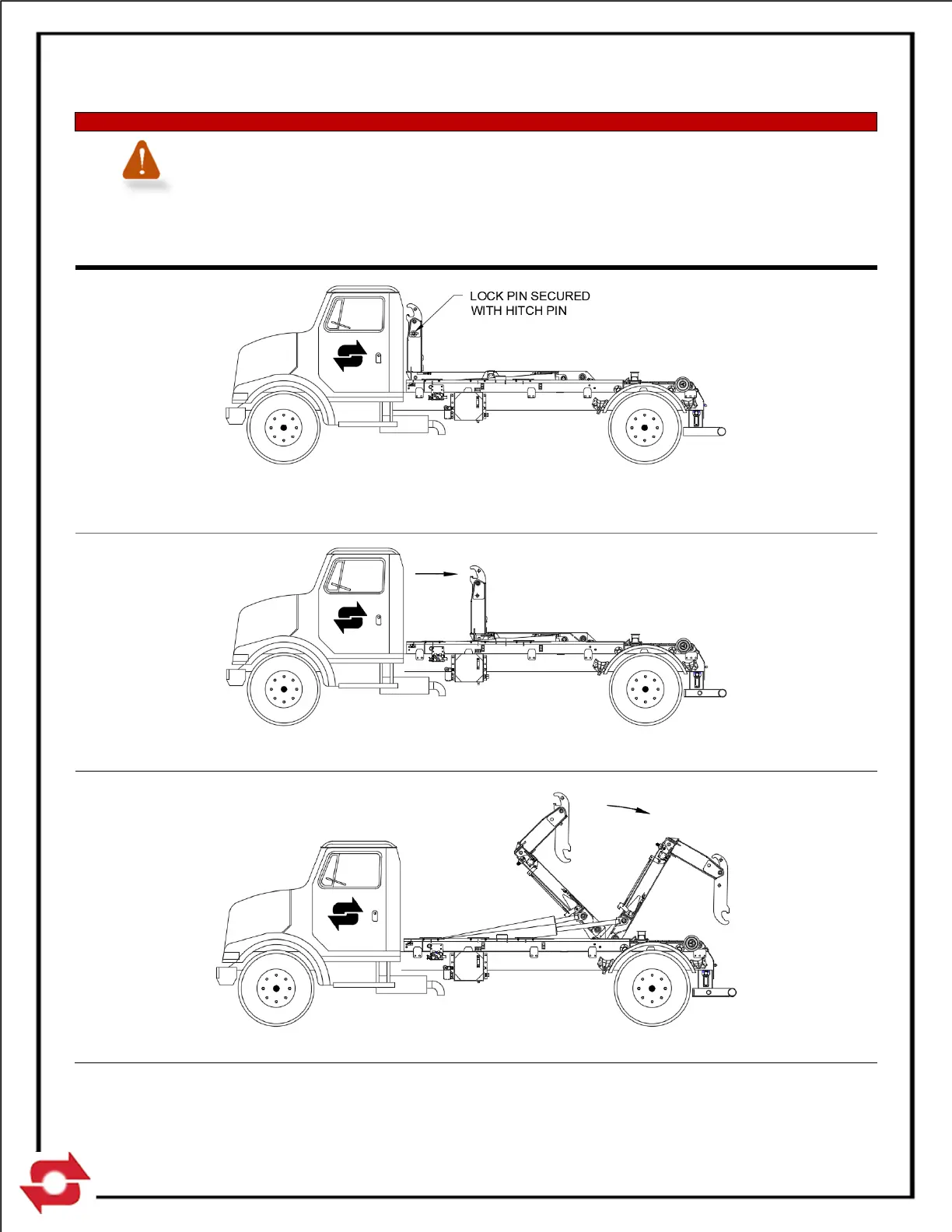

STEP 1. With the telescopic arm in the transport position (as shown); remove the hitch pin from the lock
pin. Then pull the lock pin loose from the jib arm.
STEP 2. Retract the jib (right control lever backward).
STEP 3. Tilt the telescopic arm rearward (left control lever backward).
To Next Page
