Section III: Operation
3.0.OPE.SL-212
CHANGING HOOK HEIGHT: 36” to 54” Jib Height Adjustment Procedure

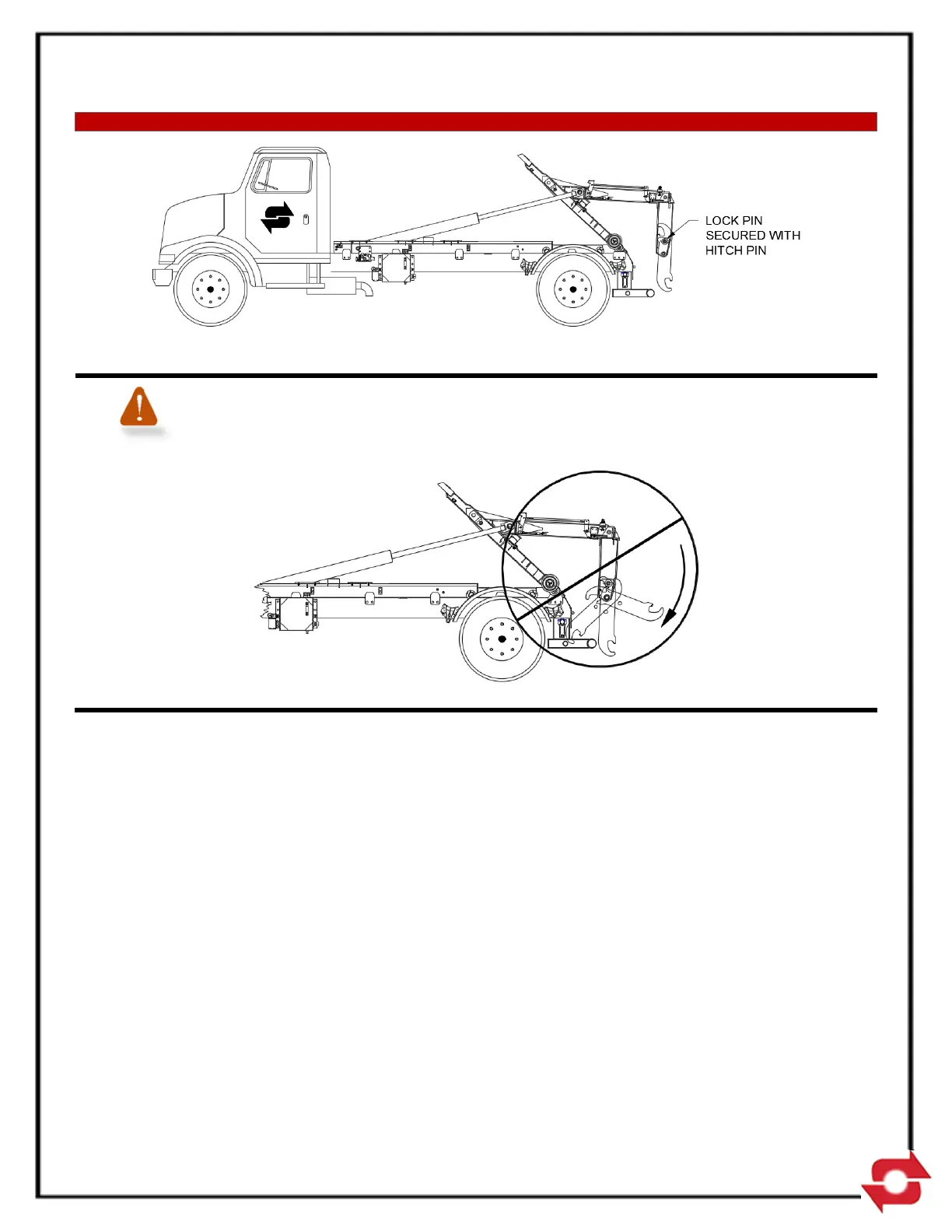

STEP 4. Continue to tilt telescopic arm rearward until the dump cylinders are fully extended. Replace lock
pin and secure with hitch pin.
WARNING:
DO NOT REMOVE LOCK PIN ON THE ADJUSTABLE JIB WHILE JIB IS IN THE 36” HOOK POSITION
AND THE TELESCOPIC ARM IS TILTED REARWARD (AS SHOWN). POSSIBLE PROPERTY DAMAGE
AND/OR PERSONAL INJURY MAY RESULT.
To Next Page
