swaploader SL-212 - Page 70

Section V: Parts
5.0.PAR.SL
-
212

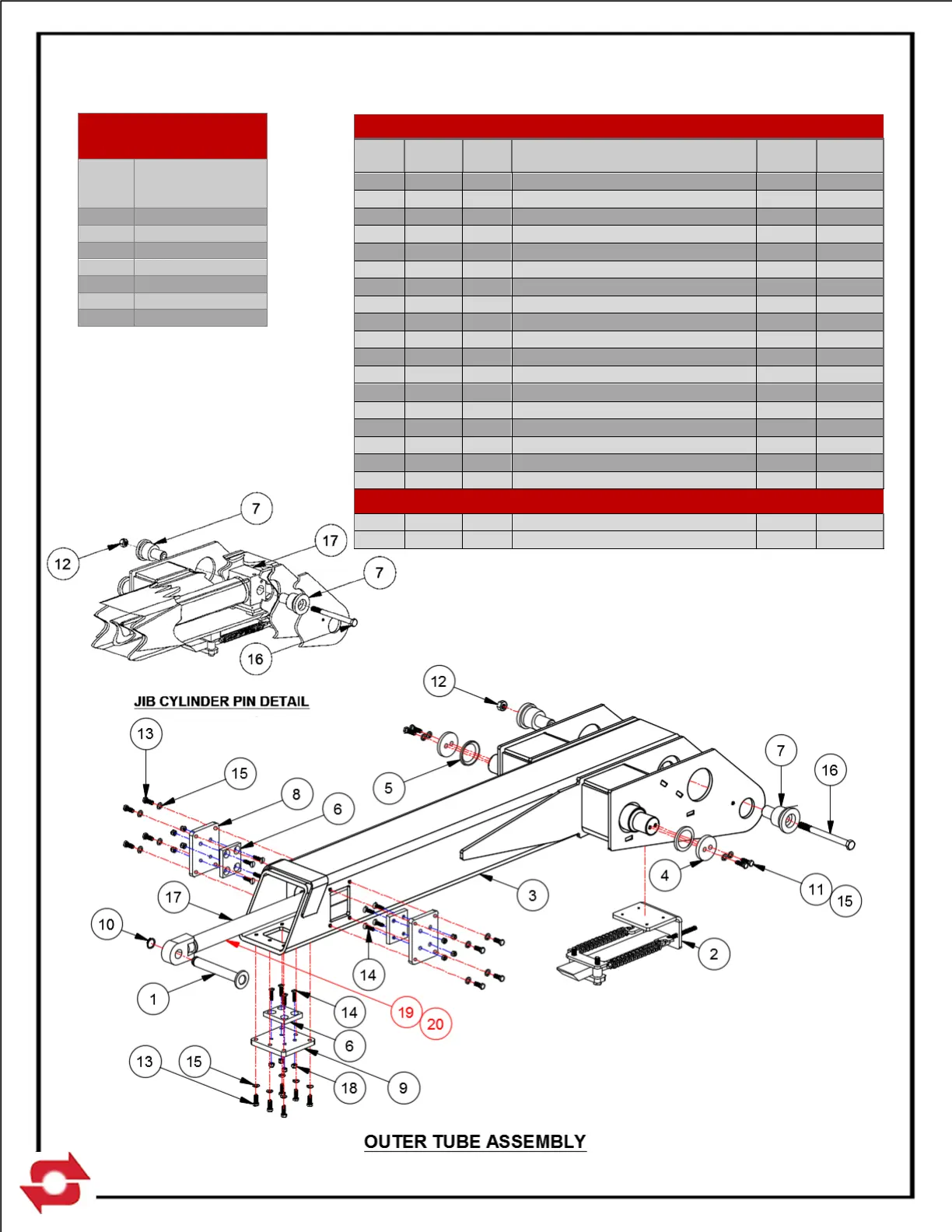

13H05 – OUTER TUBE SUB-ASSEMBLY SL-212
ITEM
PART
#
QTY DESCRIPTION
WT-
lb/ea.
WT-
lb/all
1 10H08 1
Pin, Jib/Cyl 1 x 6-3/4
1.70 1.70
2 13H06 1 Pivot Lock Assembly 19.15 19.15
3 13H15 1
Outer Tube Weldment
308.30 308.30
4 20H19 2
Pin Cap, 3/8 x 2-3/4
0.60 1.20
5 20H21 2
Spacer, 3/8 x 2-3/4OD
0.20 0.40
6 23H54 3
Wear Pad, 2-3/4x1/2x3-1/4
0.19 0.57
7 24H68 2
Pin, OT/Cyl 1-1/4 x 1-7/8
2.40 4.80
8 25H71 2
Jib Clamp, Outer
2.83 5.66
9 26H68 1
Jib Clamp, Under
3.54 3.54
10 00P05 1
Snap Ring, Ext 1 Shaft
0.01 0.01
11 00P13 4
HHCS 3/8-16 UNC x 1-1/4 Gr8
0.10 0.40
12 00P55 1
Nut, Lock 5/8-11 UNC Gr8
0.13 0.13
13 00P62 14
HHCS 3/8-16 UNC x 1 Gr8
0.05 0.70
14 01P16 12 FHCS 5/16-18 UNF x 1-1/4 Brass 0.03 0.36
15 01P28 18
Washer, Lock, Disc 3/8 Pr
0.01 0.18
16 01P43 1
HHCS 5/8-11 UNC x 7-1/2 Gr8
0.75 0.75
17 20P51 1
Hyd. Cylinder 3 x 1.75 x 32
86.00 86.00
18 23001 12
Nut, Nylock 5/16
0.01 0.12
SERVICE PARTS FOR JIB CYLINDER 20P51
19 20P28 1
C’Bal Cart, 3000 PSI CBCA-LHN
0.40 0.40
20 20P89 1
Seal Kit, Cyl (20P51)
0.10 0.10
DISC-LOCK WASHER
TORQUE SPECS
BOLT
SIZE
SAE GR 8
ASS’Y TORQUE
(FT-LBS)
3/8
50
7/16
80
1/2
120
5/8
230
3/4
380
7/8
400
1
400
5-4
